Reduced price! Camden CM-RQE70 PIR Request to Exit Detector

View larger

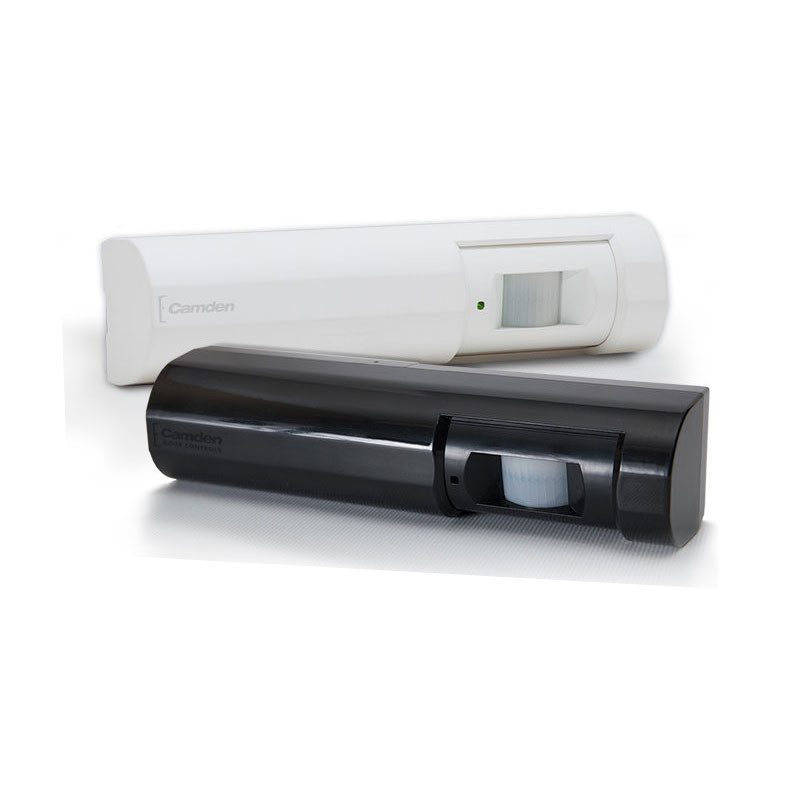

Camden CM-RQE70 PIR Request to Exit Detector

Model: CM-

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Camden CM-RQE70 PIR Request to Exit Detector

Camden CM-RQE70 PIR Request to Exit Detector

Camden Door Controls, CM-RQE70 PIR 'REQUEST TO EXIT' Detectors provide the latest word in design, with a complete list of "high performance" features, including secondary activation device input, door monitoring, two relay outputs, and tamper alarm. Many new programming, installation, and set-up features that have never previously been available. Camden started by making the CM-RQE70 smaller, so it can easily fit on door frames, and then made installing the detector faster and easier. CM-RQE70 comes with 4 factory default operating modes that can be selected with simple push buttons on the circuit board.

Features:

Compact size, designed to mount on door frames
Easy to use on-board programming buttons. No dip switches
(4) Factory default operating modes, with the ability to customize mode attributes
Plug-in wiring harness, makes installation easy and fast
Selectable fail safe/fail secure
(2) Form 'C' contacts
Momentary and latching relay modes
Secondary activation device input
Card/keypad input
Door position switch input
Request to Exit input
Built-in sounder (adjustable)
Tamper switch

Specifications:

Voltage: 12 /24V DC Operation
Current Draw: 50Ma (Max)
Relays: (2) Form 'C' (DPDT)
Contact Rating: 3A @ 30V DC
Programming: On-board push buttons and status LED
Modes: (4) Factory Default
: (1) Fully Custom
: Selectable Fail Safe/Fail Secure
Coverage: Max. 10' W × 10' H
: Horizontal and Vertical Adjustment (Mechanical)
: Sensor Sensitivity/Range (Electronic)
Time Delay: Adjustable, 5, 15, 30, 45 & 60 second
Sounder: ON/OFF, with Adjustable Volume
Piezo Buzzer: 92db.@ 10cm
Indicator: Activation LED
Card or Keypad Input: (1) N/O
Door Position Switch Input: (1) N/O
Request to Exit Input: (1) N/O
Tamper Switch Contact Rating: 50Ma 12V DC
Temp Operating Range: 32°F-120°F (0-50°C)
Humidity Range: 0- 93% Non-Condensing
Dimensions: 7"L × 1 3/4"D × 1 3/4"H
: (176mm × 43mm × 43mm)
Weight: 0.25 Lbs. (0.12KG.)
Colors: White or Black Models

Camden Door Controls Warranty

Camden Special Purpose Product Comparison Chart

DESCRIPTION	CAMDEN	RCI	SECURITRON	SCHLAGE	SDC	DYNALOCK	ROFU	ALARM CONTROLS
Blue Pull Station	CM-701 CM-702	904	N/A	N/A	492	N/A	N/A	N/A
Remote Release Switch SPDT Momentary	CM-830 CM-850	909	PB3ER	660	15-2	6336	1010	TS-18
Request to Exit Sensor	CM-RQE70	915	XMS	SCAN11	MD-31D	N/A	DS-150i	SREX-100
Power Transfer Cable – 12"/18"	CM-PTS14	9507-12S	TSB	788/12	PT-2V	9300	10318	DL-1
Heavy Duty Power Transfer Cable – 12"	CM-PT14	9508	N/A	N/A	PT-3V	N/A	N/A	DL-2
Concealed Heavy Duty Power Transfer Cable	CM-PT516M	9512	EPT	N/A	PT-5	N/A	N/A	N/A
Power Supply 1 Amp. Output, UL Listed	CX-PS1OUL	10-175UL	BPS-24-1	PS902	602RF	5025	9175	N/A
Power Supply 3 Amp. Output, UL Listed	CX-PS3OUL	10-5-24VDC	BPS-12-3	PS904	634RF	5500/FAC	N/A	N/A
Time Delay 1-30sec 12/24V AC/DC 2AMP. SPDT	CX-1000/74	N/A	TM-9	N/A	10TD	7080	N/A	MT-1
Time Delay 1sec-4hrs 12/24V DC 5AMP. SPDT	CX-1000/77	N/A	TM-2	N/A	N/A	N/A	N/A	UT-1
Timer 7 Day 8 Event 12V AC/DC or 24V AC/DC	CX-247	N/A	DT-7	N/A	14-2	7086	N/A	T-7P
