  5. Corbin Russwin ML2000 Series Mortise Locksets w/ Museo Lever & VN Escutcheon Status Indicator
Reduced price! Corbin Russwin ML2000 Series Mortise Locksets w/ Museo Lever & VN Escutcheon Status Indicator View larger

Corbin Russwin

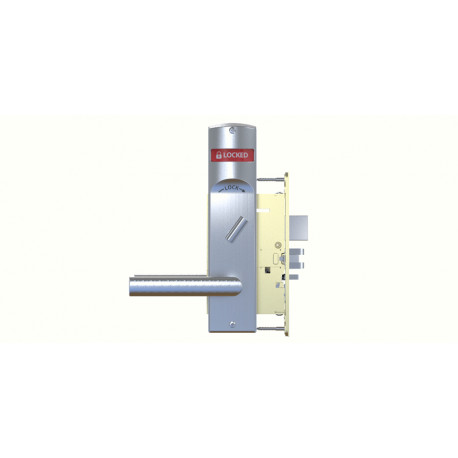

Corbin Russwin ML2000 Series Mortise Locksets w/ Museo Lever & VN Escutcheon Status Indicator

ML20

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$959.37

40% Off

$1,598.95

?

Details: Corbin Russwin ML2000 Series Mortise Locksets w/ Museo Lever & VN Escutcheon Status Indicator

The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Constructed of heavy-gauge steel, the lockbody features our patented Quick Reversible latchbolt, and a 1" stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.

Security

Further discourage intrusion and abuse with the ML2000VR (Vandal Resistant) Series mortise lock featuring vandal-resistant stainless steel escutcheons with tapered edges and Torx pin tamper resistant screws. When matched with Corbin Russwin patented high-security Pyramid or Access 3 cylinders, any door can become a formidable barrier to intruders.

Multi-Function Capability

The ML2054 provides a multi-function lockbody that offers the ability to reconfigure a select group of functions without dissembling the lock case and only using a few additional parts. This multi-function feature enables flexibility and optimizes stocking capability.

Aesthetics

Complement any application with the full range of trim designs and finishes offered with ML2000 Series. From stainless steel security trims to bright brass Vineyard levers, design continuum can be achieved without forfeiting aesthetics. For additional information regarding designer trim, see the Corbin Russwin Vineyard Collection and Museo Collection catalogs.

Key Advantages

  • Patented Quick Reversible feature enables reversal of hands without disassembling the lock case
  • Security trims provide a vandal-resistant barrier
  • Multi-function lockbody, allowing 12 functions to be configured from one lockbody
  • Can be used with new or existing Corbin Russwin key systems, including patented high-security Access 3 cylinders.
  • Accepts cylinders of most other manufacturers.
  • Provides life safety and security in a single door prep, saving the additional cost of a deadlock
  • Through-bolted trim designs for proper alignment and increased security

Downloads

Corbin Russwin ML2000 Series Mortise Lock

Installing Sectional Museo Lever Trim on the ML2000 Series Mortise Lock - Technical Product Support

Installing Sectional Museo Lever Trim on the ML2000 Series Mortise Lock - Technical Product Support from ASSA ABLOY on Vimeo.

Installing the ML2000 Series Mortise Lock with Sectional Rose Trim - Technical Product Support

Installing the ML2000 Series Mortise Lock with Sectional Rose Trim - Technical Product Support from ASSA ABLOY on Vimeo.

Available Model Numbers and Combinations

Model/SKUAttributes
ML2010114WSPRHRV40EMC Non-Keyed - Passage, White Suede Powder Coat, Right Hand Reverse, Single Indicator Outside - Unlocked/Locked - White/Red, Engraving Both Sides with "Lock" and Directional Arrow
ML2010133BSPLHV11EMB Non-Keyed - Passage, Black Suede Powder Coat, Left Hand, Double Indicator - Unlocked/Locked - Green/Red (Outside) Unlocked/Locked - Green/Red (Inside), Inside Engraving with "Lock" and Directional Arrow
ML2020119606RHRV30 Non-Keyed - Privacy Bedroom or Bathroom (Non-Panic release), Satin Brass,Clear Coated, Right Hand Reverse, Single Indicator Outside - Icons Only - Green/Red, Not Included
ML2020116612RHV04EMC Non-Keyed - Privacy Bedroom or Bathroom (Non-Panic release), Satin Bronze,Clear Coated, Right Hand, Single Indicator Inside - Unlocked/Locked - White/Red, Engraving Both Sides with "Lock" and Directional Arrow
ML2010149611RHRV11EMC Non-Keyed - Passage, Bright Bronze,Clear Coated, Right Hand Reverse, Double Indicator - Unlocked/Locked - Green/Red (Outside) Unlocked/Locked - Green/Red (Inside), Engraving Both Sides with "Lock" and Directional Arrow
ML2020102606RHRV06EMB Non-Keyed - Privacy Bedroom or Bathroom (Non-Panic release), Satin Brass,Clear Coated, Right Hand Reverse, Single Indicator Inside - Icons Only - White/Red, Inside Engraving with "Lock" and Directional Arrow
ML2020108WSPLHV10EMA Non-Keyed - Privacy Bedroom or Bathroom (Non-Panic release), White Suede Powder Coat, Left Hand, Single Indicator Outside - Unlocked/Locked - Green/Red, Outside Engraving with "Lock" and Directional Arrow
ML2020110625V21EMB Non-Keyed - Privacy Bedroom or Bathroom (Non-Panic release), Bright Chromium Plated, Non-Handed, Double Indicator - Vacant/Occupied - Green/Red (Outside) Unlocked/Locked - Green/Red (Inside), Inside Engraving with "Lock" and Directional Arrow
ML2020116612LHRV60EMB Non-Keyed - Privacy Bedroom or Bathroom (Non-Panic release), Satin Bronze,Clear Coated, Left Hand Reverse, Single Indicator Outside - Icons Only - White/Red, Inside Engraving with "Lock" and Directional Arrow
ML2020133BSPLHV21EMB Non-Keyed - Privacy Bedroom or Bathroom (Non-Panic release), Black Suede Powder Coat, Left Hand, Double Indicator - Vacant/Occupied - Green/Red (Outside) Unlocked/Locked - Green/Red (Inside), Inside Engraving with "Lock" and Directional Arrow
ML2020147629RHV60EMC Non-Keyed - Privacy Bedroom or Bathroom (Non-Panic release), Bright Stainless Steel, Right Hand, Single Indicator Outside - Icons Only - White/Red, Engraving Both Sides with "Lock" and Directional Arrow
ML2030119606RHRV11EMA Non-Keyed - Privacy Bedroom or Bathroom, Satin Brass,Clear Coated, Right Hand Reverse, Double Indicator - Unlocked/Locked - Green/Red (Outside) Unlocked/Locked - Green/Red (Inside), Outside Engraving with "Lock" and Directional Arrow
ML2010101618LHRV21 Non-Keyed - Passage, Bright Nickel Plated, Left Hand Reverse, Double Indicator - Vacant/Occupied - Green/Red (Outside) Unlocked/Locked - Green/Red (Inside), Not Included
ML2010126613RHV66EMA Non-Keyed - Passage, Dark Oxidized Satin Bronze,Oil Rubbed, Right Hand, Double Indicator - Icons Only - White/Red (Outside) Icons Only - White/Red (Inside), Outside Engraving with "Lock" and Directional Arrow
ML2010106722RHRV11EMB Non-Keyed - Passage, Black Oxidized Bronze,Oil Rubbed, Right Hand Reverse, Double Indicator - Unlocked/Locked - Green/Red (Outside) Unlocked/Locked - Green/Red (Inside), Inside Engraving with "Lock" and Directional Arrow

View All Model Numbers and Options
