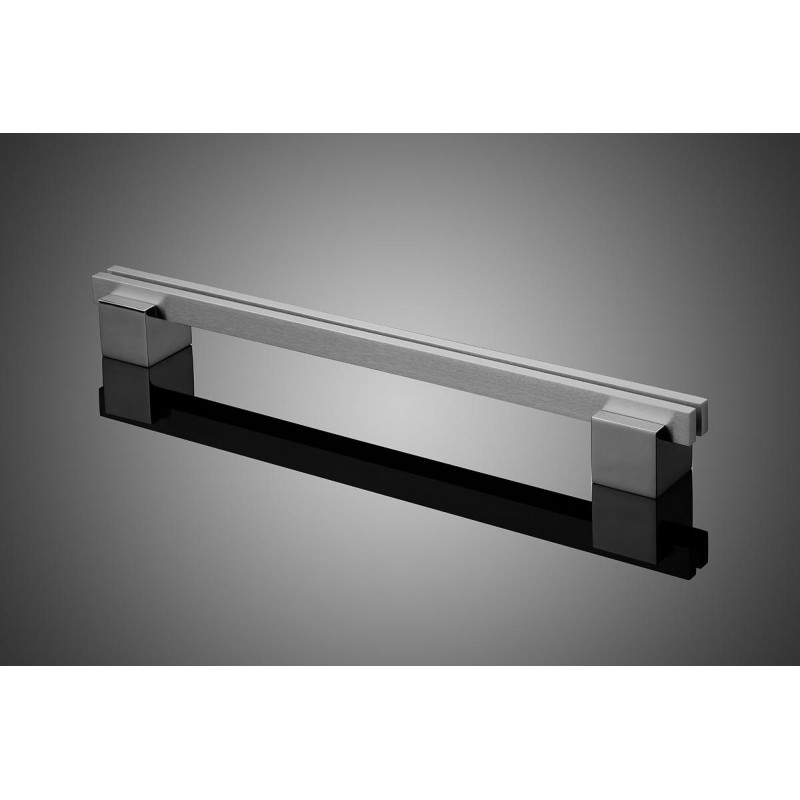

Forms+Surfaces Modular Series DP6123 Configurable Door Pull

Model:

Write a review

Item normally ships out within 3-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Forms+Surfaces Modular Series DP6123 Configurable Door Pull

Modular Door Pulls offer clean lines, crisp detailing and stunning metal and finish combinations.

Features

Refer to the Product Product Data Sheet below for design, size, material and finish options
Pulls consist of two basic elements grips and standoffs
Grips and standoffs may be specified in contrasting or matching metals and finishes
Material options include stainless steel, brass and anodized aluminum
Numerous shape, size and configuration options expand the ways to create custom-looking door pulll designs
Suitable for interior or exterior use
Compatible with Forms+Surfaces doors or for use as a handrail in our LEVELc and LEVELe elevator interiors

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Forms-Surfaces Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
DP6123-12-US4(GRIP)-US32(STANDOFF)-C5	12" (305mm) c.c., Satin Brass, Polished Stainless Steel, C5 - Single mount on wood or metal door with through bolt.
DP6123-18-US4(GRIP)-US32D(STANDOFF)-C2	18" (457mm) c.c., Satin Brass, Satin Stainless Steel, C2 - Concealed single mount on aluminum frame door with shoulder bolt and customer's reinforcement.
DP6123-24-US4(GRIP)-US32(STANDOFF)-C1	24" (610mm) c.c., Satin Brass, Polished Stainless Steel, C1 - Back-to-back mount on wood or metal door with shoulder bolt.
DP6123-18-US4(GRIP)-US32D(STANDOFF)-C3	18" (457mm) c.c., Satin Brass, Satin Stainless Steel, C3 - Concealed single mount on wood door with shoulder bolt and threaded insert.
DP6123-12-US4(GRIP)-US32(STANDOFF)-C1	12" (305mm) c.c., Satin Brass, Polished Stainless Steel, C1 - Back-to-back mount on wood or metal door with shoulder bolt.
DP6123-24-US4(GRIP)-US32(STANDOFF)-C2	24" (610mm) c.c., Satin Brass, Polished Stainless Steel, C2 - Concealed single mount on aluminum frame door with shoulder bolt and customer's reinforcement.
DP6123-18-US4(GRIP)-US32D(STANDOFF)-C4	18" (457mm) c.c., Satin Brass, Satin Stainless Steel, C4 - Back-to-back mount on glass door with shoulder bolt.
DP6123-12-US4(GRIP)-US32(STANDOFF)-C2	12" (305mm) c.c., Satin Brass, Polished Stainless Steel, C2 - Concealed single mount on aluminum frame door with shoulder bolt and customer's reinforcement.
DP6123-18-US4(GRIP)-US3(STANDOFF)-C5	18" (457mm) c.c., Satin Brass, Polished Brass, C5 - Single mount on wood or metal door with through bolt.
DP6123-24-US4(GRIP)-US32(STANDOFF)-C3	24" (610mm) c.c., Satin Brass, Polished Stainless Steel, C3 - Concealed single mount on wood door with shoulder bolt and threaded insert.
DP6123-12-US4(GRIP)-US32(STANDOFF)-C3	12" (305mm) c.c., Satin Brass, Polished Stainless Steel, C3 - Concealed single mount on wood door with shoulder bolt and threaded insert.
DP6123-18-US4(GRIP)-US3(STANDOFF)-C1	18" (457mm) c.c., Satin Brass, Polished Brass, C1 - Back-to-back mount on wood or metal door with shoulder bolt.
DP6123-24-US4(GRIP)-US32(STANDOFF)-C4	24" (610mm) c.c., Satin Brass, Polished Stainless Steel, C4 - Back-to-back mount on glass door with shoulder bolt.
DP6123-18-US4(GRIP)-US3(STANDOFF)-C2	18" (457mm) c.c., Satin Brass, Polished Brass, C2 - Concealed single mount on aluminum frame door with shoulder bolt and customer's reinforcement.
DP6123-12-US4(GRIP)-US32(STANDOFF)-C4	12" (305mm) c.c., Satin Brass, Polished Stainless Steel, C4 - Back-to-back mount on glass door with shoulder bolt.
