Codelocks Functions

CL200 Surface Deadbolt

• The bolt slides on the inside surface of the door to lock or unlock. The bolt is moved manually be means of the outside knob after the code is entered, and freely by the inside knob at all times.

CL200 Surface Deadbolt with Key Override

• The bolt slides on the inside surface of the door to lock or unlock. The bolt is moved manually be means of the outside knob after the code is entered, and freely by the inside knob at all times.

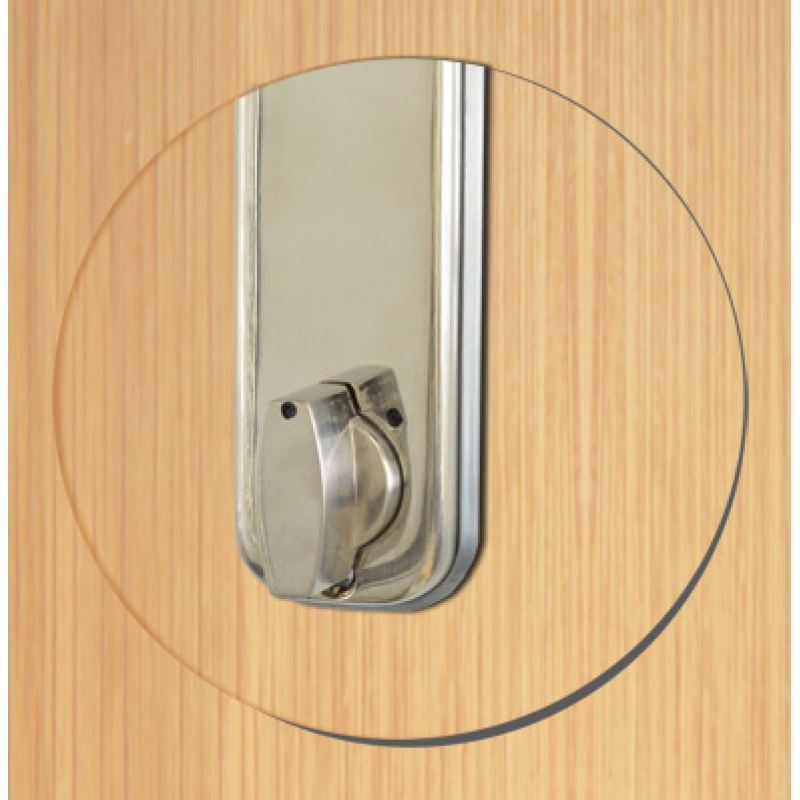

CL210 Mortise Deadbolt

• The bolt is moved manually by means of the outside knob after the code has been entered, and freely by the inside knob at all times.

CL210 Mortise Deadbolt With Key Override

• The bolt is moved manually by means of the outside knob after the code has been entered, and freely by the inside knob at all times.

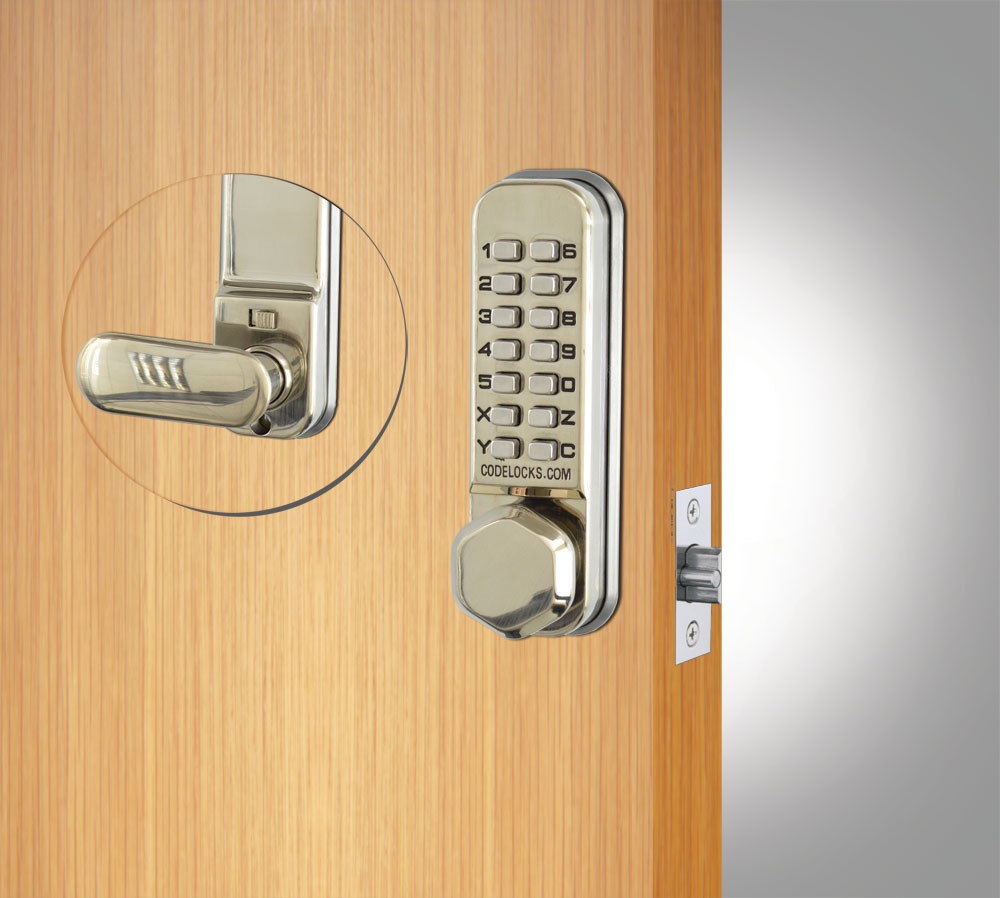

CL250 Tubular Mortise Deadlatch

• The latch is spring loaded and will lock automatically when the door is closed. The latch bolt has a deadlocking plunger feature to prevent unlawful shimming of the latch.

CL250 Tubular Mortise Deadlatch With Key Override

• The latch is spring loaded and will lock automatically when the door is closed. The latch bolt has a deadlocking plunger feature to prevent unlawful shimming of the latch.

CL255 Mortise Latch

• The latch is spring loaded and will lock automatically when the door is closed.
• The latch bolt has a deadlocking plunger feature to prevent unlawful shimming of the latch.
• The lock has a slide button which can be used to hold open the latchbolt for free entry without operating the code (when the lock is not required to be operational).
• Function can be disabled on installation requiring code to be entered every time to open door.

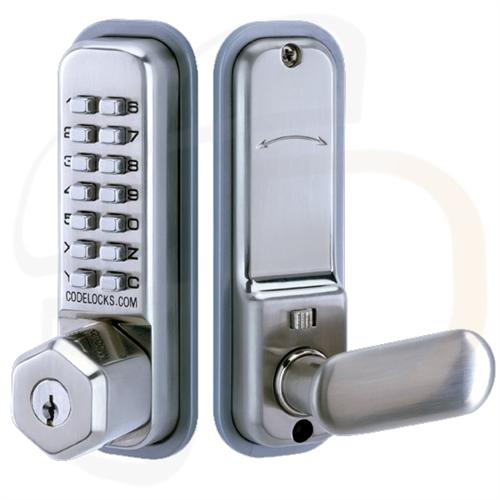

CL255 Mortise Latch With Key Override

• The latch is spring loaded and will lock automatically when the door is closed.
• The latch bolt has a deadlocking plunger feature to prevent unlawful shimming of the latch.
• The lock has a slide button which can be used to hold open the latchbolt for free entry without operating the code (when the lock is not required to be operational).
• Function can be disabled on installation requiring code to be entered every time to open door.

CL290 Mortise Latch Back To Back

• The latch is spring loaded and will lock automatically when the door is closed.
• The latch bolt has a deadlocking plunger feature to prevent unlawful shimming of the latch.
• The lock comes with two code plates, installed back to back, to provide coded access in both directions.

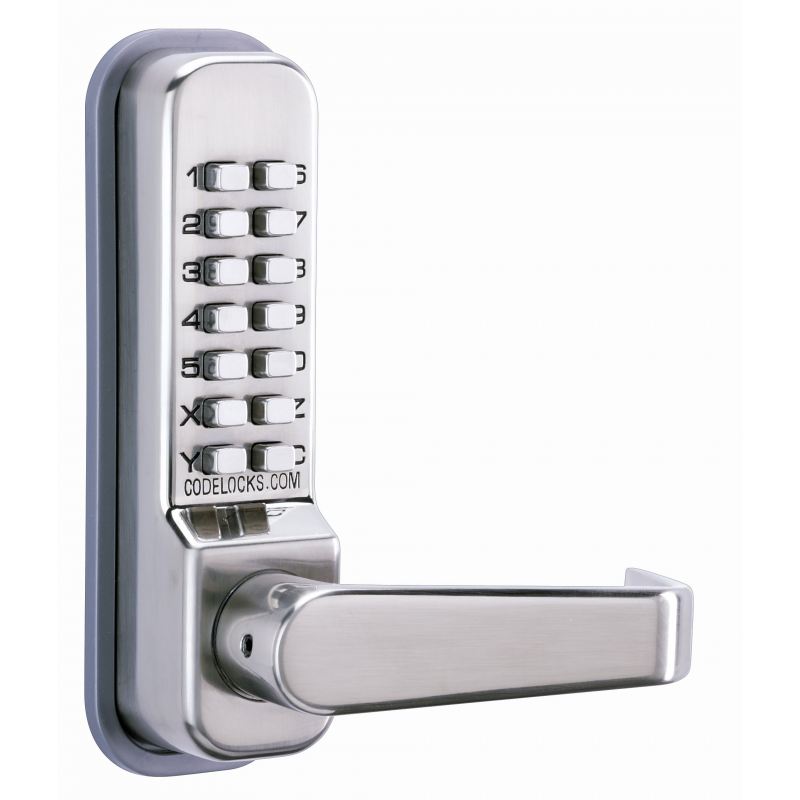

CL410 Tubular Mortise Latch

• The outside lever handle will retract the latch after a correct code is entered.
• The spring loaded latchbolt will lock automatically when the door is closed.

CL410 Tubular Mortise Latch Back To Back

• The outside lever handle will retract the latch after a correct code is entered.
• The spring loaded latchbolt will lock automatically when the door is closed.

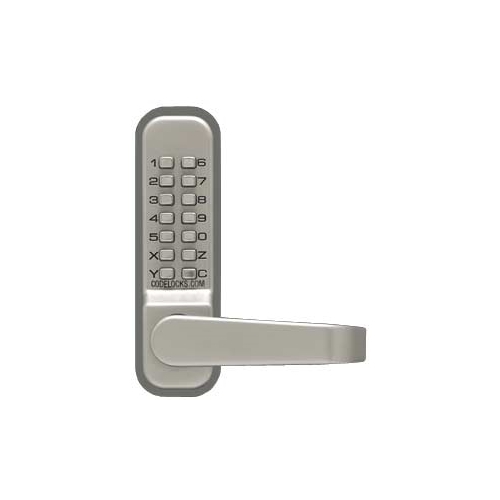

CL415 Tubular Mortise Latch With Code Free Option

• The outside lever handle will retract the latch after a correct code is entered.
• The spring loaded latchbolt will lock automatically when the door is closed.

CL415BB Tubular Mortise With Code Free

• The outside lever handle will retract the latch after a correct code is entered.
• The spring loaded latchbolt will lock automatically when the door is closed.

CL510 Heavy Duty Tubular Mortise Latch

• The outside lever handle will retract the latch after a correct code is entered.
• The spring loaded latchbolt will lock automatically when the door is closed.

CL510 Heavy Duty Tubular Mortise Latch Back To Back

• The outside lever handle will retract the latch after a correct code is entered.
• The spring loaded latchbolt will lock automatically when the door is closed.

CL515 Tubular Mortise Latch With Code Free Entry Option

• The outside lever handle will retract the latch after a correct code is entered.
• The spring loaded latchbolt will lock automatically when the door is closed.

CL515 Tubular Mortise Latch, Back To Back With Code Free Entry Option

• The outside lever handle will retract the latch after a correct code is entered.
• The spring loaded latchbolt will lock automatically when the door is closed.

CL610 Tubular Mortise Latch

• The outside lever handle will retract the latch after a correct code is entered.
• The spring loaded latchbolt will lock automatically when the door is closed.

CL610 Tubular Mortise Latch Back To Back L200 Surface Deadbolt with Key Override

• The outside lever handle will retract the latch after a correct code is entered.
• The spring loaded latchbolt will lock automatically when the door is closed.

CL615 Tubular Mortise Latch with Code Free option

• The CL615 is a heavy duty tubular mortise latch with Code Free entry option.
• The outside lever handle will retract the latch after a correct code is entered.
• The spring loaded latchbolt will lock automatically when the door is closed.

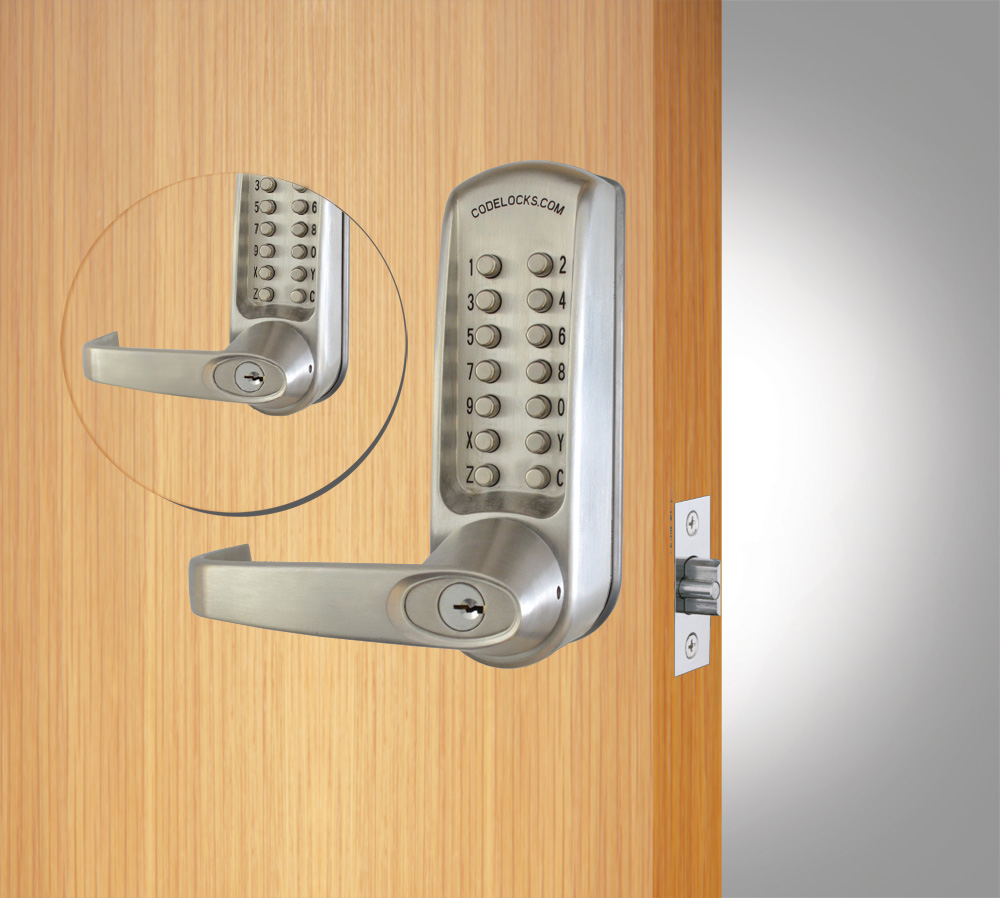

CL615 Tubular Mortise Latch, Back To Back With Code Free Option

• The CL615 BB is a heavy duty tubular mortise latch back to back to provide coded access in both directions with Code Free entry option.
• The outside lever handle will retract the latch after a correct code is entered.
• The spring loaded latchbolt will lock automatically when the door is closed.

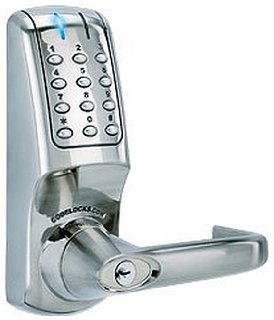

CL4210 Tubular Dead Latch

• The outside lever turns freely without operating the latchbolt.
• When a valid code is entered and the blue LED lights, the lever will retract the latchbolt.
• When the door closes the spring latch will automatically lock the door.
• The key will open the door for management functions.
• The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code.
• Code Free Mode can also be programmed at the keypad using the Master Code.

CL5210 Tubular Dead Latch

• The outside lever turns freely without operating the latchbolt.
• When a valid code is entered and the blue LED lights, the lever will retract the latchbolt.
• When the door closes the spring latch will automatically lock the door.
• The key will open the door for management functions.
• The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code.
• Code Free Mode can also be programmed at the keypad using the Master Code.

CL6000 Heavy Duty Electronic Cylindrical Mortise Latch

• The outside lever turns freely without operating the latchbolt.
• When a valid code is entered and the blue LED lights, the lever will retract the latchbolt.
• When the door closes the spring latch will automatically lock the door.
• The key will open the door for management functions.
• The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code.
• Code Free Mode can also be programmed at the keypad using the Master Code.
• The lock can store up to 80 different User Codes. Codes may be 4, 5 or 6 digits long.

Programming is via the keypad, using the Master Code. The lock has fitted as standard two alarm release terminals.

• External doors - high traffic
• Internal doors - high traffic
• Cylindrical Mortise Latch
• Lever handle lock for doors hung on the left or right
• Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
• REM1 is used to open the lock from a reception desk button or answer phone.
• REM2 can be linked to an alarm system which, when activated by a momentary contact, will release the door for 30 minutes. This allows emergency personnel to enter the room to rapidly check that no one has been overlooked.
