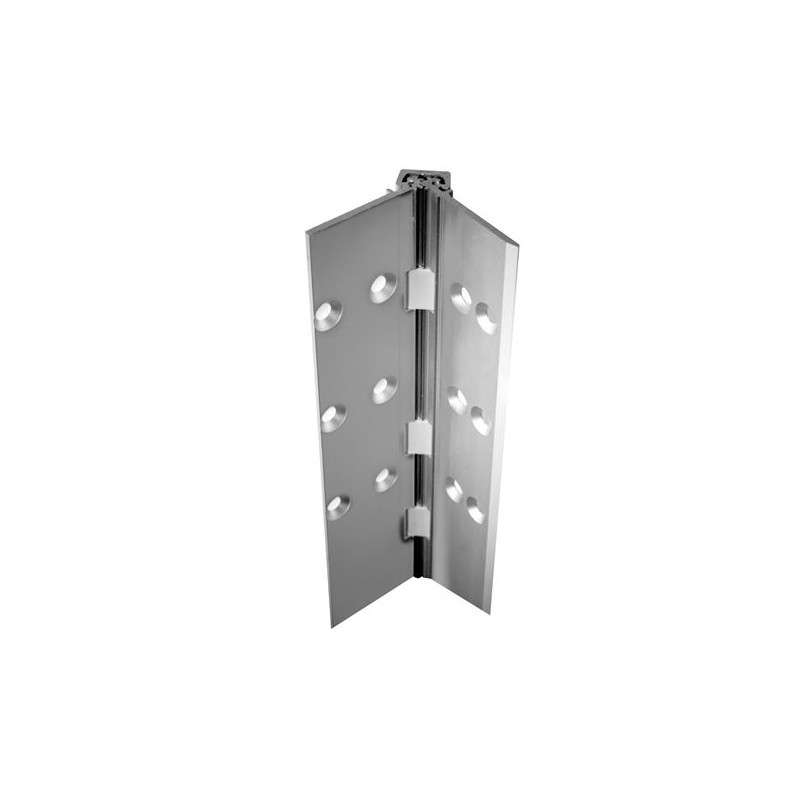

List of Model/SKU Numbers for the ABH A160LL Aluminum Continuous Geared Hinges Fully Concealed For Lead-Lined Door
Here is a list of the Model/SKU Numbers and their corresponding attribute combinations associated with the Model.
| Model #/SKU | Option Combination | MSRP | Price | |
|---|---|---|---|---|
| A160LLC079 |
Finish:Clear, Size:79" |
$133.20 | ||
| A160LLD079 |
Finish:Oxidized Satin Bronze, Size:79" |
$162.60 | ||
| A160LLB079 |
Finish:Flat Black, Size:79" |
$181.80 | ||
| A160LLC083 |
Finish:Clear, Size:83" |
$133.20 | ||
| A160LLD083 |
Size:83", Finish:Oxidized Satin Bronze |
$162.60 | ||
| A160LLB083 |
Finish:Flat Black, Size:83" |
$181.80 | ||
| A160LLC085 |
Finish:Clear, Size:85" |
$133.20 | ||
| A160LLD085 |
Finish:Oxidized Satin Bronze, Size:85" |
$162.60 | ||
| A160LLB085 |
Finish:Flat Black, Size:85" |
$181.80 | ||
| A160LLC095 |
Finish:Clear, Size:95" |
$170.40 | ||
| A160LLD095 |
Size:95", Finish:Oxidized Satin Bronze |
$208.20 | ||
| A160LLB095 |
Finish:Flat Black, Size:95" |
$234.60 | ||
| A160LLC120 |
Finish:Clear, Size:120" |
$233.40 | ||
| A160LLD120 |
Finish:Oxidized Satin Bronze, Size:120" |
$289.80 | ||
| A160LLB120 |
Finish:Flat Black, Size:120" |
$328.20 |
Overview
- Full concealed, heavy duty
- 3/32" door inset
- Beveled edge on frame leaf
- 48" door width maximum
- 450 lbs. door weight maximum
- "LL" model for doors up to 1,000 lbs (lead-lined staggered hole pattern)
Specifications
- Fasteners
- 12-24 × 7/8" undercut self drilling, thread forming tek machine screws
- Standard Lengths
- 79", 83", 85", 95" and 120"
- Finishes
- Clear, dark bronze and black anodized
- Fire Rating
- Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Specifiy "FR" option for 3 hour rating) or 60 minutes (Specifiy "FR" option for 90 minute rating)
Options
- "TW" - Concealed Electrical Thru-Wire
- "EZ" - EZ Connect Molex Plug-in Connectors for installation ease
- "M" - Moveable Electrical Access Prep
- "R" - Removable Electrical Access Prep
- "PT" - Cut-out Prep for Power Transfer
- "EC" - Exposed Electrical Contact
- "EM" - Concealed Electrical Magnetic Monitoring Switch
- "ES" - Exposed Electrical Monitoring Switch
- "MT" - Concealed Electrical Thru-Wire and Magnetic Monitoring Switch
- "CUT" - Cut to Custom Length
- "SPLICE" - Spliced Hinge
- "HT" - Hopsital Tip
- "TR" - Tamper Resistent
- "SEC" - Fasteners
- "FR" - Fire Studs
- "SC" - School Cap
- "DD" - Dutch Door Prep
- "SL" - Sheared Leaf
- "CUSTOM HOLE" - Custom hole locations
- "NO HOLE"
- "CUSTOM FINISH"
