List of Model/SKU Numbers for the Cal-Royal 400 Series Contender Dual Valve Sized Door Closer

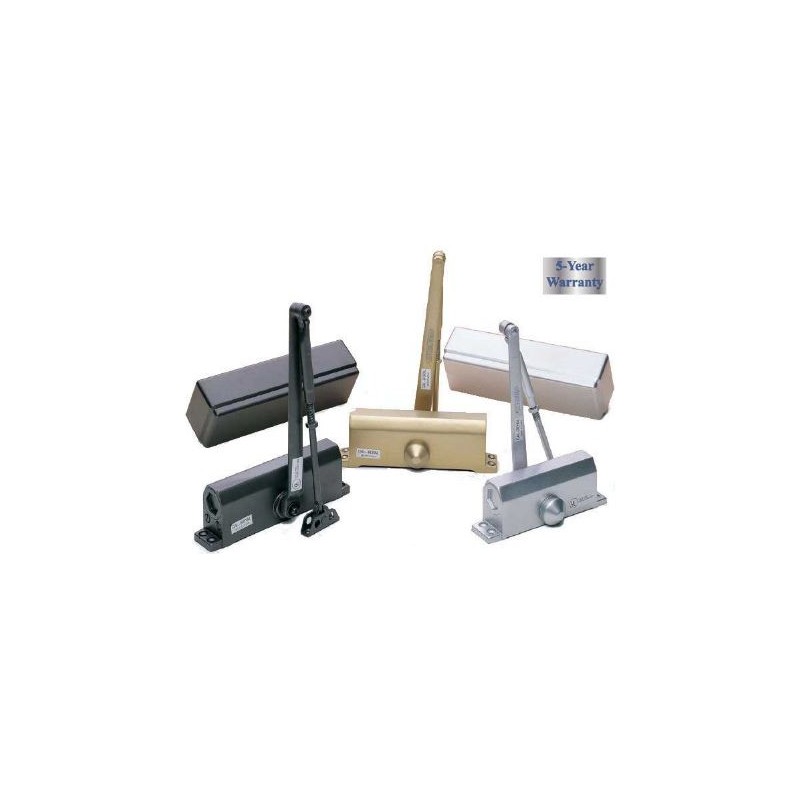

Cal-Royal 400 Series Contender Dual Valve Sized Door Closer

Here is a list of the Model/SKU Numbers and their corresponding attribute combinations associated with the Model.

Model #/SKU Option Combination MSRP Price
420-P ALUM Finish:Satin Nickel, Size:2 (Door 55-100 lbs), Type:Regular Arm/Parallel Arm
$54.43 $40.82
420-P DURO Finish:Duranodic, Size:2 (Door 55-100 lbs), Type:Regular Arm/Parallel Arm
$54.43 $40.82
420-P GOLD Finish:Gold, Size:2 (Door 55-100 lbs), Type:Regular Arm/Parallel Arm
$54.43 $40.82
SM430-P ALUM Finish:Satin Nickel, Size:3 (Door 88-143 lbs), Type:Regular Arm/Smaller Body
$58.95 $44.21
430-P ALUM Finish:Satin Nickel, Size:3 (Door 88-143 lbs), Type:Regular Arm/Parallel Arm
$65.70 $49.28
430-P DURO Finish:Duranodic, Size:3 (Door 88-143 lbs), Type:Regular Arm/Parallel Arm
$65.70 $49.28
430-P GOLD Finish:Gold, Size:3 (Door 88-143 lbs), Type:Regular Arm/Parallel Arm
$65.70 $49.28
430-P WHITE Finish:White, Size:3 (Door 88-143 lbs), Type:Regular Arm/Parallel Arm
$65.70 $49.28
430-PBC ALUM Finish:Satin Nickel, Size:3 (Door 88-143 lbs), Type:Regular Arm/Parallel Arm w/ Back Check
$69.59 $52.19
430-PBC DURO Finish:Duranodic, Size:3 (Door 88-143 lbs), Type:Regular Arm/Parallel Arm w/ Back Check
$69.59 $52.19
430-PBC GOLD Finish:Gold, Size:3 (Door 88-143 lbs), Type:Regular Arm/Parallel Arm w/ Back Check
$69.59 $52.19
440-P ALUM Finish:Satin Nickel, Size:4 (Door 120-187 lbs), Type:Regular Arm/Parallel Arm
$75.25 $56.44
440-P DURO Finish:Duranodic, Size:4 (Door 120-187 lbs), Type:Regular Arm/Parallel Arm
$75.25 $56.44
440-P GOLD Finish:Gold, Size:4 (Door 120-187 lbs), Type:Regular Arm/Parallel Arm
$75.25 $56.44

Features

  • Standard Duty Commercial Hydraulic Door Closer Precision Engineering for New Construction
  • Meets And Exceeds ANSI Standard 156.4 Grade 2
  • Sized Door Closer, Sizes 2, 3 And 4
  • For All Standard Applications
  • Optional Full Cover
  • Optional Back Check
  • Heavy Duty Rack And Pinion
  • ANSI 156.4 Grade 2
  • UL Listed, Conforms to Standards UL10C and UBC7- 22- 1997
  • 5 Year Warranty
  • Sized Hydraulic Door Closers. 420-P Size 2, 430-P Size 3, SM430-P Size 3, 440-P Size 4
  • Dual valve, closing and latching speed controlled by two separate regulating valves.
  • Universal application, non-handed, designed for all standard installations.
  • Reinforced type adjustable tube arm.
  • Rack and pinion operation contained in a high tensile precision cast aluminum housing for the highest quality.
  • High quality hydraulic fluid for high lubricity and constant lubrication.
  • The streamlined design permits installation on most commercial and residential applications without adaptor.
  • Power adjustment bracket on regular arms. (15% adjustment, 7 12%)
  • Optional back check 430P-BC controlled by separate regulating valve.
  • Universal hole pattern. Size (3) 430-P
  • Full cover (2" W 3" H 10" L) optional. Fits all sizes. COV/400.
  • Flat drop bracket.
  • Available in Alum, Duro, and Gold.
  • Hold open arms optional (Part #301/302), for regular & parallel installations.

Specifications

Length of Closer Body
7- 1/4", 7- 1/8", 8- 3/4", 8- 3/4"
Horizontal Mounting Holes
6-5/8", 6-1/2", 8- 3/16", 8- 3/16"
Vertical Mounting Holes
3/4", 3/4", 3/4",3/4"
Height of Closer Body
2-", 1-3/4", 1-3/4", 1-3/4"
Projection from Door
2-5/8", 2- 15/32", 2- 7/8", 2-7/8"

Style and Finish Availability

420-P
Aluminum, Duranodic, Gold, and White
SM430-P
Aluminum Only
430-P
Aluminum, Duranodic, Gold, and White
430-PBC
Aluminum, Duranodic, and Gold
440-P
Aluminum, Duranodic, and Gold

Templates/Spec Sheets

Universal Applications

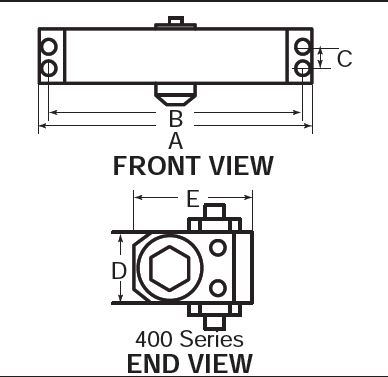

DESCRIPTION MODEL AND SIZE
420-P SM 430-P 430-P 440-P
2 3 3 4
A. Length of Closer Body 7-1/4" 7-1/8" 8-3/4" 8-3/4"
B. Horizontal Mounting Holes 6-5/8" 6-1/2" 8-3/16" 8-3/16"
C. Vertical Mounting Holes 3/4" 3/4" 3/4" 3/4"
D Height of Closer Body 2-5/8" 1-5/8" 1-3/4" 1-3/4"
E. Projection from Door 2-5/8" 2-15/32" 2-7/8" 2-7/8"
REGULAR CLOSERS CLOSERS WITH PARALLEL ARM ADAPTER
MODEL # DOOR WEIGHT (POUNDS) ALL MODELS MODEL # TYPE OF DOOR MAXIMUM SIZE OF DOOR MAXIMUM SIZE OF DOOR
REGULAR HOLD OPEN INTERIOR EXTERIOR INSWINGING INTERIOR OUTSWINGING INTERIOR EXTERIOR INSWINGING
420P 55-100 420ph Heavy screen doors or medium weight interior doors of wood or metal 3'0" ------- ------- 2'6" -------
430P 88-143 430ph Light exterior doors and interior doors of wood or metal 3'6" 2'6" 3'0" 3'0" 2'6"
440P/SM430-P 120-187 440ph Exterior doors and heavy interior doors of wood or metal 4'0" 3'0" 3'6" 3'6" 3'0"
Exterior (and Vestibule) Door Width
24" 30" 36" 42"
500
Series		 |<— Size 3 —>|
|<— Size 4 —>|
|<— Size 5 —>|
Minimum door Width

Interior Door Width
24" 34" 38" 48" 54"
500
Series		 |<— Size 2 —>|
|<— Size 3 —>|
|<— Size 4 —>|
|<— Size 5 —>|
Minimum door Width Adjustable 1 thru 6

Comparison Chart 400 Series

CAL-ROYALCORBINDORMAHAGERNORTONPARKERRUSSWINTAYMORYALE
70046006405400930050046009500/602300
