List of Model/SKU Numbers for the Cal-Royal CR55 Surface Overhead Door Holder/Stop

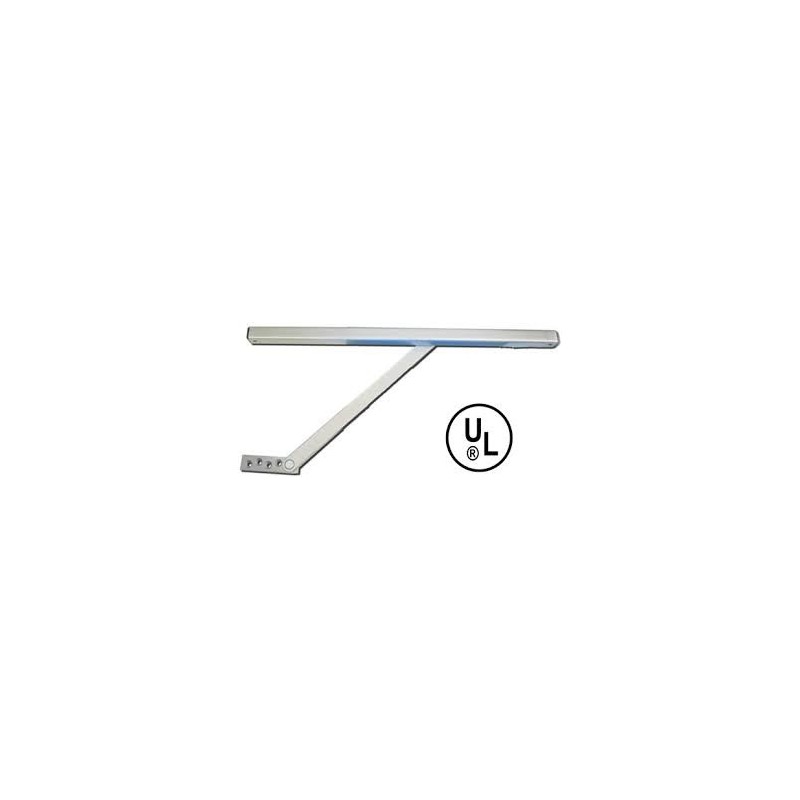

Cal-Royal CR55 Surface Overhead Door Holder/Stop

Here is a list of the Model/SKU Numbers and their corresponding attribute combinations associated with the Model.

Model #/SKU Option Combination MSRP Price
CR555S US32D Finish:Satin Stainless Steel, Door Stop Only/Holder W/ Hold Open:Door Stop Only, Size:39 1/16" - 45"
$123.48 $92.61
CR552S US26D Finish:Satin Chrome, Size:23 1/16" - 27", Door Stop Only/Holder W/ Hold Open:Door Stop Only
$105.06 $78.80
CR552H US32D Finish:Satin Stainless Steel, Size:23 1/16" - 27", Door Stop Only/Holder W/ Hold Open:Door Holder W/ Hold Open
$123.48 $92.61
CR553S US32D Finish:Satin Stainless Steel, Door Stop Only/Holder W/ Hold Open:Door Stop Only, Size:27 1/6" - 33"
$123.48 $92.61
CR553H US32D Finish:Satin Stainless Steel, Size:27 1/6" - 33", Door Stop Only/Holder W/ Hold Open:Door Holder W/ Hold Open
$123.48 $92.61
CR554S US32D Finish:Satin Stainless Steel, Door Stop Only/Holder W/ Hold Open:Door Stop Only, Size:33 1/6" - 39"
$123.48 $92.61
CR554H US32 Size:33 1/6" - 39", Door Stop Only/Holder W/ Hold Open:Door Holder W/ Hold Open
$185.46 $139.10
CR554H US10B Size:33 1/6" - 39", Door Stop Only/Holder W/ Hold Open:Door Holder W/ Hold Open
$185.46 $139.10
CR554H US3 Size:33 1/6" - 39", Door Stop Only/Holder W/ Hold Open:Door Holder W/ Hold Open
$185.46 $139.10
CR554H US4 Size:33 1/6" - 39", Door Stop Only/Holder W/ Hold Open:Door Holder W/ Hold Open
$185.46 $139.10
CR555H US32 Size:39 1/16" - 45", Door Stop Only/Holder W/ Hold Open:Door Holder W/ Hold Open
$185.46 $139.10
CR555H US10B Size:39 1/16" - 45", Door Stop Only/Holder W/ Hold Open:Door Holder W/ Hold Open
$185.46 $139.10
CR555H US3 Size:39 1/16" - 45", Door Stop Only/Holder W/ Hold Open:Door Holder W/ Hold Open
$185.46 $139.10
CR555H US4 Size:39 1/16" - 45", Door Stop Only/Holder W/ Hold Open:Door Holder W/ Hold Open
$185.46 $139.10

Features

  • Limits door swing
  • Non-Handed / Reversible
  • Built-in cushioned stop
  • Available stop only or stop/hold
  • Automatic hold-open and release by push and pull on door
  • Hold-open can be disengaged to act as stop only
  • Heavy shock absorber spring provides compression before dead stop
  • Screw packet included to allow for installation in wood or metal door and frame
  • Maximum opening 110°, minimum door thickness 1⅜"
  • Available in architectural finishes
  • UL Listed as STOP Function

Cal-Royal CR550 Series holders and stops are designed to give dependable surface-mounted overhead door control for medium to light duty applications. They come in a wide assortment of architectural finishes. The CR550 series holders and stops can be installed in almost all types of doors and frames including doors with conventional butt hinges, offset pivots, continuous hinges, swing clear hinges and other specialty hinges. They can be mounted to accommodate 85° - 110° door opening. Each door holder and stop models come in four different sizes.
