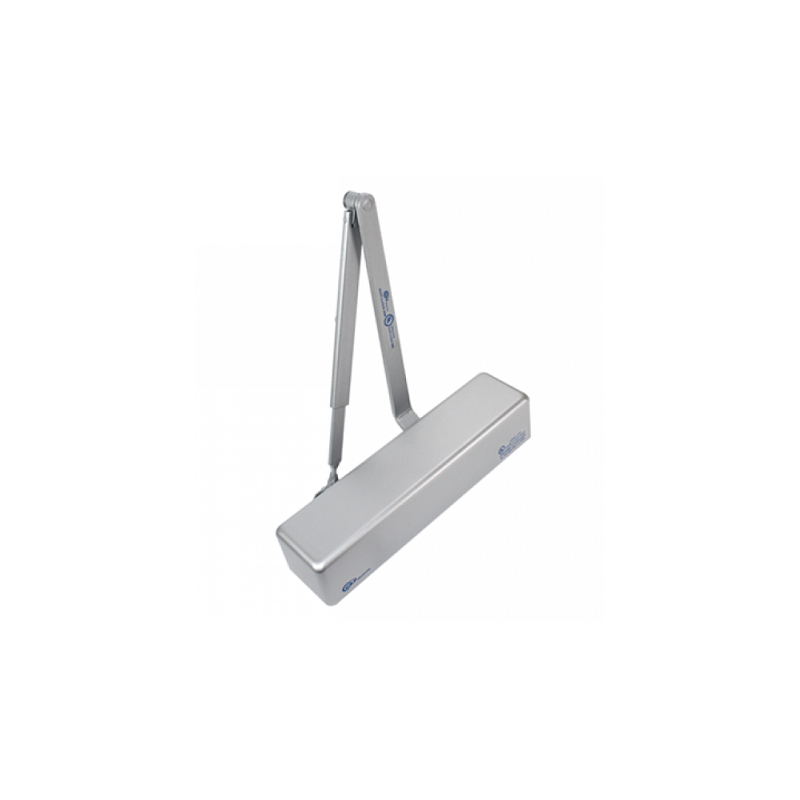

List of Model/SKU Numbers for the Cal-Royal N900PBF Series Barrier Free Adjustable Door Closer With Full Cover
Here is a list of the Model/SKU Numbers and their corresponding attribute combinations associated with the Model.
| Model #/SKU | Option Combination | MSRP | Price | |
|---|---|---|---|---|
| N900PBF ALUM |
Delayed Action:Not Included, Finish:Aluminum |
$118.04 | ||
| N900PBF DURO |
Finish:Duranodic, Delayed Action:Not Included |
$118.04 | ||
| N900PBF GOLD |
Finish:Gold, Delayed Action:Not Included |
$118.04 | ||
| N900PBFDA ALUM |
Delayed Action:Included, Finish:Aluminum |
$126.02 | ||
| N900PBFDA DURO |
Finish:Duranodic, Delayed Action:Included |
$126.02 | ||
| N900PBFDA GOLD |
Finish:Gold, Delayed Action:Included |
$126.02 | ||
| N900PBF ALUM 32D/ 15 |
Delayed Action:Not Included, Finish:Aluminum, Stainless Cover:Cover Only |
$213.86 | ||
| N900PBF ALUM 32D/ 32D |
Delayed Action:Not Included, Finish:Aluminum, Stainless Cover:Cover With Arm, PA And Bracket |
$249.63 | ||
| N900PBF DURO 32D/ 15 |
Finish:Duranodic, Delayed Action:Not Included, Stainless Cover:Cover Only |
$213.86 | ||
| N900PBF DURO 32D/ 32D |
Finish:Duranodic, Delayed Action:Not Included, Stainless Cover:Cover With Arm, PA And Bracket |
$249.63 | ||
| N900PBF GOLD 32D/ 15 |
Finish:Gold, Delayed Action:Not Included, Stainless Cover:Cover Only |
$213.86 | ||
| N900PBF GOLD 32D/ 32D |
Finish:Gold, Delayed Action:Not Included, Stainless Cover:Cover With Arm, PA And Bracket |
$249.63 | ||
| N900PBF L1 |
Delayed Action:Not Included, Finish:Black |
$135.74 | ||
| N900PBF L1 32D/ 15 |
Delayed Action:Not Included, Finish:Black, Stainless Cover:Cover Only |
$231.56 | ||
| N900PBF L1 32D/ 32D |
Delayed Action:Not Included, Finish:Black, Stainless Cover:Cover With Arm, PA And Bracket |
$267.34 | ||
| N900PBFDA ALUM 32D/ 15 |
Delayed Action:Included, Finish:Aluminum, Stainless Cover:Cover Only |
$221.84 | ||
| N900PBFDA ALUM 32D/ 32D |
Delayed Action:Included, Finish:Aluminum, Stainless Cover:Cover With Arm, PA And Bracket |
$257.61 | ||
| N900PBFDA DURO 32D/ 15 |
Finish:Duranodic, Delayed Action:Included, Stainless Cover:Cover Only |
$221.84 | ||
| N900PBFDA DURO 32D/ 32D |
Finish:Duranodic, Delayed Action:Included, Stainless Cover:Cover With Arm, PA And Bracket |
$257.61 | ||
| N900PBFDA GOLD 32D/ 15 |
Finish:Gold, Delayed Action:Included, Stainless Cover:Cover Only |
$221.84 | ||
| N900PBFDA GOLD 32D/ 32D |
Finish:Gold, Delayed Action:Included, Stainless Cover:Cover With Arm, PA And Bracket |
$257.61 | ||
| N900PBFDA L1 |
Delayed Action:Included, Finish:Black |
$144.90 | ||
| N900PBFDA L1 32D/ 15 |
Delayed Action:Included, Finish:Black, Stainless Cover:Cover Only |
$240.72 | ||
| N900PBFDA L1 32D/ 32D |
Delayed Action:Included, Finish:Black, Stainless Cover:Cover With Arm, PA And Bracket |
$276.50 |
- Cal-Royal's Finest Hydraulic Door Closer Series Meeting The Highest Industry Standards, Grade 1
- Heavy-Duty Full Feature Multi-Size Commercial Door Closer For Use In Office Buildings, Shopping Centers And Other Commercial Buildings
- Standard Back-Check Function
- Full Plastic Cover Is Standard Feature. (Metal Optional)
- Optional Plated Decorative Covers Are Available
- Optional Adjustable Delayed Action for Handicapped Or Elderly
- Full Cover Multi-size
- Full Feature Closer
- ANSI 156.4 Grade 1
- UL Listed, Conforms to Standards UL10C and UBC7-2-1997
- BHMA Certified Lifetime Warranty
Features

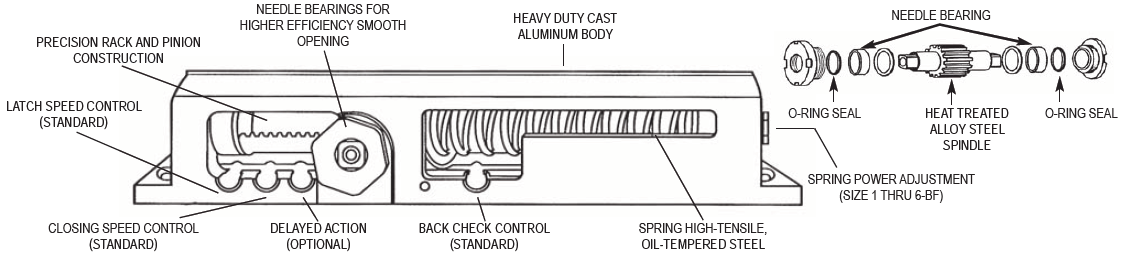

- Hydraulic Door Closer
- ANSI 156.4 Grade 1: UL listed for fire door assemblies
- Universal application. Non-handed for standard, top-jamb or parallel arm installation
- Non-sized, 1 thru 6 FACTORY PRESET SIZE 3
- Door weights 30-260 lbs (all models)
- Standard adjustable back-check function
- Adjustable closing and latching speed by two separate regulating valves
- Standard full plastic cover
- Available in Alum, Duro, Gold, White, US3, 26, 26D, 10, 15, 10B, 4, 32D and 5 Finishes
- Optional adjustable delayed action (DA) Preset at the factory for approximately 20 seconds, between 70
| Exterior (and Vestibule) Door Width | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24" | 30" | 36" | 42" | 48" | ||||||||||
| 900 Series |
|<— | Size 3 | —>| | |||||||||||
| |<— | Size 4 | —>| | ||||||||||||
| |<— | Size 5 | —>| | ||||||||||||
| |<— | Size 6 | —>| | ||||||||||||
| Minimum door Width | ||||||||||||||
| Interior Door Width | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24" | 34" | 38" | 48" | 54" | 60" | ||||||||||||
| 900 Series |
|<— | Size 2 | —>| | ||||||||||||||
| |<— | Size 3 | —>| | |||||||||||||||
| |<— | Size 4 | —>| | |||||||||||||||
| |<— | Size 5 | —>| | |||||||||||||||
| |<— | Size 6 | —>| | |||||||||||||||
| Minimum door Width | Adjustable 1 thru 6 | ||||||||||||||||
| DESCRIPTION | SIZE |  |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A. Length of Closer body | 11 3/4" | ||||||||||||||||||
| B. Horizontal Mounting Holes | 11 1/8" | ||||||||||||||||||
| C. Vertical Mounting holes | 9/16" | ||||||||||||||||||
| D. Height of Closer Body | 2" | ||||||||||||||||||
| E. Projection from Door | 2 7/8" |
| Size | Exterior (and Vestibule) Door Width | Interior Door Width |
|---|---|---|
| 2 | --- | 24"-34" |
| 3 | 24"-30" | 24"-38" |
| 4 | 24"-36" | 24"-48" |
| 5 | 24"-42" | 24"-54" |
| 6 | 24"-48" | 24"-60" |
