List of Model/SKU Numbers for the Pemko 296 Standard Perimeter Gasketing

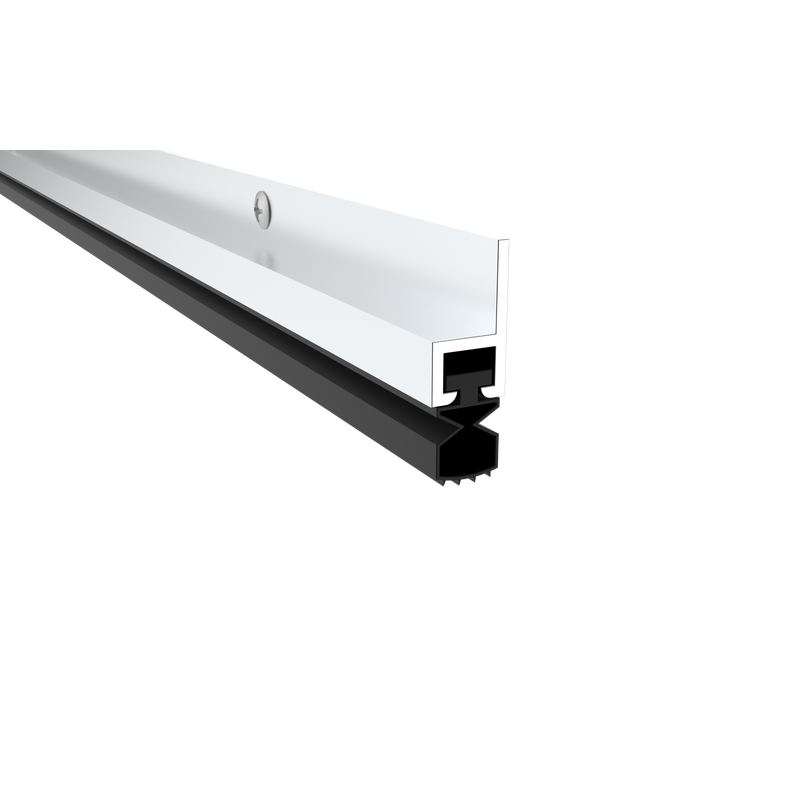

Pemko 296 Standard Perimeter Gasketing

Here is a list of the Model/SKU Numbers and their corresponding attribute combinations associated with the Model.

Model #/SKU Option Combination MSRP Price
296CPK-24 Length:24", Insert Option:PemkoPrene
$12.46 $12.46
296CPK-36 Length:36", Insert Option:PemkoPrene
$18.69 $18.69
296CPK-48 Length:48", Insert Option:PemkoPrene
$24.93 $24.93
296CPK-72 Length:72", Insert Option:PemkoPrene
$37.38 $37.38
296CPK-96 Length:96", Insert Option:PemkoPrene
$49.84 $49.84
296CR-24 Length:24", Insert Option:Sponge Neoprene
$15.65 $15.65
296CR-36 Length:36", Insert Option:Sponge Neoprene
$23.48 $23.48
296CR-48 Length:48", Insert Option:Sponge Neoprene
$31.30 $31.30
296CR-72 Length:72", Insert Option:Sponge Neoprene
$46.95 $46.95
296CR-96 Length:96", Insert Option:Sponge Neoprene
$62.60 $62.60
296CS-24 Length:24"
$23.48 $23.48
296CS-36 Length:36"
$35.21 $35.21
296CS-48 Length:48"
$46.95 $46.95
296CS-72 Length:72"
$70.42 $70.42
296CS-96 Length:96"
$93.89 $93.89
296DPK-24 Length:24", Finish:Dark Bronze Anodized Aluminum, Insert Option:PemkoPrene
$16.23 $16.23
296DPK-36 Length:36", Finish:Dark Bronze Anodized Aluminum, Insert Option:PemkoPrene
$24.34 $24.34
296DPK-48 Length:48", Finish:Dark Bronze Anodized Aluminum, Insert Option:PemkoPrene
$32.46 $32.46
296DPK-72 Length:72", Finish:Dark Bronze Anodized Aluminum, Insert Option:PemkoPrene
$48.69 $48.69
296DPK-96 Length:96", Finish:Dark Bronze Anodized Aluminum, Insert Option:PemkoPrene
$64.91 $64.91
296DR-24 Length:24", Finish:Dark Bronze Anodized Aluminum, Insert Option:Sponge Neoprene
$20.29 $20.29
296DR-36 Length:36", Finish:Dark Bronze Anodized Aluminum, Insert Option:Sponge Neoprene
$30.43 $30.43
296DR-48 Length:48", Finish:Dark Bronze Anodized Aluminum, Insert Option:Sponge Neoprene
$40.57 $40.57
296DR-72 Length:72", Finish:Dark Bronze Anodized Aluminum, Insert Option:Sponge Neoprene
$60.86 $60.86
296DR-96 Length:96", Finish:Dark Bronze Anodized Aluminum, Insert Option:Sponge Neoprene
$81.14 $81.14
296DS-24 Length:24", Finish:Dark Bronze Anodized Aluminum
$28.69 $28.69
296DS-36 Length:36", Finish:Dark Bronze Anodized Aluminum
$43.04 $43.04
296DS-48 Length:48", Finish:Dark Bronze Anodized Aluminum
$57.38 $57.38
296DS-72 Length:72", Finish:Dark Bronze Anodized Aluminum
$86.07 $86.07
296DS-96 Length:96", Finish:Dark Bronze Anodized Aluminum
$114.77 $114.77
296CPK-12 Insert Option:PemkoPrene
$12.46 $12.46
296CR-12 Insert Option:Sponge Neoprene
$15.65 $15.65
296CS-12
$23.48 $23.48
296DPK-12 Finish:Dark Bronze Anodized Aluminum, Insert Option:PemkoPrene
$16.23 $16.23
296DR-12 Finish:Dark Bronze Anodized Aluminum, Insert Option:Sponge Neoprene
$20.29 $20.29
296DS-12 Finish:Dark Bronze Anodized Aluminum
$28.69 $28.69
29610BE-PK-12 Insert Option:PemkoPrene, Finish:Satin Bronze Powder Coat
$22.03 $22.03
29610BE-PK-24 Length:24", Insert Option:PemkoPrene, Finish:Satin Bronze Powder Coat
$22.03 $22.03
29610BE-PK-36 Length:36", Insert Option:PemkoPrene, Finish:Satin Bronze Powder Coat
$33.03 $33.03
29610BE-PK-48 Length:48", Insert Option:PemkoPrene, Finish:Satin Bronze Powder Coat
$44.05 $44.05
29610BE-PK-72 Length:72", Insert Option:PemkoPrene, Finish:Satin Bronze Powder Coat
$66.08 $66.08
29610BE-PK-96 Length:96", Insert Option:PemkoPrene, Finish:Satin Bronze Powder Coat
$88.10 $88.10
29610BE-R-12 Insert Option:Sponge Neoprene, Finish:Satin Bronze Powder Coat
$25.50 $25.50
29610BE-R-24 Length:24", Insert Option:Sponge Neoprene, Finish:Satin Bronze Powder Coat
$25.50 $25.50
29610BE-R-36 Length:36", Insert Option:Sponge Neoprene, Finish:Satin Bronze Powder Coat
$38.25 $38.25
29610BE-R-48 Length:48", Insert Option:Sponge Neoprene, Finish:Satin Bronze Powder Coat
$51.01 $51.01
29610BE-R-72 Length:72", Insert Option:Sponge Neoprene, Finish:Satin Bronze Powder Coat
$76.50 $76.50
29610BE-R-96 Length:96", Insert Option:Sponge Neoprene, Finish:Satin Bronze Powder Coat
$102.01 $102.01
29610BE-S-12 Finish:Satin Bronze Powder Coat
$37.38 $37.38
29610BE-S-24 Length:24", Finish:Satin Bronze Powder Coat
$37.38 $37.38
29610BE-S-36 Length:36", Finish:Satin Bronze Powder Coat
$56.08 $56.08
29610BE-S-48 Length:48", Finish:Satin Bronze Powder Coat
$74.77 $74.77
29610BE-S-72 Length:72", Finish:Satin Bronze Powder Coat
$112.15 $112.15
29610BE-S-96 Length:96", Finish:Satin Bronze Powder Coat
$149.54 $149.54
296BSPPK-12 Insert Option:PemkoPrene, Finish:Black Suede Powder Coat
$22.03 $22.03
296BSPPK-24 Length:24", Insert Option:PemkoPrene, Finish:Black Suede Powder Coat
$22.03 $22.03
296BSPPK-36 Length:36", Insert Option:PemkoPrene, Finish:Black Suede Powder Coat
$33.03 $33.03
296BSPPK-48 Length:48", Insert Option:PemkoPrene, Finish:Black Suede Powder Coat
$44.05 $44.05
296BSPPK-72 Length:72", Insert Option:PemkoPrene, Finish:Black Suede Powder Coat
$66.08 $66.08
296BSPPK-96 Length:96", Insert Option:PemkoPrene, Finish:Black Suede Powder Coat
$88.10 $88.10
296BSPR-12 Insert Option:Sponge Neoprene, Finish:Black Suede Powder Coat
$25.50 $25.50
296BSPR-24 Length:24", Insert Option:Sponge Neoprene, Finish:Black Suede Powder Coat
$25.50 $25.50
296BSPR-36 Length:36", Insert Option:Sponge Neoprene, Finish:Black Suede Powder Coat
$38.25 $38.25
296BSPR-48 Length:48", Insert Option:Sponge Neoprene, Finish:Black Suede Powder Coat
$51.01 $51.01
296BSPR-72 Length:72", Insert Option:Sponge Neoprene, Finish:Black Suede Powder Coat
$76.50 $76.50
296BSPR-96 Length:96", Insert Option:Sponge Neoprene, Finish:Black Suede Powder Coat
$102.01 $102.01
296BSPS-12 Finish:Black Suede Powder Coat
$37.38 $37.38
296BSPS-24 Length:24", Finish:Black Suede Powder Coat
$37.38 $37.38
296BSPS-36 Length:36", Finish:Black Suede Powder Coat
$56.08 $56.08
296BSPS-48 Length:48", Finish:Black Suede Powder Coat
$74.77 $74.77
296BSPS-72 Length:72", Finish:Black Suede Powder Coat
$112.15 $112.15
296BSPS-96 Length:96", Finish:Black Suede Powder Coat
$149.54 $149.54
296WSPPK-12 Insert Option:PemkoPrene, Finish:White Suede Powder Coat
$22.03 $22.03
296WSPPK-24 Length:24", Insert Option:PemkoPrene, Finish:White Suede Powder Coat
$22.03 $22.03
296WSPPK-36 Length:36", Insert Option:PemkoPrene, Finish:White Suede Powder Coat
$33.03 $33.03
296WSPPK-48 Length:48", Insert Option:PemkoPrene, Finish:White Suede Powder Coat
$44.05 $44.05
296WSPPK-72 Length:72", Insert Option:PemkoPrene, Finish:White Suede Powder Coat
$66.08 $66.08
296WSPPK-96 Length:96", Insert Option:PemkoPrene, Finish:White Suede Powder Coat
$88.10 $88.10
296WSPR-12 Insert Option:Sponge Neoprene, Finish:White Suede Powder Coat
$25.50 $25.50
296WSPR-24 Length:24", Insert Option:Sponge Neoprene, Finish:White Suede Powder Coat
$25.50 $25.50
296WSPR-36 Length:36", Insert Option:Sponge Neoprene, Finish:White Suede Powder Coat
$38.25 $38.25
296WSPR-48 Length:48", Insert Option:Sponge Neoprene, Finish:White Suede Powder Coat
$51.01 $51.01
296WSPR-72 Length:72", Insert Option:Sponge Neoprene, Finish:White Suede Powder Coat
$76.50 $76.50
296WSPR-96 Length:96", Insert Option:Sponge Neoprene, Finish:White Suede Powder Coat
$102.01 $102.01
296WSPS-12 Finish:White Suede Powder Coat
$37.38 $37.38
296WSPS-24 Length:24", Finish:White Suede Powder Coat
$37.38 $37.38
296WSPS-36 Length:36", Finish:White Suede Powder Coat
$56.08 $56.08
296WSPS-48 Length:48", Finish:White Suede Powder Coat
$74.77 $74.77
296WSPS-72 Length:72", Finish:White Suede Powder Coat
$112.15 $112.15
296WSPS-96 Length:96", Finish:White Suede Powder Coat
$149.54 $149.54

Perimeter gasketing, unless otherwise specified, is designed for openings with 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal.

  • Punched on 6" center with slotted holes for adjustment.
  • Stainless steel fasteners are standard. Other fasteners are available upon request.
  • Rigid jamb weatherstrip is shown mounted on openings wih 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal.
  • Seal depth is provided on each illustration.
  • Stainless steel fasteners are standard.
  • Other fasteners are available.
  • This perimeter gasketing is supplied with a PemkoPrene® ("PK") insert - item number PK4132 (available in gray or black).

Ratings

  • Air Infiltration Tested
  • BHMA Certified
  • Smoke Tested - UL1784
  • Fire Rated - UL10C - Positive Pressure
  • Underwriters Laboratory 4L10
  • GREENGUARD Gold Certified

Finishes

  • 296CR: C - Clear Anodized Aluminum with Black Sponge EPDM insert
  • 296DR: D - Dark Bronze Anodized Aluminum with Black Sponge EPDM insert
  • 296GR: G - Gold Anodized Aluminum with Black Sponge EPDM insert
