List of Model/SKU Numbers for the ZERO 253A Door Shoe, Aluminum/Neoprene Insert/Mortised
Here is a list of the Model/SKU Numbers and their corresponding attribute combinations associated with the Model.
| Model #/SKU | Option Combination | MSRP | Price | |
|---|---|---|---|---|
| 253A1 |
|
$6.89 | ||
| 253A2 |
|
$13.77 | ||
| 253A3 |
|
$20.66 | ||
| 253A4 |
|
$27.54 | ||
| 253A5 |
|
$34.43 | ||
| 253A6 |
|
$41.31 | ||
| 253A7 |
|
$48.20 | ||
| 253A8 |
|
$55.08 | ||
| 253A9 |
|
$61.97 | ||
| 253A10 |
|
$68.85 |

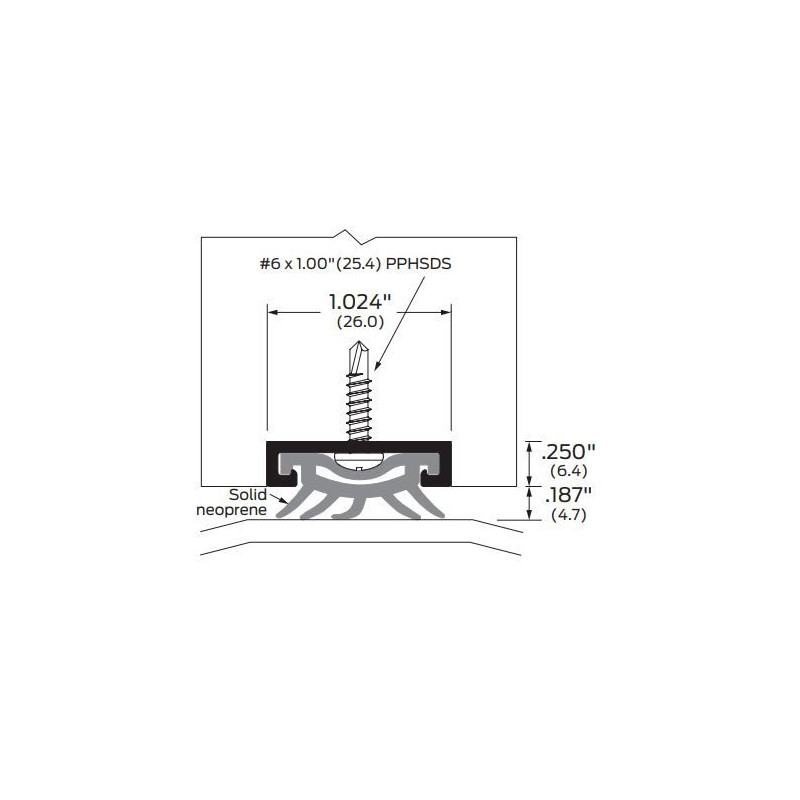

This Zero #253 door bottom sweep provides reliable sill protection, while maintaining the clean and neat look of the door. It is fitted with a smoke rated solid neoprene fingered insert that will effectively minimize infiltration of dust, smoke, drafts and moisture. Available in aluminum mill finish, and is custom cut to size.
Specifications
- Door Shoe Retainer Material
- Aluminum
- Door Type
- Wooden Door, Metal Door
- Seal Type
- Neoprene Rubber Seal
- Mounting
- Fully Mortised
- Seal Height
- .187" Height
- Total Height
- .437" Height
- Additional Dimensions
- Door seal is 1.024" thick
- Length
- Custom Cut to Size
- Drill Holes
- Drill holes are provided
- Installation Screws
- 6 × 1.00" (25.4) PPHSDS Provided
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
