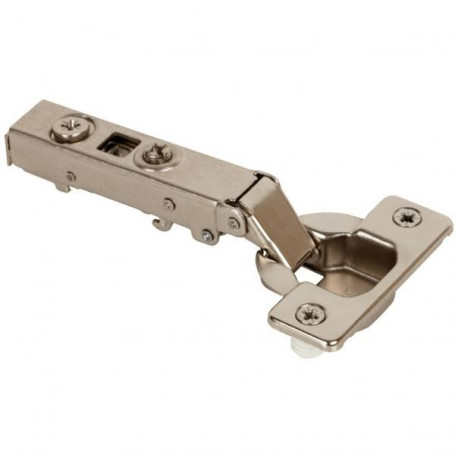

Hardware Resources 725.01 HR MAX Heavy Duty Self-Close Hinge w/ Press-In 8 mm Dowel, Full Overlay

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$2.73

10% Off

$3.03

Details: Hardware Resources 725.01 HR MAX Heavy Duty Self-Close Hinge w/ Press-In 8 mm Dowel, Full Overlay

Features

  • HR Max = Quality backed by Lifetime warranty
  • Heavy duty spring and patented linkage system
  • All metal concealed damper provides a life time of worry-free use
  • 2-stop action
  • Woodwork Institute Listed Product (725.0181.25)
  • Hinge and plate provide 6-way adjustability
  • Cold rolled steel with nickel plating
  • Compatible with 600 series mounting plates
  • 0 mm Crank
  • Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
  • Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play
  • 6-Way adjustability: Horizontal, depth and vertical with plate

Specifications

Closing
Self-close
Cycles
100,000+
Hinge Cup Bore Depth
11.2 mm
Arm Type
Straight Arm
Hinge Type
European
Mount Centers
45 mm
Cabinet Type
Faceframe or Frameless
Pivot Type
Dual
ADA Friendly
No
Packaging Type
Small Package
Degree of Opening
110 Degree
Overlay
Full Overlay
Hinge Crank Amount
0 mm
Overlay Adjustment
+2 mm, -2 mm
Depth Adjustment
+3 mm, -2 mm
Brand
HR Max
Series
725 Series
Finish
Polished Nickel
Overall Length
68 mm
Hinge Cup Diameter
35 mm
Hinge Dowels
Press-in
Material
Steel
Patent
8,819,897 B2
Certification
ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012, Woodwork Institute
Installation
Press-in 8 mm Dowels
Mount Type
Press-in

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
