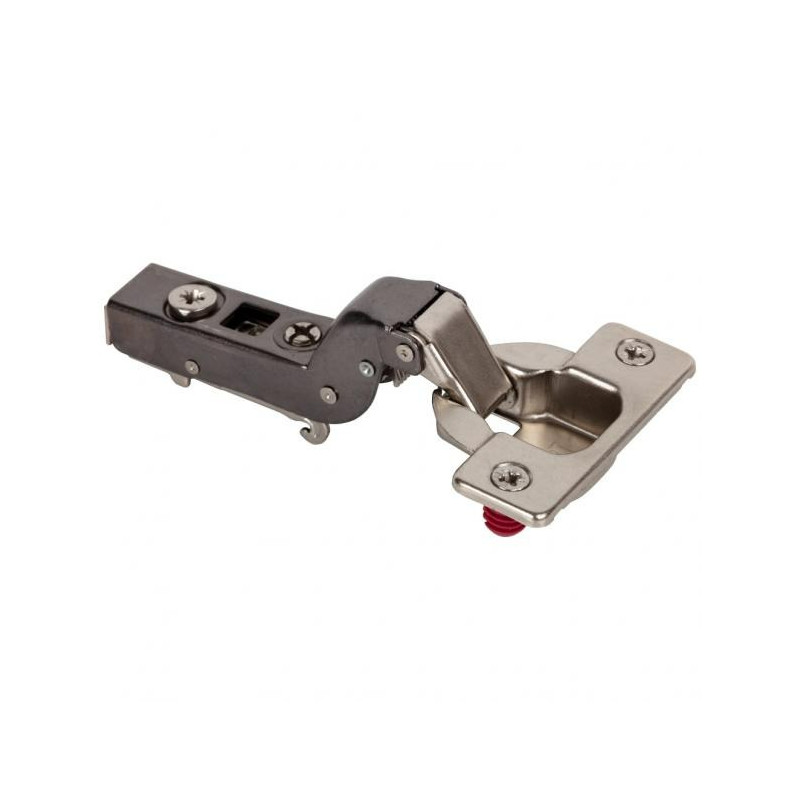

Hardware Resources 900.0280.25 Commercial Grade Self-close Hinge with Press-in 8 mm Dowels

View larger

Hardware Resources 900.0280.25 Commercial Grade Self-Close Hinge w/ Dowel, Inset

Model: 900.0280.25

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hardware Resources 900.0280.25 Commercial Grade Self-Close Hinge w/ Dowel, Inset

Features

Patented Heavy Duty hinge designed specifically for rugged commercial use
Supports framed or frameless applications
2 stop action
Compatible with 600 Series mounting plates
15 mm Crank
Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play
6-Way adjustability: Horizontal, depth and vertical with plate
Compatible with 600 Series Plates

Specifications

Closing: Self-close
Cycles: 100,000+
Hinge Cup Bore Depth: 11.2 mm
Arm Type: Full Cranked
Hinge Type: European
Mount Centers: 45 mm
Cabinet Type: Faceframe or Frameless
Pivot Type: Dual
ADA Friendly: No
Packaging Type: Small Package
Degree of Opening: 110 Degree
Overlay: Inset
Hinge Crank Amount: 15 mm
Overlay Adjustment: +2 mm, -2 mm
Depth Adjustment: +3 mm, -2 mm
Adjustment Type: Cam
Brand: Hardware Resources
Series: 900 Series
Finish: Dark Nickel
Overall Length: 70 mm
Hinge Cup Diameter: 35 mm
Hinge Dowels: Press-in
Material: Steel
Certification: ANSI/BHMA A156.9-2003, ANSI/KCMA A161.1-01
Installation: Press-in 8 mm Dowels
Mount Type: Press-in

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
