KABA E-Plex 5000 Series Grade 1 Electronic Pushbutton Cipher Lock with Lever

• Number of Codes: Multiple Users—100 Codes; upgrades to 300 Codes with optional software

Locking Device Options

• Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating
• Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and Mounting Hardware not included)
• American Standard Mortise: With 1" (25 mm) and 1¼" (32 mm) face plate; with and without Deadbolt

• Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.
• Programming: Locks are programmed via keypad or with optional Microsoft® Excel®-based software— simplifies management of doors and users as facility's number of users and accesspoints grow
• Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Key Override

• Key-in-lever cylinders
• Small format interchangeable cores
• Large format removable cores

Operation Modes

• PIN access
• Lockout
• Passage—can be toggled on/off or can be pre-programmed to relock after a certain number of hours (from 1 to 24)

Authority Levels

• Master Level—Performs all set-up and programming functions
• Manager Level—Administers common programming functions
• Access User Level—Entry granted with valid PIN
• Service Level—Codes for single event or single day access, programmable in advance
• Maintenance Level—No access is granted, but information can be uploaded/downloaded to/from the lock

User Parameters

• Code length—Adjustable to accept 4 to 8 digits
• Anti-tamper lockout—Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
• Relock time—Adjustable from 2 to 20 seconds

• Ease of Installation: LectroBoltTM eliminates wiring to or through the door—no risk of pinched wires

Compatible Exit Devices Include

• Arrow S1250
• Arrow S3800
• Corbin Russwin 5200/5200A
• Detex 10/F10
• Dorma 9300/9300F
• Monarch 18R/F-18R
• Precision 21/FL 21
• Sargent 2828
• Sargent 3828
• Sargent 8800
• Sargent 8888
• Von Duprin 22⁄22F
• Von Duprin 98⁄98F
• Von Duprin 99⁄99F
• Yale 7100

Door Handing

• Cylindrical and E-Plex Mortise—Non-handed, pre-assembled for left-hand door installations—easily changed in the field

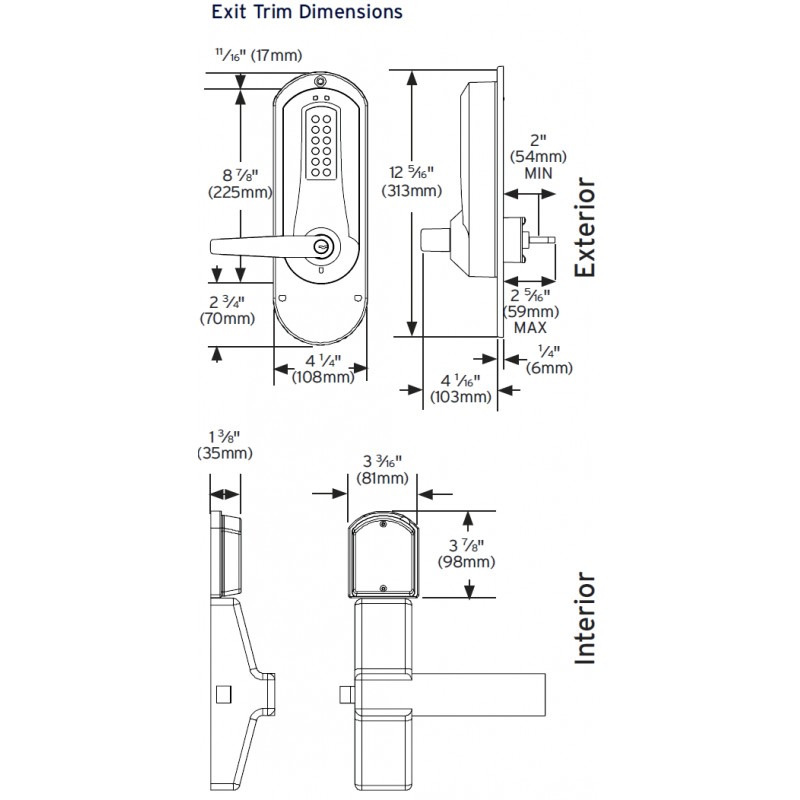

• Exit Trim—Non-handed

Backsets

• Cylindrical—2⅛" (70 mm), 2⅜" (60 mm)
• Mortise—2¾" (70 mm)
• Exit Trim—Varies by exit device type

Latch

• Cylindrical—1⁄2" (13 mm) latch, ¾" (19 mm) latch (optional)
• Mortise—3⁄4" (19 mm) latch, 1" (25 mm) deadbolt (optional)

Additional Configurations

• Stand-Alone Access Controller
• Entry/Exit

Door Thickness

• Cylindrical—1⅜" (35 mm) to 2¼" (57 mm); Pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (50 mm)
• Mortise—1¾" (44 mm) to 2¼" (57 mm); Pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (50 mm)
• Exit Trim—1¾" (44 mm) to 2¼" (57 mm); Pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (50 mm)

Environmental

• Indoor/Outdoor Approved
• Front Housing: -31 °F (-35 °C) to + 151 °F (66 °C)
• Rear Housing: -31 °F (-35 °C) to + 130 °F (55 °C)

Standard Finishes

• Satin Chrome 26D (626) housings and levers
• Black (676) housings with Satin Chrome (626) levers and accents

Optional Finishes

• Bright Brass 03 (605) housings and levers
• Satin Brass 04 (606) housings and levers
• Bright Chrome 026 (625) housings and levers
• Dark Bronze 744 with brass accents
