> >>>Lockey ED51 Edge Panic Shield Safety Kit
Lockey ED51 Edge Panic Shield Safety Kit View larger

Lockey

Lockey ED51 Edge Panic Shield Safety Kit

ED51

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$724.77

Details: Lockey ED51 Edge Panic Shield Safety Kit

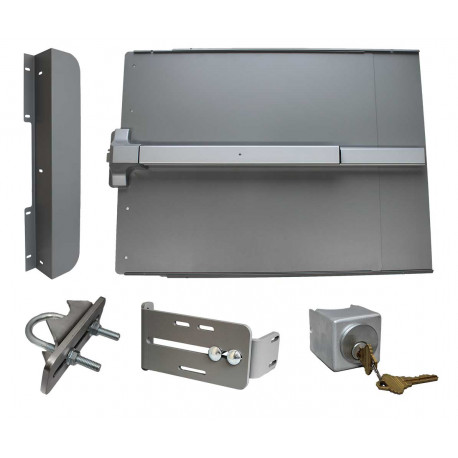

Kit Includes:

Edge Style Panic Shield

Edge Style Strike Bracket

Keyed Cylinder (Schlage Keyway)

Edge Style Keyed Cylinder Gate Box

Edge Style Latch Protector

Jamb Stop

PB1100 33" Panic Bar

Specifications

Panic Shield Dimensions
24" L x (28" -54") W x 1/2" D
Strike Bracket Dimensions
4 1/2" L x 3 1/2" W x 1 1/4" D
Latch Protector Dimensions
23 1/2" L x 6" W x 2 1/2" D
Jamb Stop Dimensions
5" L x 2" W x 1/4" D
Keyed Cylinder Gate Box Dimensions (EDGB5)
1 3/4" L x 1 3/4" W x 2 1/4" D
Panic Bar Length
33" (36" Doors) or 42" (48" Doors)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Installaton Instructions

Available Model Numbers and Combinations

Model/SKUAttributes
ED51SLM Silver - Panic Shield, PB1142SS 42" Stainless Steel Panic Bar,ED-SB Strike Bracket, ED-GB5 Key Box, Key Cylinder, Latch Protecto
ED51B Black - Panic Shield, PB1100 Panic Bar, ED-SB Strike Bracket,ED-GB5 Key Box, Key Cylinder, Latch Protector, Jamb Stop
ED51BL Black - Panic Shield, PB1142 42" Panic Bar, ED-SB Strike Bracket,ED-GB5 Key Box, Key Cylinder, Latch Protector, Jamb Stop
ED51BM Black - Panic Shield, PB1100SS Stainless Steel Panic Bar,ED-SB Strike Bracket, ED-GB5 Key Box, Key Cylinder, Latch Protector, Ja
ED51BF Black - Panic Shield, PB1100FR Fire Rated Panic Bar, ED-SB Strike Bracket,ED-GB5 Key Box, Key Cylinder, Latch Protector, Jamb St
ED51BLM Black - Panic Shield, PB1142SS 42" Stainless Steel Panic Bar,ED-SB Strike Bracket, ED-GB5 Key Box, Key Cylinder,Latch Protector,
ED51S Silver - Panic Shield, PB1100 Panic Bar, ED-SB Strike Bracket,ED-GB5 Key Box, Key Cylinder, Latch Protector, Jamb Stop
ED51SL Silver - Panic Shield, PB1142 42" Panic Bar, ED-SB Strike Bracket,ED-GB5 Key Box, Key Cylinder, Latch Protector, Jamb Stop
ED51SM Silver - Panic Shield, PB1100SS Stainless Steel Panic Bar,ED-SB Strike Bracket, ED-GB5 Key Box, Key Cylinder, Latch Protector, J
ED51SF Silver - Panic Shield, PB1100FR Fire Rated Panic Bar, ED-SB Strike Bracket,ED-GB5 Key Box, Key Cylinder, Latch Protector, Jamb S
