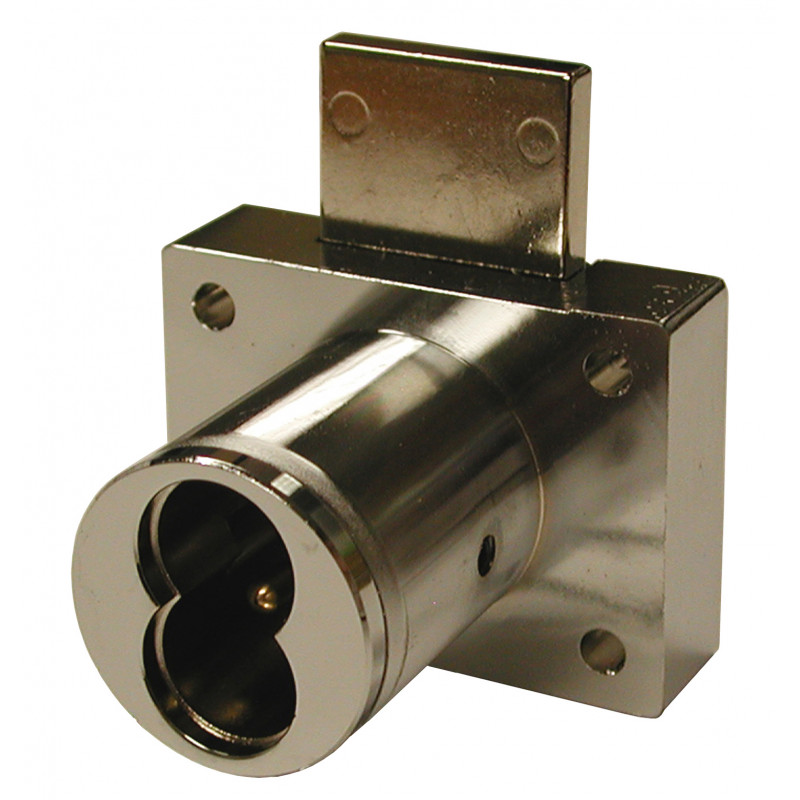

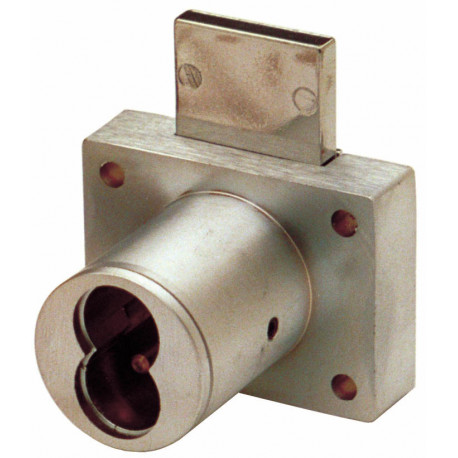

Olympus 721DW Drawer Deadbolt Lock Body

721DW

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$33.71

30% Off

$48.15

?

Details: Olympus 721DW Drawer Deadbolt Lock Body

Features

  • Cabinet lock - deadbolt drawer lock
  • Field reversible - includes all parts necessary to convert to a drawer lock
  • Similar to Best original 3L series
  • ANSI/BHMA No. E07041/E07042
  • Accepts Best, Arrow, Falcon or equivalent IC cores
  • Standard function: locks are non-handed with key removable in the locked and unlocked position.
  • Key-retaining* function: Specify 721DW-KR. For correct operation, cycle lock to the locked position before inserting core.
  • Barrel diameter: 1-1/8"
  • Barrel length: 1-1/4" or 1-3/8"
  • US26, US26D, US3 or US10B finish
  • (1-3/8" available in 26D only)
  • Packed 10 per box
  • US Patent Nos: 4,899,563; 4,920,774
  • *Key-retaining = key removable in the locked position only.
  • WARNING (Proposition 65)

Includes

  • 721DW (1-1/4") lock includes:
  • 3 ea. 10-350 plastic spacers
  • 1 ea. 10-054 1/4" plastic bar strike
  • 1 ea. 10-057 0.65" plastic bar strike
  • 1 ea. 725-PA plastic actuator to functionally test lock without core
  • 1 ea. 725-1 spacer to fit 6 or 7 pin SFIC cylinders
  • 1 ea. 721DR-11 door prong driver
  • 1 ea. 721DW-11 drawer prong driver
  • Contains all parts necessary to convert to a drawer lock
  • 721DW (1-3/8") lock includes:
  • 1 ea. 10-054 1/4" plastic bar strike
  • 1 ea. 725-PA plastic actuator to functionally test lock without core
  • 1 ea. 725-1 spacer to fit 6 or 7 pin SFIC cylinders
  • 1 ea. 721DR-11 door prong driver
  • 1 ea. 721DW-11 drawer prong driver
  • Contains all parts necessary to convert to a drawer lock

Cores for Locks

  • All locks sold less core
  • Accepts Best, Arrow, Falcon or equivalent IC cores
  • See our IC core section for available cores

Available Separately

  • 10-052 slotted strike
  • 10-055 1/2" plastic bar strike
  • 10-058 3/8" plastic bar strike
  • Plastic spacers - 10-348, 10-349, 10-350
  • ETS1-125 through-bolt trim plate 1/8" thickness
  • ETS1-250 through-bolt trim plate 1/4" thickness
  • ETS1-PL through-bolt trim pull
  • ETS1B through-bolt trim spacer
  • ETST1 through-bolt trim spacer template
  • TR78 trim ring

Downloads

Olympus Standard Functions, Key Retaining

Standard Function

Key removable in the locked or unlocked position. Locks ship with standard function unless key retaining is specified at time of order.

Key Retaining

The key cannot be removed from the lock while in the "unlocked" position. Key-retaining function is generally used in instances where cabinets or drawers should not be left unlocked.

Available Model Numbers and Combinations

Model/SKUAttributes
721DW-KR-138 US3 VH Included, 1-3/8", Not Included, Bright Brass, Not Included, Vertical Hand
721DW-KR-138 US3 IH Included, 1-3/8", Not Included, Bright Brass, Not Included, Inverted Hand
721DW -LB US3 VH Not Included, 1-1/4", Included, Bright Brass, Not Included, Vertical Hand
721DW-KR-138 US3-SP1 VH Included, 1-3/8", Not Included, Bright Brass, Included, Vertical Hand
721DW-KR-138 US3-SP1 IH Included, 1-3/8", Not Included, Bright Brass, Included, Inverted Hand
721DW-KR-138 10B VH Included, 1-3/8", Not Included, Not Included, Vertical Hand
721DW -LB US3 IH Not Included, 1-1/4", Included, Bright Brass, Not Included, Inverted Hand
721DW-KR-138 10B IH Included, 1-3/8", Not Included, Not Included, Inverted Hand
721DW-KR-138 10B-SP1 VH Included, 1-3/8", Not Included, Included, Vertical Hand
721DW -LB US3-SP1 VH Not Included, 1-1/4", Included, Bright Brass, Included, Vertical Hand
721DW-KR-138 10B-SP1 IH Included, 1-3/8", Not Included, Included, Inverted Hand
721DW-KR-138 -LB 26D VH Included, 1-3/8", Included, Not Included, Vertical Hand
721DW-KR-138 -LB 26D IH Included, 1-3/8", Included, Not Included, Inverted Hand
721DW-KR-138 -LB 26D-SP1 VH Included, 1-3/8", Included, Included, Vertical Hand
721DW -LB US3-SP1 IH Not Included, 1-1/4", Included, Bright Brass, Included, Inverted Hand

View All Model Numbers and Options
