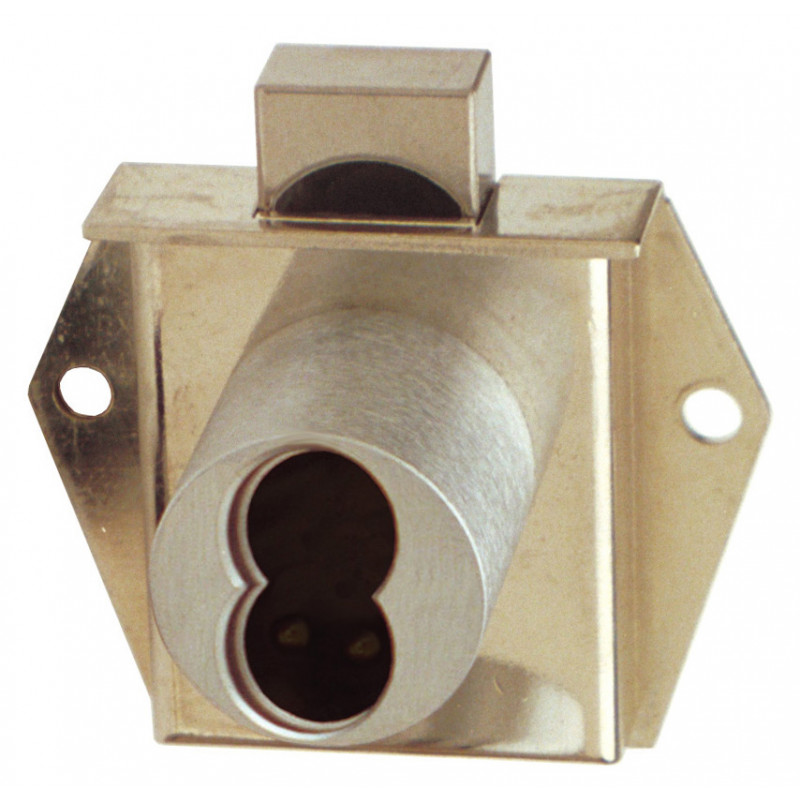

Olympus 725MD Mortise Mount Cabinet Deadbolt Door Lock

725MD

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$29.96

30% Off

$42.80

?

Details: Olympus 725MD Mortise Mount Cabinet Deadbolt Door Lock

Features

  • Cabinet lock - Mortise mount
  • Deadbolt locking mechanism
  • Key retaining function available for DW-VH or DW-IH applications
  • Accepts Best, Arrow, Falcon or equivalent IC cores
  • Accepts 6 or 7 pin cores
  • Barrel diameter: 1-1/8"
  • Barrel length 1-1/16"
  • US26, US26D, US3, US4 or US10B finish(see finish chart)
  • Retrofits Best 5L series cabinet locks
  • WP725 and WP726 plastic spacers available separately
  • Packed 10 per box
  • WARNING (Proposition 65)

Available Configurations

  • Left-hand door = 725MD-DR-LH
  • Right-hand door = 725MD-DR-RH
  • Drawer-vertical = 725MD-DW-VH
  • Drawer-inverted = 725MD-DW-IH
  • Drawer-vertical, key-retaining = 725MD-DWKVH

Cores For locks

  • All locks sold less core
  • Accepts Best, Arrow, Falcon or equivalent IC cores
  • See our IC core section for available cores

Includes

  • 1 ea. 725-1 spacer for 6 pin cores
  • 1 ea. 725-PAplastic actuator to functionally test lock without core
  • 1 ea. 725-SP-MD slotted rectangular strike (stamped brass)

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
725MD-DR-LH 26D 1-1/16" - 1-1/2", Left Hand,
725MD-DR-LH US26 1-1/16" - 1-1/2", Left Hand, Bright Chrome
725MD-DR-LH US3 1-1/16" - 1-1/2", Left Hand, Bright Brass
725MD-DR-LH US4 1-1/16" - 1-1/2", Left Hand, Satin Brass
725MD-DR-LH 10B 1-1/16" - 1-1/2", Left Hand,
725MD-DR-RH 26D 1-1/16" - 1-1/2", Right Hand,
725MD-DR-RH US26 1-1/16" - 1-1/2", Right Hand, Bright Chrome
725MD-DR-RH US3 1-1/16" - 1-1/2", Right Hand, Bright Brass
725MD-DR-RH US4 1-1/16" - 1-1/2", Right Hand, Satin Brass
725MD-DR-RH 10B 1-1/16" - 1-1/2", Right Hand,
725MD3DR-LH US26 1-3/8" - 1-3/4", Left Hand, Bright Chrome
725MD3DR-LH US3 1-3/8" - 1-3/4", Left Hand, Bright Brass
725MD3DR-LH US4 1-3/8" - 1-3/4", Left Hand, Satin Brass
725MD3DR-LH 10B 1-3/8" - 1-3/4", Left Hand,
725MD3DR-RH US26 1-3/8" - 1-3/4", Right Hand, Bright Chrome

View All Model Numbers and Options
