  4. SECO-LARM SD-962AR-36A Rim-Type Exit Device for Exit Doors, Push-to-Exit Bar

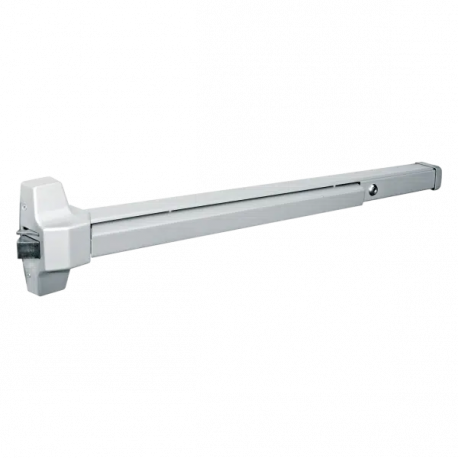

SECO-LARM SD-962AR-36A Rim-Type Exit Device for Exit Doors, Push-to-Exit Bar View larger

SECO-LARM

SECO-LARM SD-962AR-36A Rim-Type Exit Device for Exit Doors, Push-to-Exit Bar

SD-962AR-36A

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$129.70

Details: SECO-LARM SD-962AR-36A Rim-Type Exit Device for Exit Doors, Push-to-Exit Bar

The ENFORCER SD-962AR-36A Rim-Type Exit Device, when mounted on the inside of a door to block entry to a protected premises, securely locks the door from outside access while allowing users inside the protected premises to exit. The stainless steel enclosure protects the exit device from abuse, yet easily unlocks the door from the inside by users who require exit. It can be connected to an entry-type lever trim or to any physical locking device on the outside of the door in order to allow entry to authorized personnel.

Features

  • Pushbar is UL Listed in the U.S.
  • Allows exit from inside while locked from outside
  • Reversible, non-handed design
  • For metal or wood doors up to 13/4" (44mm) thick
  • Stainless-steel 3/4" (19mm) throw latch bolt
  • Separate deadlocking latch - Prevents the use of credit cards or similar means to open the latch bolt
  • Allen-type 1/4-turn dogging lock - Allows the exit bar to be unlocked for extended periods of time
  • Includes all needed hardware for typical installations
  • Works with standard external door handle/lock devices such as the SD-962HL-4A (not included)
  • Fits doors from 30" (76cm) to 48" (122cm) wide
  • Heavy-duty steel construction
  • Stainless steel spring

Specifications

Door Type
1-3/4" (44.5mm) thick, wood or metal
Hand Type
Non-handed
Latch Bolt
Stainless steel, 3/4" (19mm) throw
Dead Latch
Stainless steel, 5/8" (16mm)
Strike
For 5/8"(16mm) stop plus shim for 1/2" (12.7mm) stop
Spring
Stainless steel
Chassis
Steel
Cover
High-density, rust-resistant alloy
Rail Assembly
Steel
End Cap
Steel
Dogging
Allen-type dogging standard
Dimensions
32-3/4"x6-1/4"x2-1/2" (832x158x64 mm)
Weight
6-lb 10-oz (3.0kg)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
