  5. ABB Installation Products B108R-UPC Single Gang Flanged Old Work Shallow Box
ABB Installation Products B108R-UPC Single Gang Flanged Old Work Shallow Box View larger

ABB Installation Products

ABB Installation Products B108R-UPC Single Gang Flanged Old Work Shallow Box

B108R-UPC

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$2.93

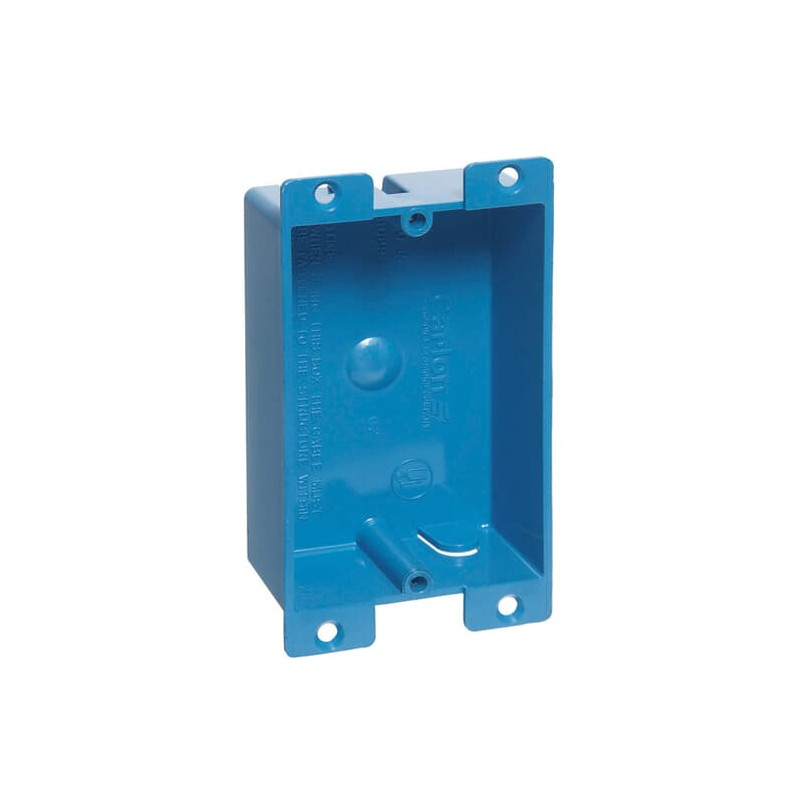

Details: ABB Installation Products B108R-UPC Single Gang Flanged Old Work Shallow Box

One-Gang Old Work Outlet Box, Volume 8 Cubic Inches, Length 3-5/8 Inches, Width 2-3/8 Inches, Depth 1-1/4 Inches, Color Blue, Material PVC, Mounting Means Mounting Ears

Descriptors

Category
Outlet box
Type
Outlet Boxes
Special Features
PVC construction for easier installation, greater performance and lower installation cost
Application
Designed and listed for use with non-metallic sheathed cable in accordance with Article 314 of the National Electrical Code

Specifications

Material
PVC
Color
Blue
Cubic Capacity
8 cu in
Knockouts
Yes

Classifications

Brand Name
Carlon / Nutek
Standard
UL E11461

ETIM Classification

ETIM
EC002601 Box/housing for built-in mounting in the wall/ceiling
Mounting method
Other
Shape
Rectangular
Construction type
Device connection box (round/square)
Equipped with
None
Length
3.625 inch
Width
2.325 inch
Mounting switching equipment
Screwing
With screws
N
Pipe locking
N
Pipe locking optional
N
Inlet from the rear
N
Material
Plastic
Sealable
N

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Documents/Support Tools

Sales Drawing
