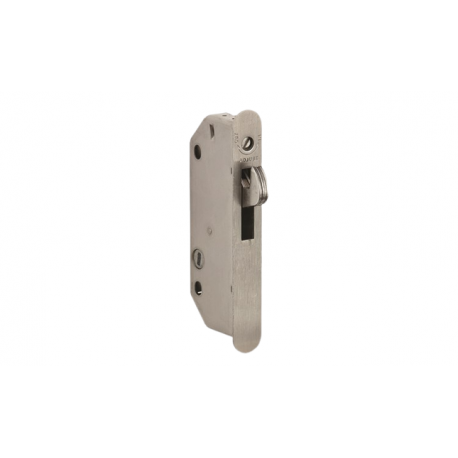

Reduced price! Adams Rite 5017 Wood Door Deadlock/Deadlatch to Secure Siding Wood doors View larger

Adams Rite

Adams Rite 5017 Deadlock/Deadlatch for Wood Door

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$51.75

40% Off

$86.25

Details: Adams Rite 5017 Deadlock/Deadlatch for Wood Door

5017 Deadlock/Latch provides the strength and deeper backset required to secure sliding wood doors.

Features

  • Cylinder Backset: 1-3/16" [30.2 mm]; 1-1/4" [31.8 mm] including faceplate.
  • Case: Measures 1/2" × 4" × 1-19/32" deep [12.7 mm x101.6 mm × 40.5 mm deep]. Stainless steel.
  • Bolt: Three-ply laminated stainless steel. Designed to withstand approximately one-half ton of either horizontal or vertical force. Anti-lift bolt stops both door-from-jamb pry bar attacks and attempts to lift the door from its track.
  • Cylinder Pull: (4026 Pull) Five pin tumbler cylinder in zinc alloy housing. Standard finish 130 Satin Aluminum.
  • Lock: Stainless steel, 5/8" × 4-1/2" [15.9 mm × 114.3 mm] with radiused ends.
  • Mounting: By throughbolts, which also secure the inside turn and outside cylinder when installed.
  • Turn: 1015 Turn available with 1016 blank plate shown for doors from 5/6" [21.2 mm] to 2-1/4" [57.2 mm] thickness. Without blank plate turn available (for use with cylinder pull) on doors from 1-7/16" [36.5 mm] to 2" [50.8 mm] thickness. Standard finish 130, Satin Aluminum enamel.
  • Standard Package: Cylinder pull available separately.

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
5017-00 Standard
5017-02 Self Latching
