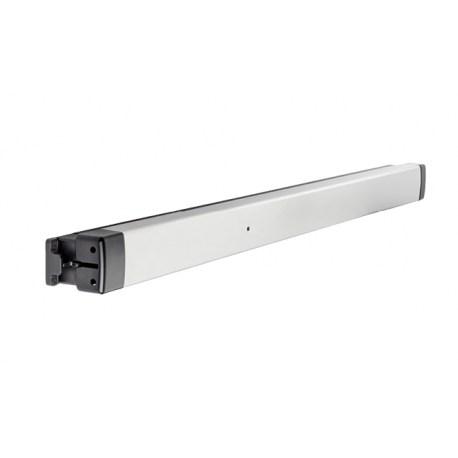

Details: Adams Rite 8800 Narrow Stile Starwheel Rim Exit Device- Life-Safety

Materials

Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.

Handing

Device is non-handed. Lever Entry Trim is field reversible.

Pushbar Length

Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.

Door Thickness

Suits 1-3/4” standard, up to 2-1/4”.

Stile Width

Minimum 2” Stile. Fits narrow, medium, and wide stile aluminum doors.

Projection

2-5/8” when fully projected, 1-5/8”when dogged.

Dogging

Standard dogging with hex key or cylinder dogging option. Electric dogging also available.

Fasteners

Standard self-tapping screws.

Cylinders

 (available separately)

Cylinder x Fixed Pull (Function 03)

Accepts any standard rim cylinder.

3080 Entry Trim (Functions 08, 09)

Accepts any standard diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately).

Warranty

Five year limited.

Starwheel Bolt

When door closes, the interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.

Strike

Made of hardened steel. Standard strike and narrow versions for centering doors in 4" jamb. (Both strikes are included).

Removable Mullion - 3890

Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. Available in anodized 313 and 628. Specify door height when ordering.

Options and Accessories

Silent Electrification Motorized Latch Retraction

The SE Motorized Latch Retraction option provides near-silent operation for quiet environments such as hospitals, offices, hotels, and libraries where solenoid-driven devices would be disruptive.

Electric Latch Retraction:

The EL option is offered only for our Rim Exit devices and uses a solenoid mounted in the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. The EL option is available for rim exit devices only.

Alarmed Exit Device:

This battery-operated option emits a loud (95 decibel) alarm to notify management of unauthorized exit. Available on minimum openign width 36". Cannot be ordered with other exit device options.

Request to Exit (REX) – Monitor / Signal Switch

Mounted in the exit device pushbar on the hinge end, the switch can be used to activate signal light, horn, monitor, or other devices.

Cylinder Dogging

For management control of dogging exit devices for life-safety exit devices only.

Electric Dogging

A holding magnet keeps the pushbar depressed (set manually) and the latch retracted for lower profile exit devices, resulting in less damage and quieter operation.

Matching End Caps

Matching end caps are available for applications where it is preferable that the end caps match the finish of the exit device. Available for US finishes only.

Available Finishes

313 Dark Bronze Anodized, 335 Black Anodized, 628 Clear Anodized, US3 Bright Brass, US4 Satin Brass, US32 Bright Stainless, US32D Satin Stainless.
