Reduced price! Aiphone AC-10K-1G 1-Gang Proximity Reader with Access Keypad View larger

AIPHONE

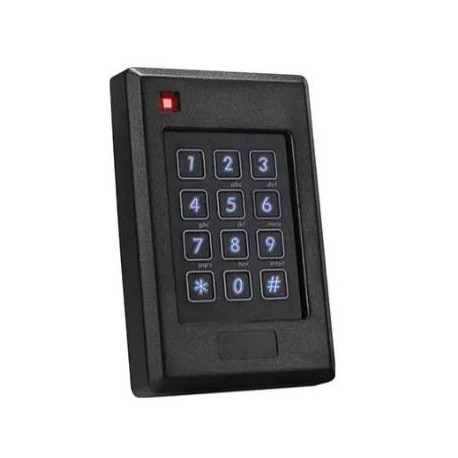

Aiphone AC-10K-1G 1-Gang Proximity Reader with Access Keypad

AC-10K-1G

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$320.60

30% Off

$458.00

Details: Aiphone AC-10K-1G 1-Gang Proximity Reader with Access Keypad

The AC-10K-1G is a combination 125 kHz Wiegand proximity reader and security keypad for the AC Series access control system. It offers up to a 6" non-contact read range with clamshell cards. The reader is compatible with Aiphone 40-bit credentials, certain HID, AWID, and Pyramid credentials. The keypad allows users to enter pin codes for entry, either on their own or in conjunction with a card swipe.

Features

  • Access Control
  • Embedded Card Readers

Specifications

Power Input
5-14V DC
Power Draw
50mA typical, 115mA peak
Frequency
125 kHz
Certifications
CSA, FCC, CE, C-Tick
Supported Credentials
Aiphone 40-bit, HID, AWID, Pyramid
UL Listing
UL 294
Operating Temp
-40 degree -149 degree F (-40 degree -65 degree C)
Dimensions
4-5/16" H x 3" W x 11/16" D

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
