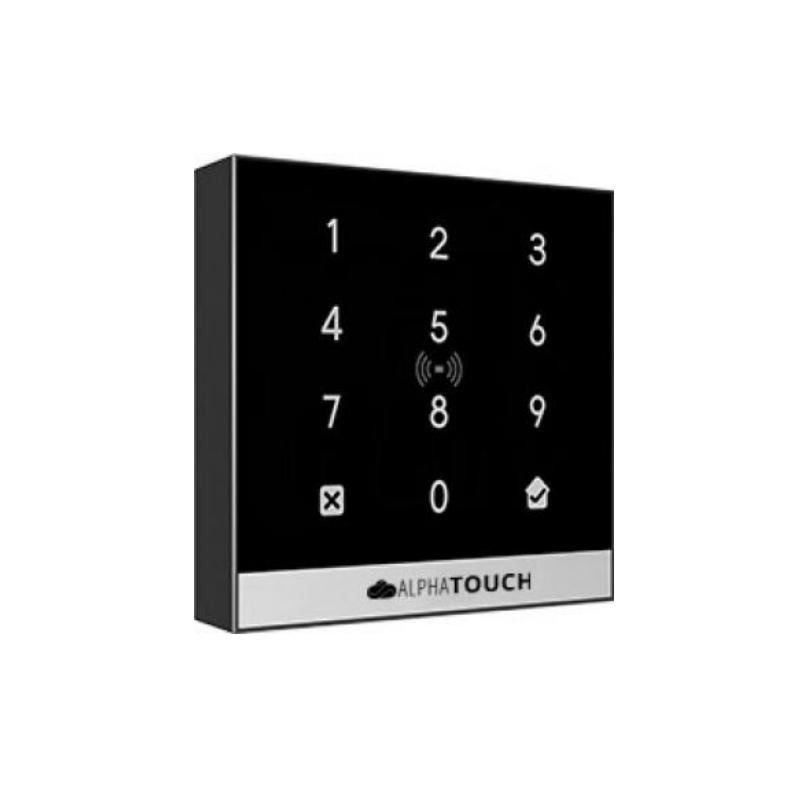

Reduced price! Alpha Communication ATFP102 AlphaTouch Flex Virtual Panel View larger

Alpha Communications

Alpha Communication ATFP102 AlphaTouch Flex Virtual Panel

ATFP102

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$293.30

40% Off

$488.80

Details: Alpha Communication ATFP102 AlphaTouch Flex Virtual Panel

The elegant Alpha Communications ATAC102 AlphaTouch series access control stations provide the most advanced access control and door release available, for residential or commercial applications.These attractive stations are easily surface mounted. Due to its advanced design and TCP/IP protocol, the ATAC102 does not require any controllers, servers, power supplies or switchers, and simply requires a LAN connection and the associated PoE switch(es).All ATAC102 stations feature prox. tag, PIN code and NFC capability, and other functions based on the systems programming and requirements.

Features

  • Uses simple CAT5 / CAT6 LAN wiring and RJ45 connectors - 10/100Mbps adaptive
  • Stations are connected to a PoE switch output or PoE injector (PoE IEEE802.3af)
  • Easy Installation (surface mounting)
  • Rugged and Reliable. Simple to Operate
  • Low profile surface station protrudes only 2.00" from wall
  • (1) built in Form 'C' door release relay
  • IP65 Rated

Specifications

Dimensions
3.40"W (87mm) × 3.40"H (87mm) × 2.00"D (51mm)
Temperature Range
-4 degree F to 131 degree F (-20 degree C to 55 degree C)
Working Humidity
10-90%, non condensing
Tamper alarm
Supported
Wiegand
Supported
RFID card reader
13.56MHz & 125kHz

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Product Specification
