Reduced price! Alpha Communication SC-100HG Window/Partition Intercom System

View larger

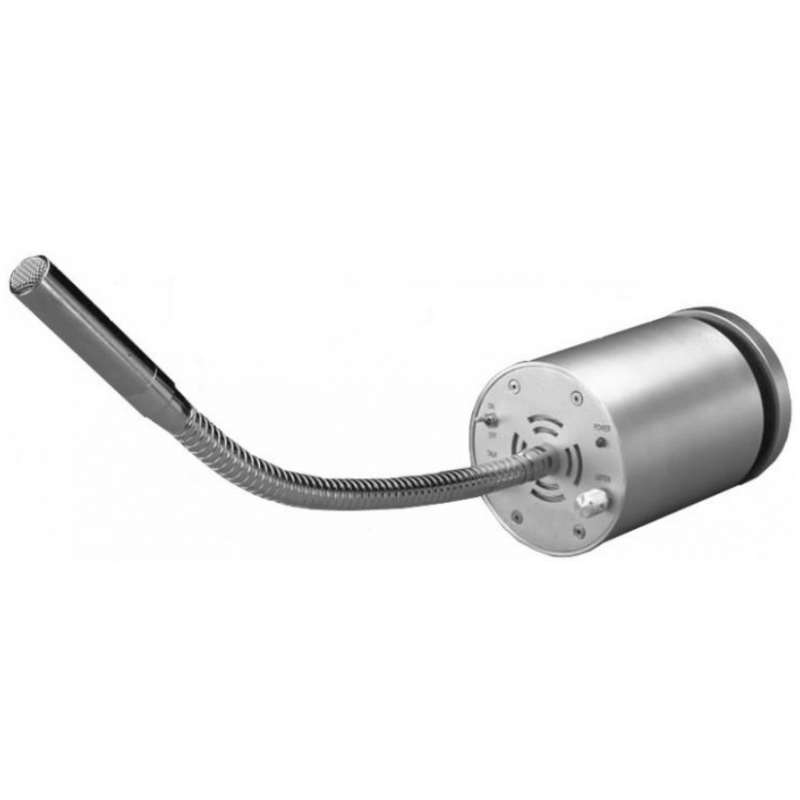

Alpha Communication SC-100HG Window/Partition Intercom System

Model:

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Alpha Communication SC-100HG Window/Partition Intercom System

The Ticket Window Intercoms(s) shall be Alpha Communications / Haven SC-100 series or equivalent.The Ticket Window Intercom(s) shall be made of heavy-duty Aluminum and shall be designed to mount directly into a 3.25" to 3.50" diameter window partition opening (or larger opening with associated adapter plate/ring).Unit(s) shall feature a built-in gooseneck microphone (at operator side), as well as controls for Listen volume, talk, volume, on-off switch, charger socket (on battery unit) and Power On LED. NOTE: Models SC-100H and SC-100HL do not come with the gooseneck microphone.

Features

Clear, 2-way hands-free voice communication
Avoids shouting, repetition, misunderstanding
Rugged Aluminum Construction
Background noise level monitoring
Quality electronic design and engineering
Simple, one-person installation
Self-powered with rechargeable battery option (SC-100L and SC-100HL models)
Fast plug-in recharge
Bullet-resistant option.
Export (220VAC) option available
Sound amplifier does not exceed a 0.2% total harmonic distortion rating
Made in U.S.A.

Specifications

Outside Face Plate: Solid aluminum, anodized finish, tamper-resistant
Control Housing (Inside): Machined aluminum, anodized finish, tamper-resistant
Mounting: Partition hole 3.25 to 3.50 inch diameter (3.50" recommended) Please specify barrier thickness when ordering
Panel Controls: Listen volume, talk, volume, on-off switch, charger socket (on battery unit), Power On LED
Audio Frequency Response: Selectively shaped for maximum voice intelligibility
Audio Power: 2 watts per amplifier
Distortion: Less than 0.2%
Listen Mode: 20 dB compression
Talk Mode: Vox
Microphones: Electret (inside gooseneck mic. is 18.0" long). Optional 8.0" or 24.0" models avail., at extra cost. Please specify when ordering!
Power Supply: Input: 120 VAC, 60 Hz, Output: 18 VDC, 175mA
Useful time (on battery unit): 10 to 12 hours per charge (depends on usage)
Charge time (battery unit): 5 hours for full charge. Unit can be used while charging

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Product Specification

Alpha Communications Warranty
