  6. BEA Colibri One Unidirectional Motion Sensor for off-door Application
Reduced price! BEA Colibri One Unidirectional Motion Sensor for off-door Application View larger

BEA

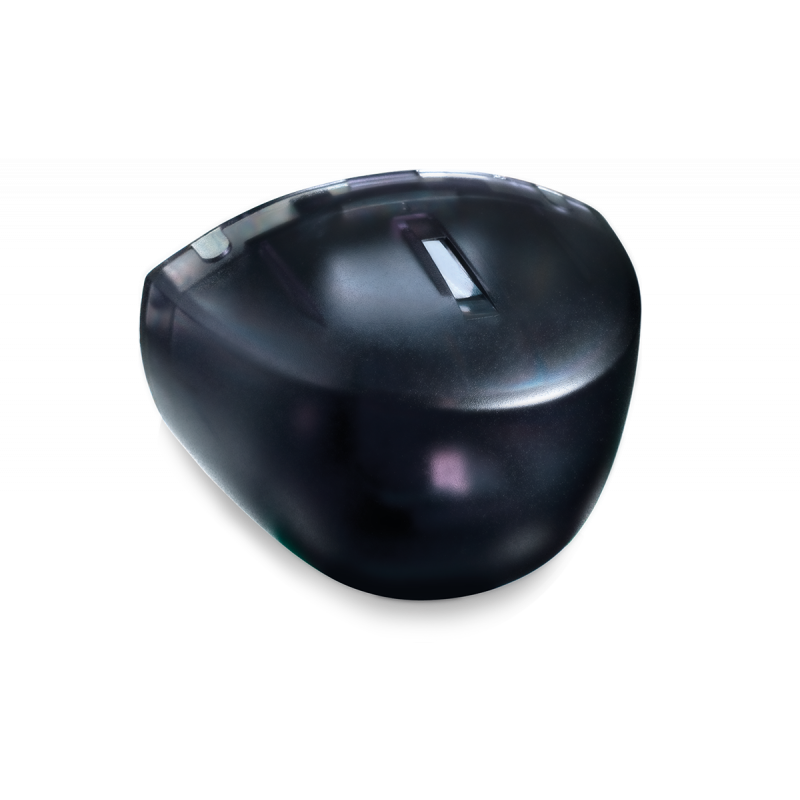

BEA Colibri One Unidirectional Motion Sensor for off-door Application

10COLIBRI

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$288.21

10% Off

$320.23

Details: BEA Colibri One Unidirectional Motion Sensor for off-door Application

BEA's Colibri One is a motion sensor designed for the detection of pedestrians, slow moving vehicles and other objects in motion.

Colibri One has the sensitivity to detect objects moving as slow as 2 in/s; and its compact size makes it a perfect motion detector for any commercial or industrial application, both indoor and outdoor.

Along with common pedestrian and industrial applications, this sensor has been used in custom mass transit configurations on trains and buses.

  • Variable sensitivity adjustment provide different detection areas
  • Compact size provides flexibility in mounting
  • Pairs well with LED Signal Lights for warning indication applications
  • Lateral angle adjustment for ceiling, wall and low level mount versatility
Technology
Microwave Doppler Radar
Detection Mode
Motion
Transmitter Frequency
24.150 GHz
Transmitter Radiated Power
< 20 dBm EIRP
Min. Detection Speed
2 in / s (measured in sensor axis)
Supply Voltage
12 — 24 VDC 30% / −10%
Mains Frequency
50 — 60 Hz
Max. Power Consumption
< 2 W
Output
solid-state-relay (free of potential change-over contact)
Max. Contact Current
100 mA
Max. Contact Voltage
35 VDC / 24 VAC
Mounting Height
72 in — 120 in (6 ft — 10 ft)
Degree of Protection
IP54
Temperature Range
−4 °F — 131 °F
Dimensions
3.15 in (W) × 2.36 in (H) × 2.17 in (D)
Tilt Angles
0° — 90° vertical; −30° — 30° lateral
Material
ABS & polycarbonate
Weight
5 oz
Cable Length
96 in (8 ft)
Norm Conformance
R&TTE 1999 / 5 /EC; EMC 2004 / 108 / EC
< 5 mW / cm2
