> >>>>Brass Craft CSSL54- 1/2 in. FIP x 1/2 in. MIP (3/8 in. FIP Tap)
Brass Craft Service Parts CSSL54- 1/2 in. FIP x 1/2 in. MIP (3/8 in. FIP Tap) View larger

Brass Craft

Brass Craft CSSL54- 1/2 in. FIP x 1/2 in. MIP (3/8 in. FIP Tap)

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$15.99

Details: Brass Craft CSSL54- 1/2 in. FIP x 1/2 in. MIP (3/8 in. FIP Tap)

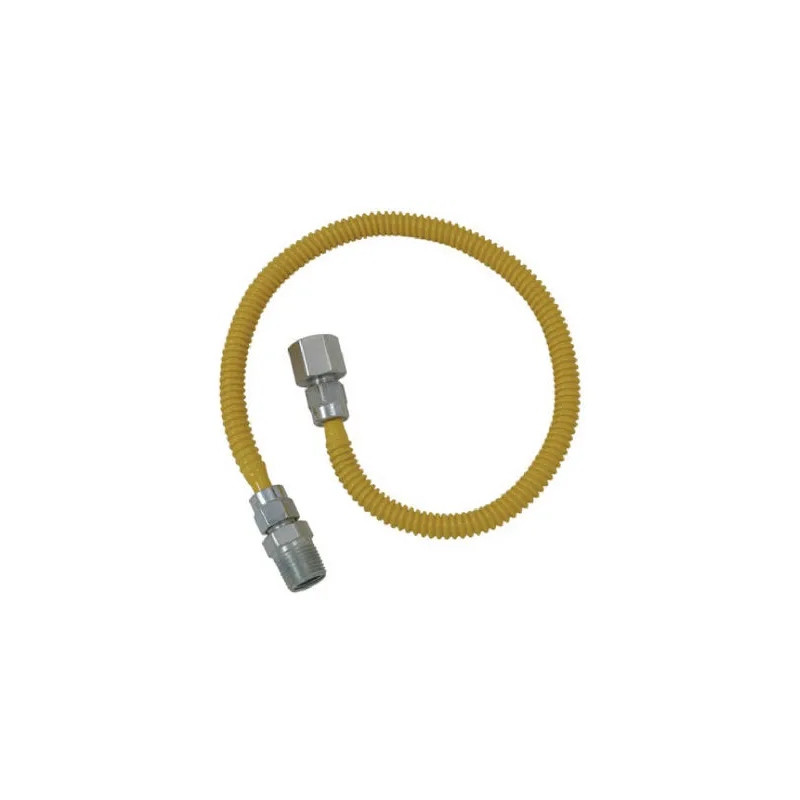

BrassCraft's ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.

Gas connectors may not be permitted for all uses in all locations. Consult with a professional installation expert or a plumber to ensure compliance with all applicable codes.

Features

  • 1/4 in. I.D. (3/8 in. O.D.) corrugated stainless steel with corrosion resistant coating
  • Steel fittings included: 1/2 in. FIP and 1/2 in. MIP (3/8 in. FIP)
  • Ideal for low demand appliances such as dryers, decorative stoves and gas log fireplaces
  • Use with natural, manufactured, mixed and liquefied petroleum (LP or propane) gases and LP gas-air mixtures
  • ProCoat coating corrosion resistant to harsh chemicals as well as UV rays and salt
  • Smooth, burnished connector ends seal with less torque, making installation easier
  • High tensile strength stainless steel is less susceptible to work hardening
  • Deep corrugations enhance flexibility and maneuverability of connector during installation
  • Gas connector is 100% leak tested
  • Approved for indoor and outdoor use
  • Temperature rating: -40 degree F to 150 degree F
  • Pressure rating: 1/2 psi maximum
  • Not Certified
  • CSA certified to ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27
  • Designed, machined and assembled in the USA

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
