Reduced price! Codelocks 91181 CL515 Tubular Latchbolt,Marine Grade,(Code Free)Passage Function Gate Box Kit View larger

Codelocks

Codelocks 91181 CL515 Tubular Latchbolt,Marine Grade,(Code Free)Passage Function Gate Box Kit

91181

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$453.42

25% Off

$604.56

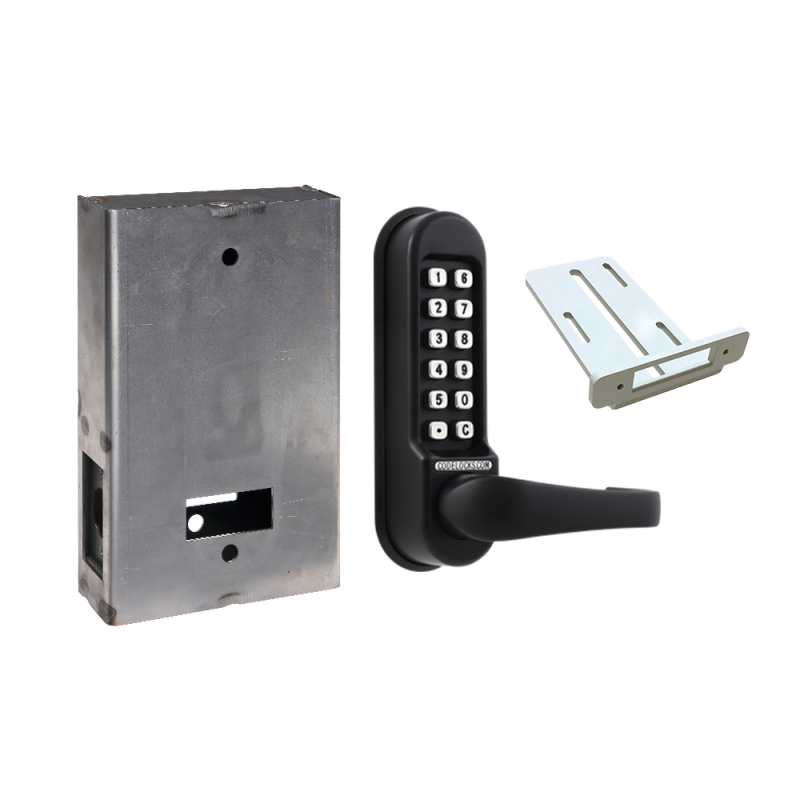

Details: Codelocks 91181 CL515 Tubular Latchbolt,Marine Grade,(Code Free)Passage Function Gate Box Kit

Medium duty tubular Mortise latch with 'anti-shim' plunger. Latch retracts by turning inside handle freely, or the outside handle after code input. The CL515 model provides a Code Free option. The outside lever will retract the latch freely until disabled.

Features

  • Large full size lever handles with return to door.
  • Ball shape knob available.
  • Code Free access option.
  • Suitable for internal and external use.
  • Tumbler alignment for easy code change.
  • Large three coil lever return spring suitable for high traffic use.
  • Available in stainless steel.
  • Neoprene seals included.
  • Codelocks Fire Kit Packs can be fitted to latch locks for 30 or 60 minute fire doors. Tested in accordance with BS EN 1634-1:2008.
  • Back to back model available.

Specifications

Body Material
Zinc Alloy
Brand
Codelocks
Buttons
2 x 6
Code Change Method
Tumblers (Off Door)
Code Free Option
Yes
Codes
Single Code - 2,047 non sequential code combinations available
Dimensions
177mm (7") x 48mm (1 7/8)
Finish
Stainless Steel
Handed
Non Handed - Locks will fit doors hung on the left or right
Keypad
12 stainless steel buttons
Latch
Type 60mm Mortise Latch, 70mm Mortise Latch
Orientation
Vertical
Spindle
Two part 8mm (5/16) spring loaded spindle
Suitable For
Internal, External
User Types
Code

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
