> >Command Access PS210 Regulated 1.5A, 24V PS w/boost Circuitry for up to (2) Electric Latch Pullback Devices. Includes (1) solid State input/output
Reduced price! Command Access PS210 Regulated View larger

Command Access Technologies

Command Access PS210 Regulated 1.5A, 24V PS w/boost Circuitry for up to (2) Electric Latch Pullback Devices. Includes (1) solid State input/output

PS210

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$272.80

12% Off

$310.00

Details: Command Access PS210 Regulated 1.5A, 24V PS w/boost Circuitry for up to (2) Electric Latch Pullback Devices. Includes (1) solid State input/output

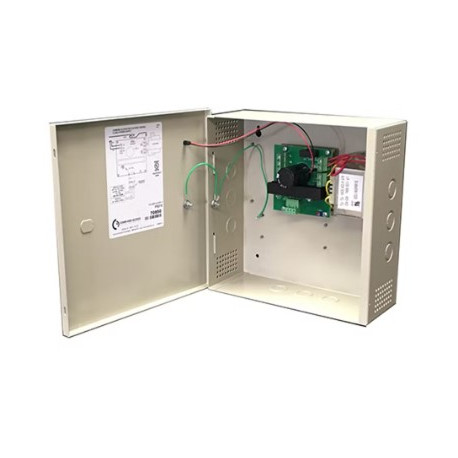

The PS210 power supply inputs 110-120VAC and deliver (1.5) amps @ 24VDC to (1) PTC fused output. It also provides (1) solid-state input trigger, protects system relays from shorts, grounds and surges. Its linear design makes it a perfect match for solenoid & motor driven exit devices, electric locks, electric strikes, and mag locks.

Features

  • Red = A/C Power indicator
  • Green = D/C Output indicator
  • Linear design insures ample inrush/hold current for latch retraction
  • Door mounted LED Power Indicator
  • Easy to remove euro connectors
  • UL294 6th Edition
  • Enclosure dimensions: PS210 (11" W × 11" H × 4" D).
  • 1/2" & 3/4" knockouts on all sides
  • Hinge-less removable cover; Cam lock not provided
  • Product Weight: PS210 - 10lbs
  • Shipment Weight: PS210 - 11lbs

Specifications

120 VAC, 60 Hz,
Input Fuse
2 Amp Fuse @ 250VAC
1.5A @ 24VDC
1 Solid State I/O's - 1.5A auto resetting fused outputs
Over-voltage protection
Output Voltage trim pot
Class 2 Rated power limited output
Input
1 independent, solid-state input triggered by N.C. dry contact
Solid-State Output
1 Auto Resetting rated 1.5 Amp
Enclosure
11"W x 11"H x 4"D
AC Fuse Type
5mm x 20mm
LEDs
Red = A/C Power Indicator, Green = D/C Output Indicator
Temperature Range
0 to 49 C
Maximum humidity
85%
Made in USA

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
