  3. Command Access PS220 Regulated Power Supply, 2-Lock, 2-Input/Output, 110/120 Volt AC 60 Hertz Input, 24 Volt DC 2 Ampere Output, With Fire Alarm Link, Power Tap:divider_com

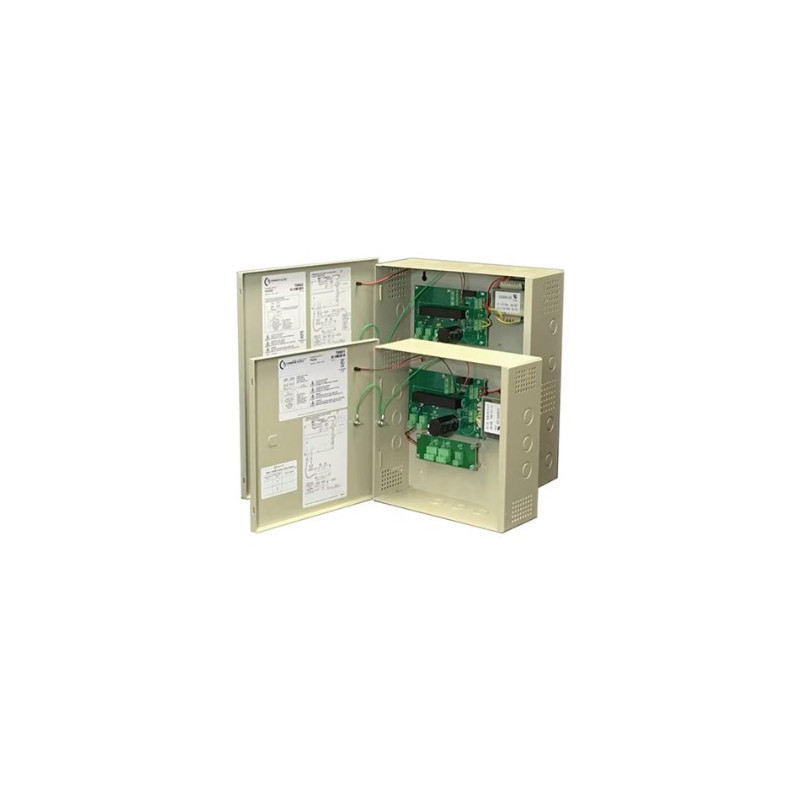

Reduced price! Command Access PS220 2A, 24V View larger

Command Access Technologies

Command Access PS220 Regulated Power Supply, 2-Lock, 2-Input/Output, 110/120 Volt AC 60 Hertz Input, 24 Volt DC 2 Ampere Output, With Fire Alarm Link, Power Tap:divider_com

PS220

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$362.50

12% Off

$411.93

Details: Command Access PS220 Regulated Power Supply, 2-Lock, 2-Input/Output, 110/120 Volt AC 60 Hertz Input, 24 Volt DC 2 Ampere Output, With Fire Alarm Link, Power Tap:divider_com

PS220/220B - 110-120VAC input power supplies that deliver (2) amps @ 24VDC to (2) PTC fused outputs. (2) solid-state input triggers, protects system relays from shorts, grounds and surges. Its linear design makes it a perfect match for solenoid & motor driven exit devices, electric locks, electric strikes, and mag locks.

Features

  • Red = A/C Power indicator
  • Green = D/C Output indicator
  • Orange = Battery Output Indicator
  • Linear design insures ample inrush/hold current for latch retraction
  • Door mounted LED Power Indicator
  • Easy to remove euro connectors
  • UL294 6th Edition
  • Enclosure dimensions: PS220 (11" W × 11" H × 4" D). PS220B (13" W × 15.5" H × 5" D).
  • 1/2" & 3/4" knockouts on all sides
  • Hinge-less removable cover; Cam lock not provided
  • PS220B accommodates (2) 12VDC 7 aH batteries
  • Product Weight: PS220 - 10lbs; PS220B - 14 lbs
  • Shipment Weight: PS220 - 11lbs; PS220B - 15 lbs
  • Temperature range: 0 to 49 C; 32 to 120 F
  • Maximum humidity: 85%

Specifications

Input Voltage
120 VAC, 60 Hz,
Input Fuse
2 Amp Fuse @ 250VAC
Output Voltage
2A @ 24VDC
Current Rating
2 Amps continuous; 3 Amp Boost @ 20% duty cycle
UL294 Sixth edition
Class 2 Rated power limited Output
Inputs
2 independent, solid-state inputs triggered by normally open dry contact
Solid-State Outputs 1
2 Auto Resetting rated @ 1.5 Amp ea
Enclosure
PS220 (11"W × 11"H × 4"D), PS220B (13"W × 15.5"H × 5"D) (accommodates two 7AH batteries)
AC Fuse Type
5mm × 20mm rated @ 2 Amp, 250VAC
LEDs
Red = A/C Power Indicator, Green = D/C Output Indicator, Orange = Battery Output Indicator
Temperature Range
0 to 49 C
Power Tap1
Continuous 24VDC with .5 Amp re-setable fuse
Fire Alarm Link

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
