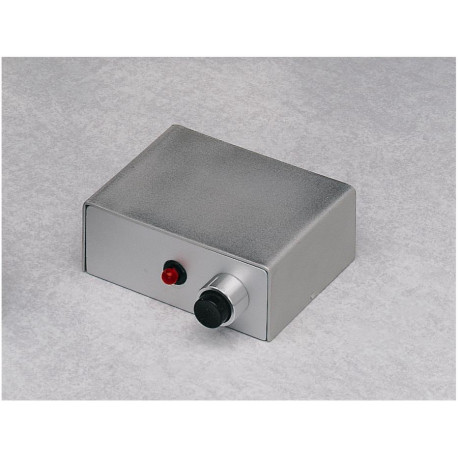

Details: Dortronics 5236 Series Push Button on Mini-Box Console

Versatile Electronic Control:-

The 5236 Series Push button Consoles are a simple cost effective solution for door control. Designed to be easily mounted under a desk for concealment or wall mounted for accessibility. A Receptionist, Bank or Retail clerk can lock or unlock and restrict the use of electrically operated entrance control systems, alarms, electric locks and other similar equipment. These actuation devices will limit operation to only authorized personnel.

Single or Multiple Door Control:-

Ideal for controlling single or multiple door access into buildings with electromagnetic locks or strikes. Utilize a 5236 series push button console to control from one to three doors. Other applications can include mode selection of day/night control for automatic door operators. Optional LED indicators may be used in combination with push buttons to indicate door status

Push buttons come standard as SPDT Momen- tary action.

Custom Switch / LED Configurations:-

Multiple push buttons and LEDs are available to meet any required operation. Double Pole Double Throw switches may be substituted instead of the standard single pole provided. Maintained Push buttons or Toggle switches may also be substituted in place of the standard Momentary Push buttons.

The 5236 Series Console is a compact size unit 2-1/2" long by 2" wide by 1" high it features a snap fit cover.
