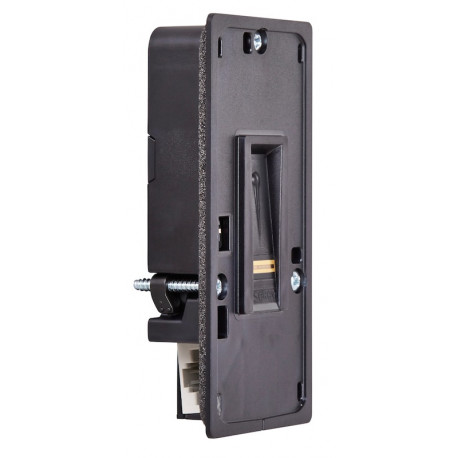

Ekey 101668 Home FS IN D RFID - Home Integra, Finger Scanner Integra 99 Fingers

Model: 101668

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Ekey 101668 Home FS IN D RFID - Home Integra, Finger Scanner Integra 99 Fingers

The ekey home finger scanner integra D RFID cards logo is a biometric sensor terminal for the registration of fingerprints by means of an RF line sensor from AuthenTec. It is also possible to identify MIFARE DESFire Ev1 RFID cards with at least 1 KB of memory. Up to 99 fingerprints and 99 cards can be stored. This ekey home finger scanner is used to identify authorized users and subsequently open house doors, apartment doors, garage doors, etc. The finger scanner is intended for use in both domestic and business applications. The ekey home finger scanner integra D RFID cards logo is designed for fixed mounting on mobile components, such as doors, and for use in protected outdoor areas. To operate the finger scanner, you will also need a matching design element, a compatible control panel, and a suitable power supply.

Specifications

Supply typ: DC
Maximum supply voltage: 24 V
Minimum supply voltage: 10 V
Supply voltage rating: 12 V
Maximum current consumption: 300 mA
Minimum current consumption: 85 mA
Current consumption rating: 90 mA
Maximum power: 3 W
Minimum power: 1 W
Power rating: 1 W
Minimum operating temperature: -25
