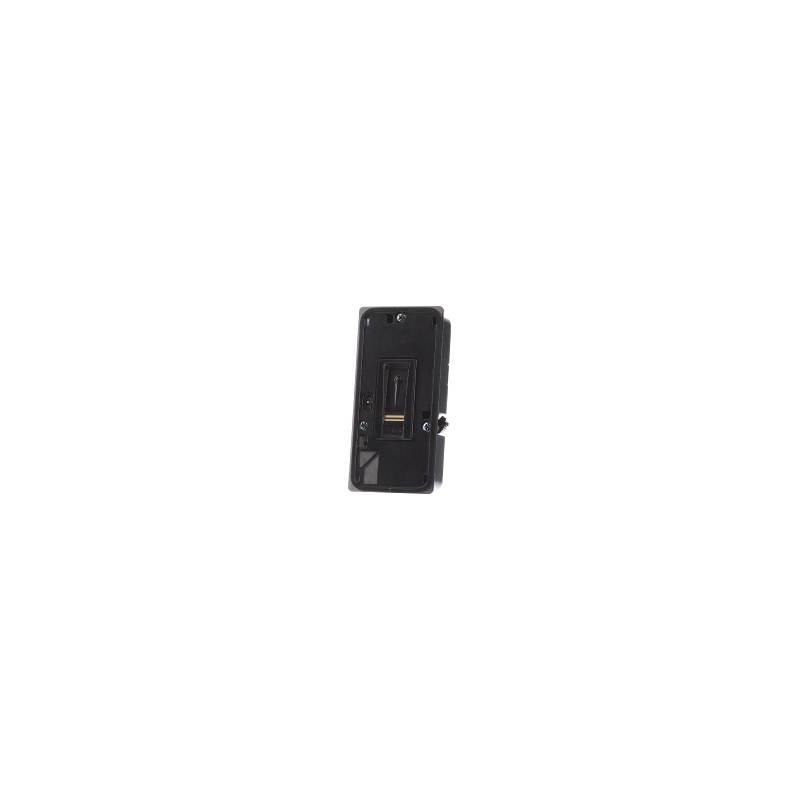

Ekey 101794 Home FS IN, Finger Scanner Integra 99 Fingers

Model: 101794

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Ekey 101794 Home FS IN, Finger Scanner Integra 99 Fingers

The ekey home finger scanner integra for electricians is a biometric sensor terminal for the registration of fingerprints by means of an RF line sensor from AuthenTec. This ekey home finger scanner is used to identify authorized users and subsequently open house doors, apartment doors, garage doors, etc. The finger scanner is intended for use in both domestic and business applications. The ekey home finger scanner integra is designed for fixed mounting on immobile components, such as masonry, and for use in protected outdoor areas. To operate the finger scanner, you will also need a matching design element, a compatible control panel, a suitable power supply, and matching mounting accessories.

Specifications

Supply typ: DC
Maximum supply voltage: 24 V
Minimum supply voltage: 10 V
Supply voltage rating: 12 V
Maximum current consumption: 300 mA
Minimum current consumption: 85 mA
Current consumption rating: 90 mA
Maximum power: 3 W
Minimum power: 1 W
Power rating: 1 W
Minimum operating temperature: -25
Ekey Warranty
