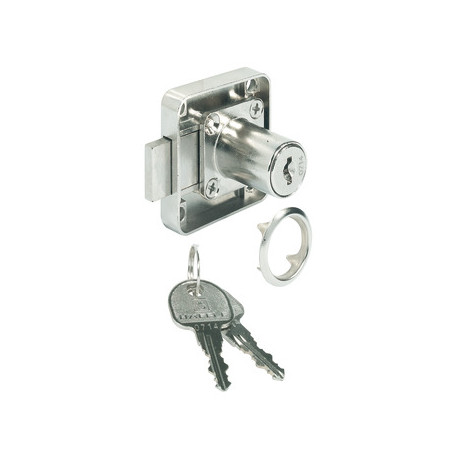

Hafele 232.27.720 Lock Symo Keyed Different Rim Drawer 22MM

Model: 232.27.720

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hafele 232.27.720 Lock Symo Keyed Different Rim Drawer 22MM

Specifications

Material: Lock case: Zinc alloy
Version: Key with black key cap
Mounting: Drawer version
Backset (mm): 25 mm
Cylinder housing length: 22 mm
Locking system: Standard profile
Closure type: Keyed to differ
Key change: Keyed different
Color/finish: Housing: matt nickel plated, Brass-plated
Backset D: 25 mm
Finish: Brass-plated
Cylinder shape: round cylinder
Cylinder(mm): 18 mm
Deadbolt throw dim.: 8 mm
Type of locking: with 6 plate levers
Installation: For screw fixing
with key: Yes
Supplied with: 1 deadbolt rim lock
2 keys, 1 cylinder rosette, Security pass and locking map with master key systems

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government,
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Certificate

Hafele Warranty
