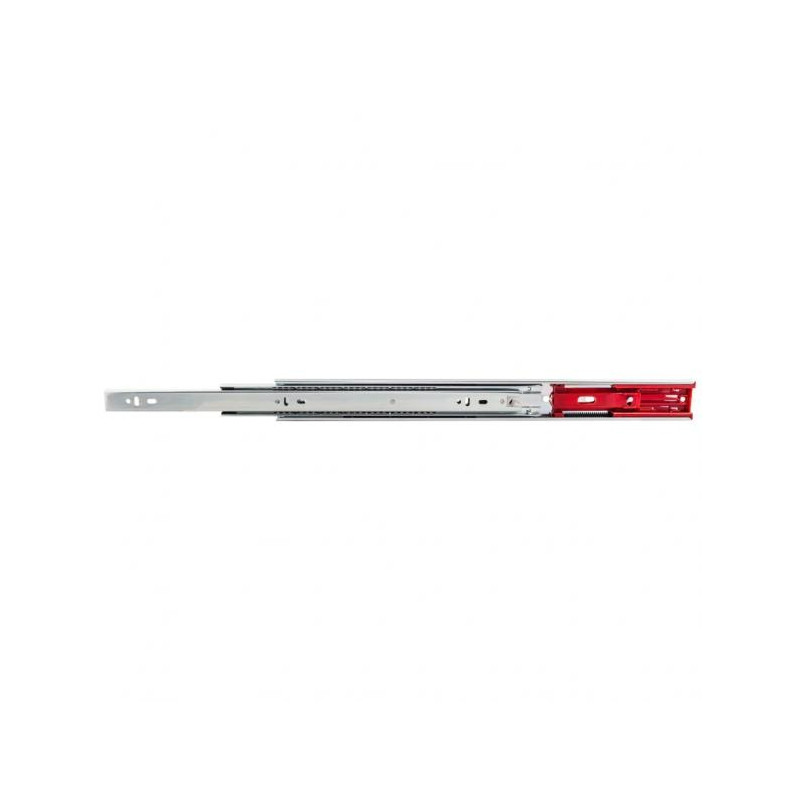

Hardware Resources 303-300 Heavy Duty Side Mount Ball Bearing Slides

Model: 303-300-

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Use With:-

Details: Hardware Resources 303-300 Heavy Duty Side Mount Ball Bearing Slides

Features

1/2" side spacing
Non-handed trigger disconnect release
1.0 mm × 1.0 mm × 1.2 mm cold rolled steel material
45 mm profile height
Clear zinc electroplated finish
Installation brackets available
6.3 mm Euro screw or #8 × 7/16" truss head screw is recommended
Full Extension Heavy Duty Dura Close Soft-close slide with relaxed pull force and ease of opening
Cage hold forward - Retains cage during drawer member installation
Synthetic rubber hold-in detent - prevents bounce back and roll out
Grade 1 ANSI/BHMA certified with 100 lb. load rating

Specifications

Closing: Soft-close
Minimum Cabinet Depth: 0.957
Type: Faceframe or Frameless
Adjustable: Yes
Load Rating: 100 lb
Extension: Full Extension
Brand: Hardware Resources
Height: 45 mm
Width: 0.957"
Patent: Pending
Mount Type: Side Mount
Warranty Period: Limited Lifetime

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
