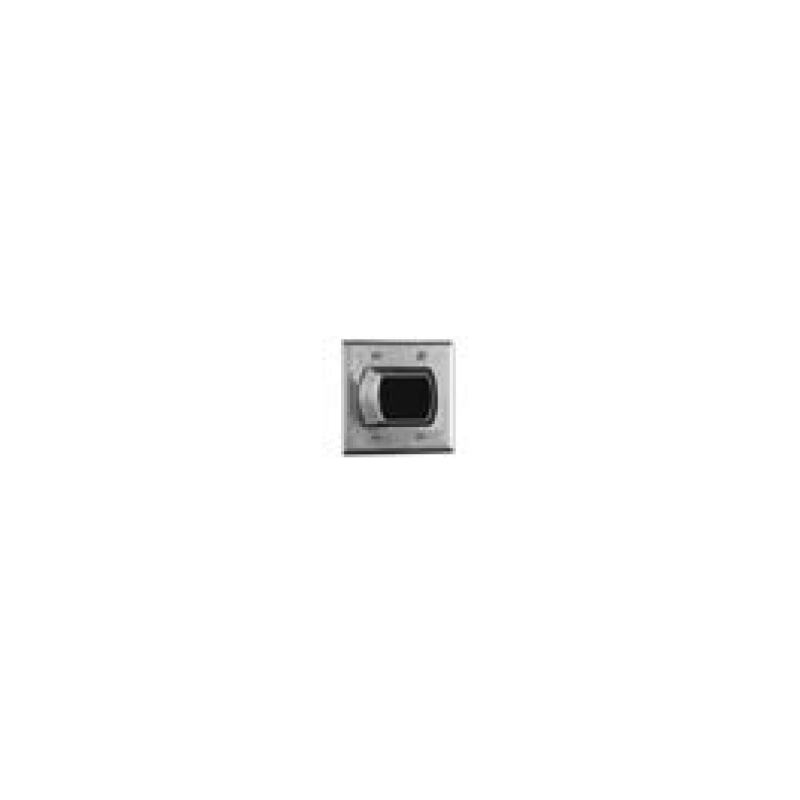

Details: Kaba Multihousing CQT Saflok Quantum III Multi-Channel Controller Expanded Multi-Channel Controller, Reader-Black

The Saflok Multi Channel Controller (MCC) will allow up to 12 individual pass level controlled relays. The standard MCC is available in 2 configurations, 8 relay and 12 relay. Saflok also has a 16 to 128 Expanded RFID only MCC available. Contact Saflok for additional information

The Saflok MCC is designed to expand on the single relay ECU when more floor control is necessary. The MCC can be used with any type Saflok card reader (SL2500, MT, Adese, Quantum RFID, Quantum 2 RFID)

The MCC relays should be wired in series with the elevator floor call buttons requiring control. A valid key card would need to be read by the card reader to activate the relay associated with the floor call button. Once the reader has been activated the guest would press the call button. The MCC relay activation time can be controlled via a dip switch on the controller. Refer to the MCC controller wiring diagram.

The MCC controller is housed in a NEMA 12 enclosure measuring 8"x8"x4" which is designed to mount on top of the elevator car. The maximum distance between the Saflok card reader and the MCC controller is 15'. Saflok has a "Go Far" option available if the MCC needs to be mounted in the machine room. Up to 2 card readers can control one MCC controller.
