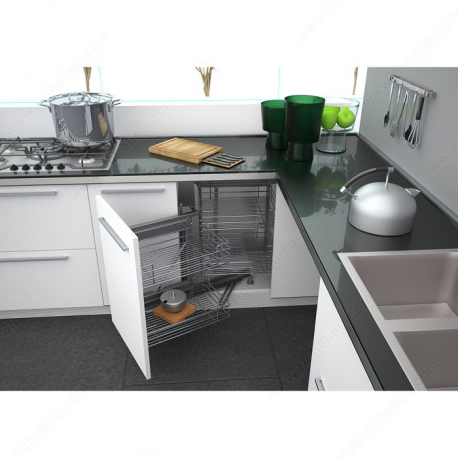

Richelieu 203503100 Smart Corner III Frame, Left Opening View larger

Richelieu

Richelieu 203503100 Smart Corner III Frame, Left Opening

203503100

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$686.75

Details: Richelieu 203503100 Smart Corner III Frame, Left Opening

Frame for a door-mounted corner cabinet sliding system. This frame features a soft-closing mechanism.

Features

  • Full-extension slide equipped with a soft-closing mechanism for complete access and smooth operation.
  • Load capacity of 77 lb (35 kg).
  • Adjustable height and width.
  • Can be mounted to the bottom to the top and bottom or to the back panel of a cabinet.
  • An excellent balance between quality and price.
  • Cabinet adjacent to opening side must not exceed 100 mm or the mechanism will not work. Please see the technical drawing.
  • Mounting screws not included.

Specifications

Opening
Left Side
Interior Dimensions Required - Width
860 to 1 168 mm
Interior Dimensions Required - Depth
470 to 505 mm
Interior Dimensions Required - Height
Min. 560 mm
Load Rating
Max. 35 kg
Finish
Gray
Cabinet Type
Frameless Cabinet
Material
Metal
Door Width
450 to 600 mm
Opening Width Required
410 to 560 mm
Solutions
Corner Cabinets
Area of Activity
Food Storage Storage Preparation
INCLUDED PRODUCT(S)
Frame slides and mounting instructions.

Applications

  • Corner cabinets.
