Reduced price! Rixson 127 Heavy Duty Offset Hung Floor Closers

View larger

Rixson 127 Heavy Duty 3/4" Offset Hung Floor Closer, Single Acting

Model: 127-90-LH-S180WSP

Handing: Left Hand
Finish: White Suede Powder Coat

edit options

Write a review

Item normally ships out within 7-10 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Also Buy :

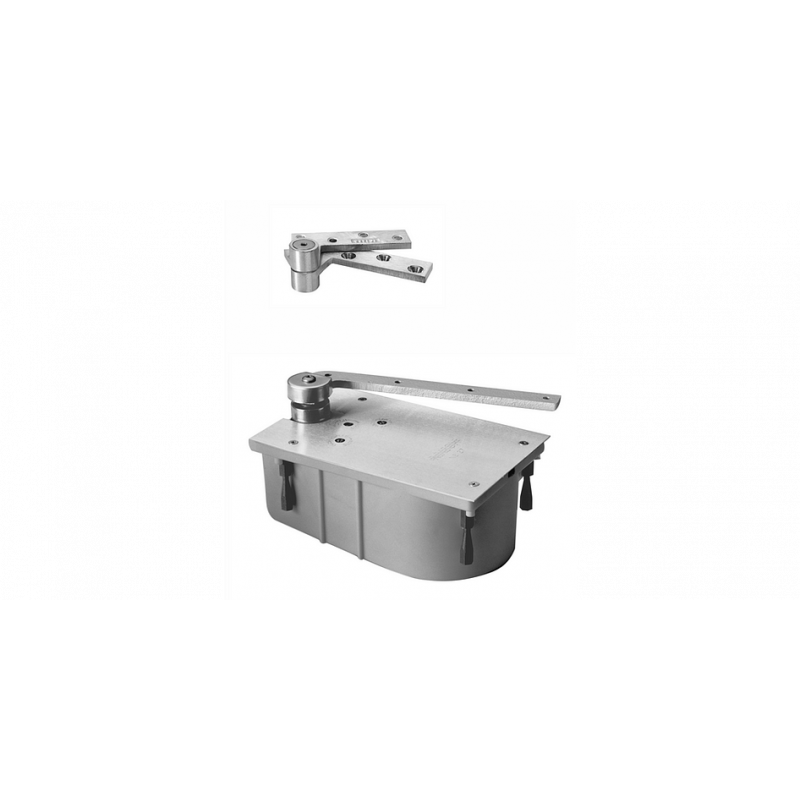

Details: Rixson 127 Heavy Duty 3/4" Offset Hung Floor Closer, Single Acting

The 127 is a 3/4" offset-hung floor closer for interior or exterior doors, designed for deep reveal door frame installation.

Features

Single acting, handed
Exterior or interior doors
180 top pivot included
Deep reveal applications
M19 intermediate pivot(s) recommended for non-fire rated opening (order separately)
Built-in positive dead stop prevents doors from swinging beyond the desired opening degree; specify 85°, 90°, 95° or 105°
Available non-hold open (N) or selective hold open (S) at same degree as dead stop
Separate and independent valves for closing speed, latch speed, and backcheck
Available with floor plate or threshold installation
Cycolac, rust-proof cement case
For arch top doors or applications where a 180 top pivot cannot be used, supply at least two M190 load-bearing intermediate pivots, mounted together at the top of the vertical edge (do not use 119 intermediate pivot)
Extended spindles available in 1/2" increments up to 2" longer than standard
Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot; each additional 30" (762mm) warrants another intermediate pivot
Door width up to 4' 0" (1219mm)
Door weight up to 250lbs.

Benefits

Closer has a tapered spindle and uses a unique bottom arm to allow door installation
Heavy-duty closer constructed with robust materials and internal components for long life and consistent operation
Heavy-duty hardened one-piece steel spindle designed to provide positive dead stop
Built-in positive dead stop prevents door from swinging beyond the desired opening degree
Multiple valves provide precision adjustment and enhanced control
Weight of door is supported by floor closer
Aesthetically appealing way to support and control the door

Certifications

Buy American Act
Certain models UL Listed (F prefix)
Certain models meet ANSI A117.1 (PH prefix)
Trade Agreement Act (TAA)

Downloads

Rixson Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
127-95-LH-NLAP626	Left Hand,
127-85-RH-N180WSP	Right Hand, White Suede Powder Coat
127-90-RH-N180622	Right Hand,
127-95-LH-S180625	Left Hand,
127-85-RH-N613E	Right Hand, Dark Oxidized Satin Bronze
127-85-RH-S180626	Right Hand,
127-85-LH-N180622	Left Hand,
127-85-LH-NLAP625	Left Hand,
127-95-RH-NLAP622	Right Hand,
127-95-RH-NLAP180625	Right Hand,
127-105-RH-N180611	Right Hand,
127-95-LH-NLAPBSP	Left Hand,
127-105-LH-SLAP611	Left Hand,
127-90-LH-NLAP180WSP	Left Hand, White Suede Powder Coat
127-90-LH-SLAP180605	Left Hand,
