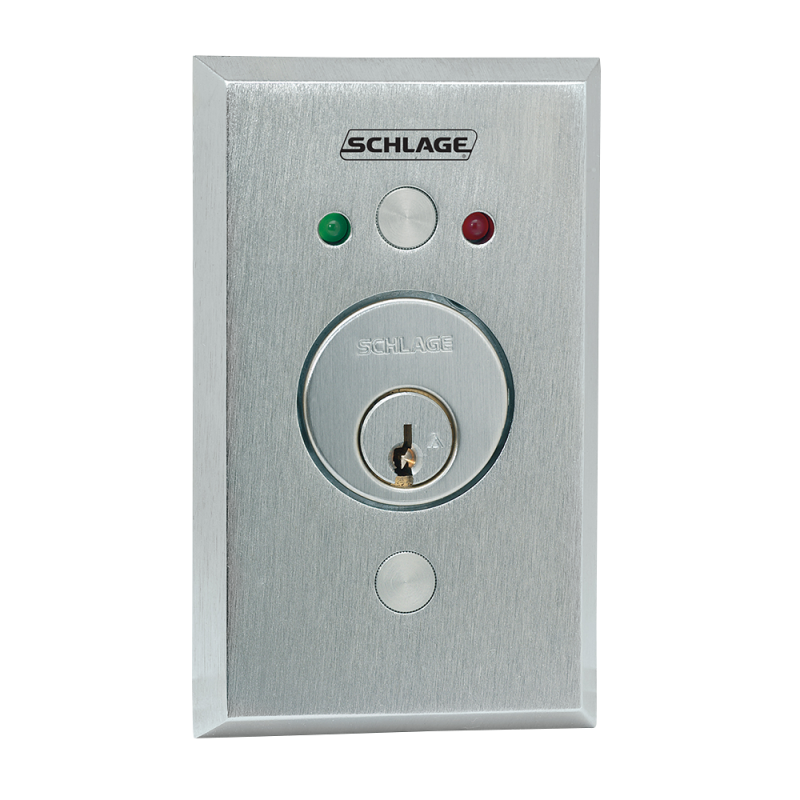

Reduced price! Schlage 650 Series Heavy Duty Keyswitch View larger

Schlage Commercial

Schlage 650 Series Heavy Duty Keyswitch

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$234.81

40% Off

$391.35

Details: Schlage 650 Series Heavy Duty Keyswitch

Schlage 650 Series keyswitches utilize an innovative magnetic spring design which allows installers to configure both clockwise and counterclockwise key turn direction as well as momentary or maintained action in seconds. Single gang and narrow stile faceplates are available with numerous options which include heavy-duty plate, weather-resistant cover (single gang size only), 2 LED lights - green/red, anti-tamper switch and Schlage Everest 29 cylinder. They operate with a 1-1/8" to 1-1/2" cylinder having a straight type cam. Dual voltage in single gang and double pole models.

Features

  • Patented magnetic spring design allows installers to configure momentary to maintained action in seconds
  • Available options include red/green LED lights, anti-tamper switch and Schlage Everest cylinder
  • Available water-resistant cover
  • Single pole, double throw or double pole, double throw in both maintained and momentary action with a variety of combinations
  • Standard 630 satin stainless steel plate with additional finish options on heavy-duty zinc plate
  • Standard or narrow stile cover options
  • 650 Series keyswitches require a 1-1/8", 1-1/4", 1-3/8" or 1-1/2" mortise cylinder having a straight type cam and a blocking ring for 1-1/4" or longer cylinders. Optional Schlage Everest cylinders are 1-1/4" and come with a 1/8" ring.
  • 5 amp @ 30 VDC
  • SPDT contacts
  • ATS switch closes when cover is on 0.025A@28VDC
  • LED indicator lights operate at 12/24 VDC 0.500A @ 30VDC
  • UL 294 Listed

Specifications

653-04
SPDT maintained single direction
653-05
SPDT momentary single direction
653-14
DPDT maintained single direction
653-15
DPDT momentary single direction
653-1414
(2) DPDT maintained bi-direction
653-1415
DPDT maintained x DPDT momentary
653-1515
(2) DPDT momentary bi-direction
653-041
SPDT maintained x key remove one position
653-0404
(2) SPDT maintained bi-direction
653-0405
SPDT maintained x SPDT momentary
653-141
DPDT maintained x key remove one position
653-0505
(2) SPDT momentary bi-direction

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
