  6. SDC EP499 Explosion Proof Exit Mushroom Switch, Momentary (MO), SPDT

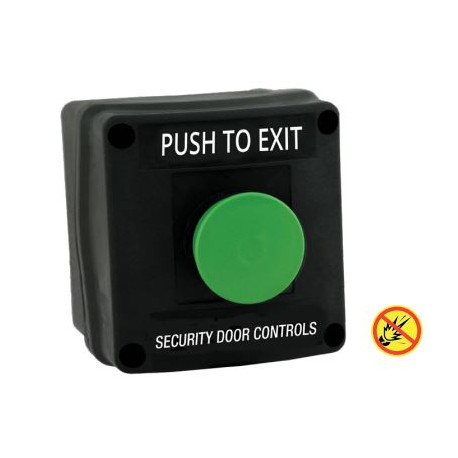

Reduced price! SDC EP499 Explosion Proof Exit Mushroom Switch View larger

Security Door Controls

SDC EP499 Explosion Proof Exit Mushroom Switch, Momentary (MO), SPDT

EP

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$2,147.25

25% Off

$2,863.00

Details: SDC EP499 Explosion Proof Exit Mushroom Switch, Momentary (MO), SPDT

SDC's EP499 series explosion proof mushroom button exit switches are specifically designed for applications where flammable vapors are cause for concern, like clean room, chemical plant, or refinery environments by eliminating the sparks or arc in the exit switch.

For use in hazardous and corrosive environments:

  • Class I, Zone 1, AEx de IIC T6...T4 Gb / Ex de IIC T6...T4 Gb × Zone 21, AEx tb IIC T85°C...T135°C Db IP66 / Ex tb IIC T85°C...
  • T135°C Db IP66 X
  • Class I, Division 2, Groups A, B, C, D
  • Class II, Division 2, Groups E, F, G
  • Class III UL50, 50E, 508, UL60079-0, -1, -7,-31
  • Type 3, 4, 4X, 12, 13

This unit is intended to be used in the following atmospheres: acetone, ammonium hydroxide, ATSM fuel C, benzene, methylethylketone, diethyl-ether, 2-nitropropane, ethyl-acetate, furfural, normal hexane, methyl alcohol.

Maximum ambient temperature is not to exceed 150° F (60° C). For supply connections, use a suitable wire with a minimum insulation temperature rating of 167° F (75° C).

Features

  • Impact Resistant Non-Metalic Antistatic Material
  • No moving parts, virtually maintenance free
  • Corrosion Proof with F1 UV Protection
  • 1.5" Mushroom Button (Green or Red)
  • Silicone Gasket on Enclosure and Actuator
  • Explosion Protected Contact Blocks
  • Clearance for 3/4" Bottom Feed NPT Fitting

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Certification

  • UL Classified for Hazardous Locations
  • IEC Rating DC60V 5A DC-13

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
EP499 Green
EP499-R Red
