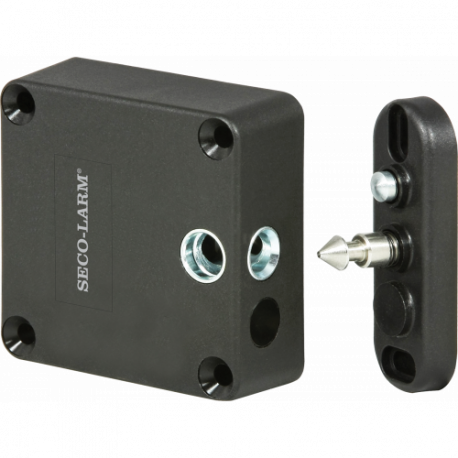

SECO-LARM CL-210M-U3BQ Motorized Cabinet Lock

Model: CL-210M-U3BQ

Write a review

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: SECO-LARM CL-210M-U3BQ Motorized Cabinet Lock

The SECO-LARM Motorized Cabinet Lock provides security for lockers, cabinets, cases, and drawers. The built-in lock and door status sensors and fail-secure operation offer additional security. The Motorized Cabinet Lock's small size and compatibility with existing keypads or readers allow for various installations.

Features

Electronically secure lockers, cabinets, cases, and drawers
Lock status sensor allows for monitoring whether the lock is engaged
Door status sensor allows for monitoring whether the door is closed completely
Compatible with existing keypads or readers
Spring feature gently pushes door open
Fail-secure operation
Various mounting positions
12-28 VAC/VDC Operating voltage
Low current draw:69mA,12/24 VDC (standby), 165mA,12/24 VDC (active)
220-lb (100kg) Holding force
Two locking orientations

Specifications

Operating Humidity: 0-95 percent Non-condensing
Dimensions: Lock body: 2-3/8"x2-3/8"x7/8" (60x60x22 mm), Rosette: 13/16"x2-3/8"x1-1/16" (20x60x27 mm)
Holding Force: 220-lb (100kg)
Operating Voltage: 12-28 VAC/VDC
Current Draw: Standby: 69mA,12/24 VDC, Active: 165mA,12/24 VDC
Housing material: Polyamide
Operating Temperature: 14 degree-113 degree F (-10 degree-45 degree C)
Weight: 3-oz (93g)
Relock Delay: 2-5 Seconds

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
