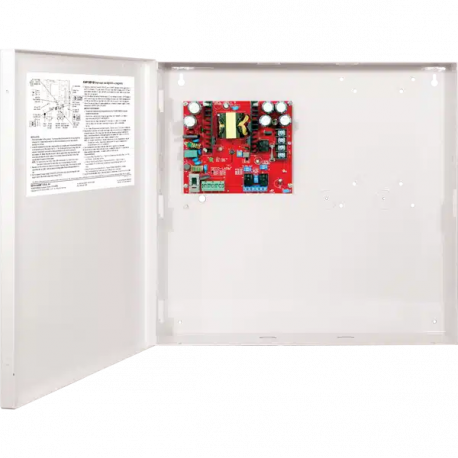

SECO-LARM EAP-5D1Q Access Control Power Supply, 1 Output, 5A Total

Model: EAP-5D1Q

Write a review

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: SECO-LARM EAP-5D1Q Access Control Power Supply, 1 Output, 5A Total

The SECO-LARM EAP-5D1Q power supply is specifically designed for an access control system's electronic locks and accessories. The power supply centralizes the power sources of access control equipment. It includes two supervision relays that can be used to integrate with other systems such as an alarm control panel. Robust fault response and indication also includes gradual shutdown on output overload as well as immediate shutdown on output short, signaled by flashing red LED and with auto-recovery once output short or overload is removed.

Features

AC Power failure supervision relay
Battery failure / low battery supervision relay
Auxiliary output relay
Relays rated 3A@24VDC, 3A@120VAC
Adjustable voltage range to compensate for voltage drop
Built-in backup battery charger (battery not included)
Selectable 2.2k 9 End-of-Line (EOL) resistor for AC failure and battery failure supervision relays via DIP switch
Selectable delay timer (5 seconds, 5 minutes, 5 hours) for AC failure supervision relay via DIP switch
LED Status indicator for AC input, DC output and channel outputs
Field selectable for 12VDC or 24VDC output
Operating Input voltage: 110-240 VAC
Field-selectable 12 or 24 VDC output
Total continuous output current: 5A@12VDC, 2.5A@24VDC
AC Input fuse rated at 3.15A
Heavy-duty steel case with ventilation holes
Enclosure large enough to fit two (2) 12V/12Ah batteries
Removable steel cover for easy access to power connections
6ft Power cord and battery leads included
Dimensions: 1413/16"x145/16"x41/8" (377x363x105 mm)

Specifications

Input Voltage: 110-240VAC
Output Voltage: 12 or 24VDC selectable via DIP switch
Adjustable Output Voltage Range: 12-13 @ 12VDC setting, via VR switch, 23-25 @ 24VDC setting, via VR switch
Number of Outputs: 1
Total Supply Current: 5A@12VDC / 2.5A@24VDC
Input Fuse Rating: 3.15A ( glass fuse, AC)
LED Status Indicator: AC input ( Green ), DC Output ( Red )
End-of-Line Resistor (EOL): Selectable ON ( 2.2K") or OFF via DIP switch
AC-Fail Relay Delay Timer: Selectable @ 5sec, 5min or 5hr via DIP switch
Supervision Relays: Contact Rating: 3A@24VDC Dry Relay Output

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
