  6. SECO-LARM LD Loop Detector

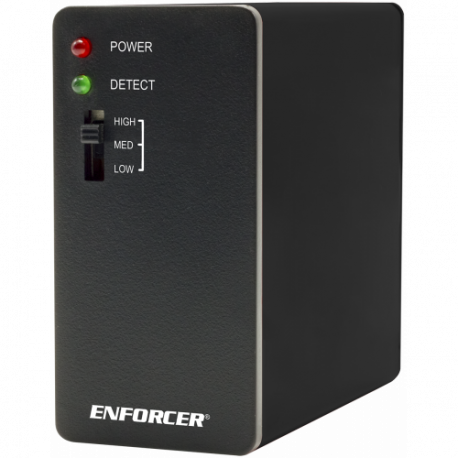

LD-1123-PAQ_black_Final-500x500.png View larger

SECO-LARM

SECO-LARM LD Loop Detector

LD-1123-PAQ

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$61.25

Details: SECO-LARM LD Loop Detector

The LD-1123-PAQ Loop Detector is designed to be used with gates or other vehicle detection systems. The unit connected to an input loop which is buried in the pavement. If a vehicle is over the input loop, the detector sends a signal to perform such actions as opening a gate, holding a gate open, or indicating that a vehicle is in a bay.

Features

  • Single loop input
  • 3 Adjustable sensitivity settings
  • 2 Form "C" relay outputs
  • 11-Pin connector
  • ABS plastic housing
  • Power-on automatic reset
  • Automatic drift compensation for varying environmental conditions
  • Auto fault detection
  • Weather-resistant (IP54)
  • Terminal block (LD-ACC-TB) included
  • Also Available: Wire Harness (LD-ACC-WH)

Specifications

Sensitivity
3 levels of sensitivity
IP Rating
Weather-resistant IP54
Type
Loop Detector
Current Draw
Standby - 40mA:12VDC / 40mA:24VDC, Active - 50mA:12VDC / 60mA:24VDC
Loop induction range
80-300 Microhenry
Operating Voltage
12-24 VAC/VDC
Reaction time
100ms
Vehicle detection mode
Combines relays 1 and 2 to detect vehicle presence, with pulse on entry
Presence output
Temporary (triggers relay 1 as long as vehicle is in the loop, times out after 5 minutes)
Pulse output
Pulses relay 2 on entry
Fault output
Relay 2 is continually energized and the green LED stays on
Pulse output time
200ms
LEDs
Red - Power indicator, Green - Status indicator (vehicle detected or fault)
Input / Output protection
Built-in surge and transient protection
Case material
Black ABS plastic
Operating Humidity
Up to 95 percent without condensation
Operating Temperature
-40 degree-149 degree F (-40 degree-65 degree C)
Dimensions
2-15/16"x1-7/16"x3-5/16" (74x36x85 mm)
Weight
7.2-oz (203g)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
LD-ACC-WH
LD-1123-PAQ
