  6. SECO-LARM SK-910RAVQ 1-Channel, 315MHz, Miniature RF Receiver with Transistor Ground Output

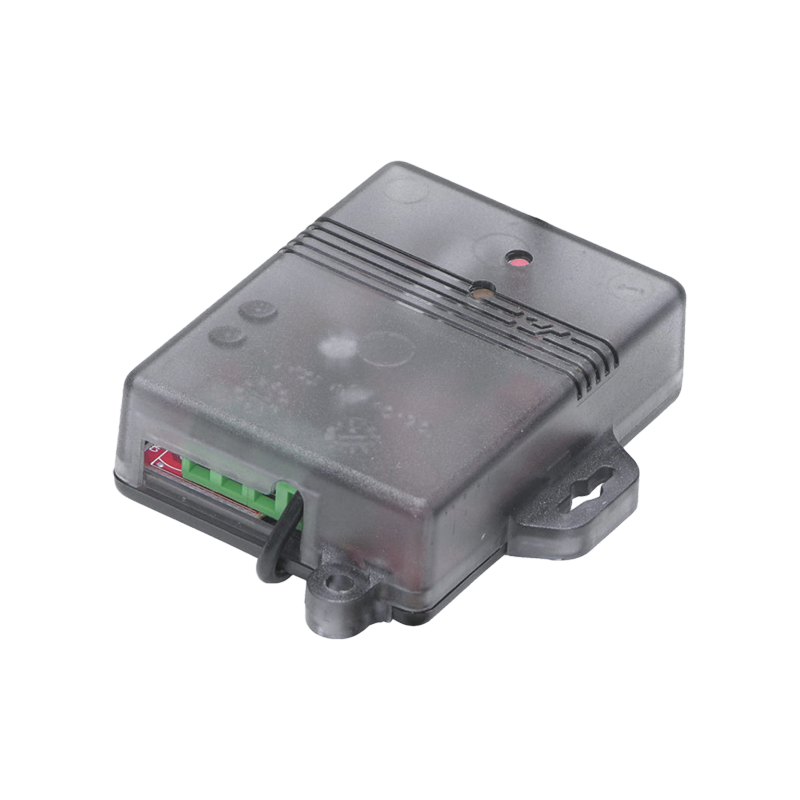

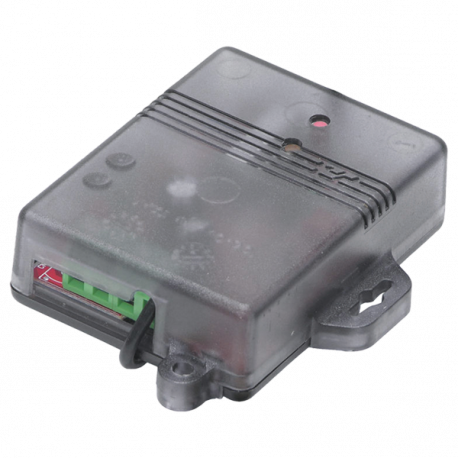

SECO-LARM SK-910RAVQ 1-Channel, 315MHz, Miniature RF Receiver with Transistor Ground Output View larger

SECO-LARM

SECO-LARM SK-910RAVQ 1-Channel, 315MHz, Miniature RF Receiver with Transistor Ground Output

SK-910RAVQ

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$30.70

Details: SECO-LARM SK-910RAVQ 1-Channel, 315MHz, Miniature RF Receiver with Transistor Ground Output

This mini RF receiver is compatible with both code hopping and fixed-code 315MHz ENFORCER transmitters (see page 4 of the manual for a list of compatible transmitters). It can be used for a variety of applications, such as allowing the same transmitter to open/close a gate and open/close a garage door. The receiver comes in one- or two-channel versions. Each channel can learn the codes of up to 15 different transmitter buttons.

Features

  • Small size: 33/16"x29/16"x3/4" (80 × 65 × 19 mm)
  • Control garage doors, etc.
  • Four programmable relay output modes: 4-second momentary, 1-second momentary, toggle, and validity outputs
  • Flexible operating voltage: 3-13.8 VCC
  • Compatible with all 315MHz ENFORCER transmitters, including both fixed-code and code-hopping (CODEBUMPTM)
  • 433MHz (433.92MHz) available
  • LED Indicates RF reception, learn mode entered, transmitter learned, and memory cleared
  • Mode switches for easy transmitter learning

Specifications

Type
WIRELESS - 1-Channel Miniature RF Receiver with Transistor Ground Output
Operating voltage
3-13.8 VDC
Output Mode
Transistor ground, 5A
Current Draw
5mA standby, 15mA LED flashing @ 12VDC
Transmitter
Compatible with all ENFORCER 315MHz transmitters
Dimensions
3-3/16" x 2-9/16" x 3/4" (80 x 65 x 19 mm)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
