  3. SECO-LARM SR-2212-C5AQ Relay Modules - 12/24VDC Trigger Voltage, One 5A Form C DPDT Relay
SECO-LARM SR-2212-C5AQ Relay Modules - 12/24VDC Trigger Voltage, One 5A Form C DPDT Relay View larger

SECO-LARM

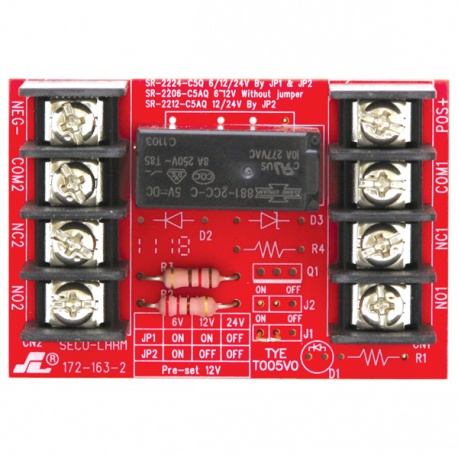

SECO-LARM SR-2212-C5AQ Relay Modules - 12/24VDC Trigger Voltage, One 5A Form C DPDT Relay

SR-2212-C5AQ

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$11.25

The minimum purchase order quantity for the product is 24

Details: SECO-LARM SR-2212-C5AQ Relay Modules - 12/24VDC Trigger Voltage, One 5A Form C DPDT Relay

Features

  • 12/24VDC Trigger Voltage, One 5A Form C DPDT Relay
  • For any application where relays are required
  • Pre-mounted to easy-to-install modules
  • Screw terminals allow easy installation without soldering or other time-consuming connections
  • Wide-selection of additional relays is available: Choose single or dual relays, low-current or heavy-duty operation, and high-sensitivity or normal-sensitivity

Specifications

Operating Voltage
12/24 VDC
Trigger Voltage
12/24 VDC
Voltage Selection
Jumper
Relay Type
DPDT
Relay Ratings
5A
No. of Relays
1
Current Draw
70mA@12/24VDC
Dimensions
2-3/4" x 1-7/8" x 3/4" (70 x 48 x 20 mm)
Weight
2-oz (55g)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
