  5. Slaon WEUS-7005.1410 SU-7009 Small Urinal Fixture w/ G2 Optimus Plus 8186-0.5 Flushometer

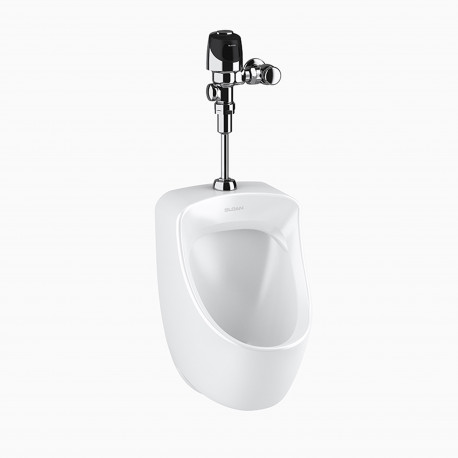

Reduced price! Slaon WEUS-7005.1410 SU-7009 Small Urinal Fixture w/ G2 Optimus Plus 8186-0.5 Flushometer View larger

Sloan Valve Co.

Slaon WEUS-7005.1410 SU-7009 Small Urinal Fixture w/ G2 Optimus Plus 8186-0.5 Flushometer

WEUS-7005.1410

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$779.77

35% Off

$1,199.65

Details: Slaon WEUS-7005.1410 SU-7009 Small Urinal Fixture w/ G2 Optimus Plus 8186-0.5 Flushometer

FLUSHOMETER FEATURES

  • Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
  • "Low Battery" Flashing LED
  • Flex Tube Diaphragm designed for improved life and reduced maintenance
  • Engineered Metal Cover with replaceable Lens Window
  • Four (4) Size AA batteries included
  • Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
  • Courtesy Flush® Override Button
  • 3⁄4" I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap
  • Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
  • PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass

FIXTURE FEATURES

  • White Vitreous China
  • Washdown flushing action
  • Integral flushing rim
  • ¾" I.P.S. top spud inlet
  • 2" NPT outlet flange
  • Vandal resistant strainer assembly included
  • All mounting hardware included
  • 100% factory flush tested

Specifications

Flush Volume
0.5 gpf (1.9 Lpf)
Nominal Dimensions
14 ¾" × 14 3/16" × 23 ½" (375 × 360 × 597mm)
Compliances and Certifications
ADA Compliant, BAA Compliant, BREEAM Materials Credit, BREEAM Water Credit, Carbon Neutral, cUPC Green Certified, UL Certified, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, LEED V4 Water Efficiency Credit, Satisfies LEED Credits, WELL Building Standard

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
