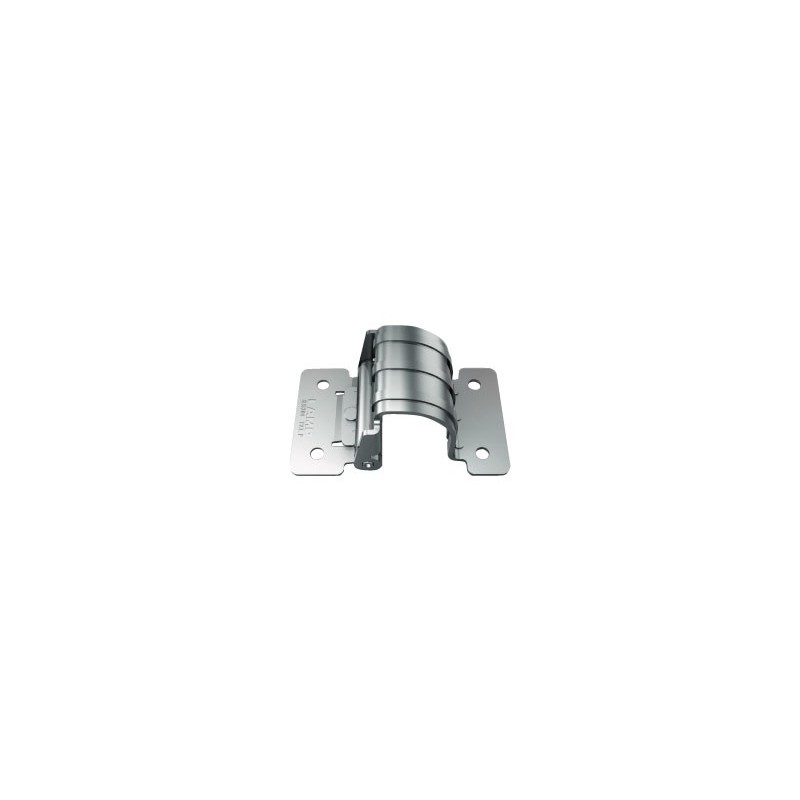

Sugatsune HG-TU Cabinet Concealed Torque Hinge View larger

Sugatsune

Sugatsune HG-TU Cabinet Concealed Torque Hinge

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$27.50

Details: Sugatsune HG-TU Cabinet Concealed Torque Hinge

Features

  • Installation on the back side of the door
  • Can be used both for horizontal and vertical applications
  • Not suitable for high frequency use
  • Do not lubricate
  • For indoor use only

Specifications

Material
430 Stainless Steel
Weight of Item (g)
50
Length or Depth of Item when closed (in)
2.6875
Height of Item (in)
1.1875
Width of Item (in)
1.625
Max. Torque (lbs-in/ea)
3.1
Holes
4
Max. Opening Angle (degree)
90
Are Fasteners Required
Y
Fasteners Type
4mm or 8 self tapping screw
Is RoHS Compliant
RoHS 2

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
HG-TU3
HG-TU7
