Reduced price! Zephyr ZP100WR e-Smart Ultra Wireless Networkable Lock, Ultra One Touch

View larger

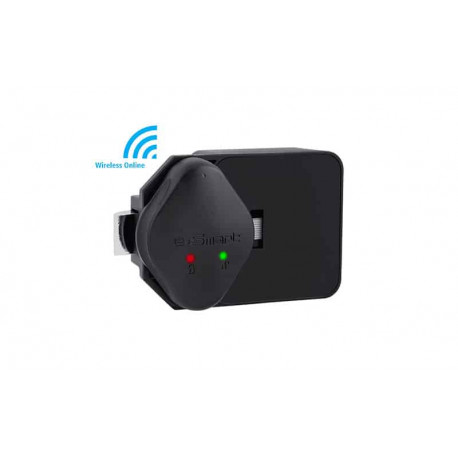

Zephyr ZP100WR e-Smart Ultra Wireless Networkable Lock, Ultra One Touch

Model: ZP100WR-

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Zephyr ZP100WR e-Smart Ultra Wireless Networkable Lock, Ultra One Touch

e-Smart Ultra System, which consists of locks, transmitters (access point device), and a server/client program, is a wireless online lock system integrated with wireless controlling and monitoring functions combined with e-Smart Classic offline lock. e-Smart Ultra System provides, in addition to the advantage of our offline lock system, the real-time monitoring of lock occupancy and status (battery, unauthorized opening) and remote controlling functions while removing the complicated wiring installation hassle. e-Smart Ultra one touch lock (Model - ZP100WRN) has all the features from offline lock ZP100 and wireless online communication with access point (AP200).

Features

High impact polycarbonate/Metal housing & waterproof case (IP55)
Aluminum die-casting locking mechanism Spring Latch & Deadbolt
Up to 150 lock history events as default (Offline)
Online audit trail
Simple installation eliminating heavy work and cost
Flexible locker relocation
No risk of entire system suspension on the occasion of mal-function of the Server thanks to battery operated independent lock operation from the Server
Free selection (Shared use) or assigned mode (Permanent use)
Single user for multi lockers or multi users per single locker
Exclusive technology of RF card and smartphone synchronization
User friendly mobile App makes lock operation convenient and simple
Automatic door opening at programmed time
Set a time limit on the lock and/or user card
Simple lock programming change or upgrade firmware using RF card. No other programming devices required.
Simple integration into other data systems (access control etc)
Real-time status monitoring of individual lock or all locks.
Battery status, lock occupancy, alarm, lock event history etc..
Available with Free selection or Assigned Mode.
Entire or partial door opening/closing controlled by central server PC.
Remote openings/closings (Individual lock, all locks, selected group of locks)
Remote blockings (Selected Card access blockings, Selected Lock access blockings)
Card type, Wristband type, keychain type, etc. can be used.
Approximately 15,000 cycles
Unique security key by AES128 security algorithm
FCC, CE, KC Certified, and ADA Compliant
Close and Open by 13.56Mhz Mifare RF Tag.

Specifications

Color: Black / Silver
Power: 6V (1.5V AA Battery × 4pcs)
Operation Frequency: 13.56MHz
Protocol Supported: ISO14443 Type A/B, Felica, Mifare Classic / Ultralight / DESfire NFC smartphone, and other types of RF cards are available with reconfiguration
Communication with Transmitter: 2.4Ghz Wireless
Case Material: Polycarbonate / Metal
Operating Temperature: -10 Degree Celcius - 60 Degree Celcius

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
