Reduced price! 40556REC.jpg View larger

ABH Hardware

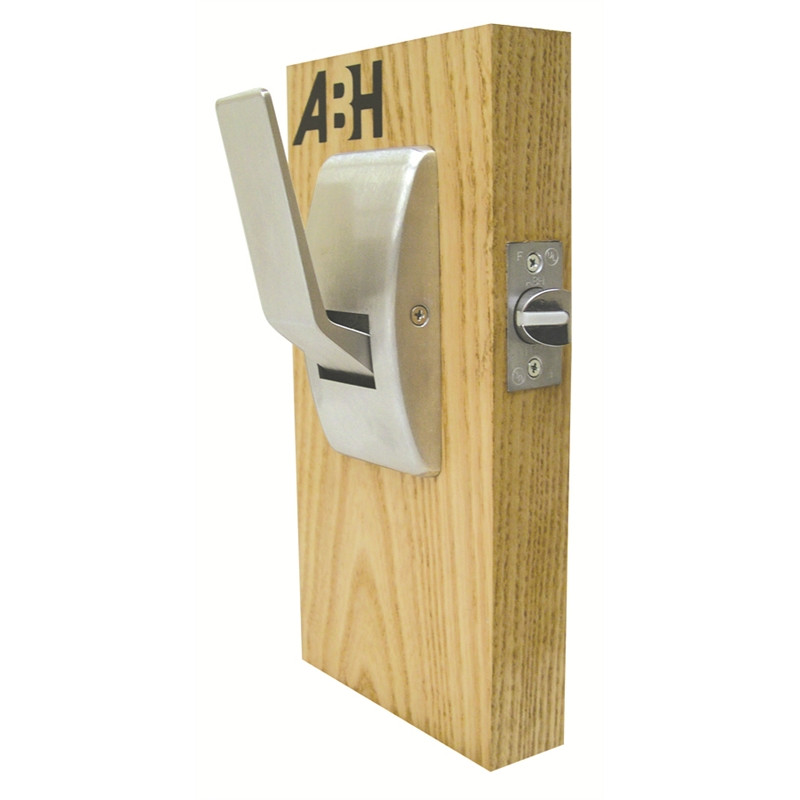

ABH Hardware 6800 Series Low Profile Hospital Push Pull Latch With Cylindrical Lock

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$166.20

40% Off

$277.00

?
?

Details: ABH Hardware 6800 Series Low Profile Hospital Push Pull Latch With Cylindrical Lock

6800 Low Profile Hospital Latch

Low Profile Cylindrical Hospital Latch

Features

  • Cylindrical latch application - passage function
  • 1-3/4" standard door thickness (specify if different)
  • Meets ADA requirements
  • Trim is mounted using four thru-bolts for maximum stability
  • Handing of unit is field-reversible by easily reversing the cam holder assembly on the backside of the unit
  • Linear acting cam which provides for a smoother operating unit
  • One continuous spring provides a smoother operation and an extended life for the unit
  • UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" × 8'0"
  • 1/2" Latch Bolt Throw
  • Average weight per unit = 4.75 lbs
  • Patent# 7,258,374 & Addition Patents Pending

Options

"AM" Anti
Microbial Coating
"L"
Lead-Lined
"PL"
Entrance Only
"PS"
Exit Only
Undefined
undefined
"EX"
Extended Handle
"X"
Slip-On Handle Extension
"RC"
Round Cover
"SEC"
Fasteners
"THICK"
Special Door Thickness
"P"
Engraved Handles "PUSH" or "PULL"

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
6814LH2 US10BT Left Handed, Push Down,Pull Down, 2 3/4", Dark Bronze, T-Strike
6819RH2 US32T Right Handed, Push Down,Pull Down, 2 3/4", Bright Stainless Steel, T-Strike
6814LH2 US10BA Left Handed, Push Down,Pull Down, 2 3/4", Dark Bronze, ASA
6819RH2 US32A Right Handed, Push Down,Pull Down, 2 3/4", Bright Stainless Steel, ASA
6814LH2 US4T Left Handed, Push Down,Pull Down, 2 3/4", Satin Brass, T-Strike
6819RH3 US32DT Right Handed, Push Down,Pull Down, 3-3/4", Satin Stainless Steel, T-Strike
6814LH2 US4A Left Handed, Push Down,Pull Down, 2 3/4", Satin Brass, ASA
6819RH3 US32DA Right Handed, Push Down,Pull Down, 3-3/4", Satin Stainless Steel, ASA
6811LH3 US10T Left Handed, Push Down,Pull Up, 3-3/4", Satin Bronze, T-Strike
6814LH2 US26T Left Handed, Push Down,Pull Down, 2 3/4", Bright Chrome, T-Strike
6814LH2 US26A Left Handed, Push Down,Pull Down, 2 3/4", Bright Chrome, ASA
6811LH3 US10A Left Handed, Push Down,Pull Up, 3-3/4", Satin Bronze, ASA
6814LH2 US3T Left Handed, Push Down,Pull Down, 2 3/4", Bright Brass, T-Strike
6819RH3 US10T Right Handed, Push Down,Pull Down, 3-3/4", Satin Bronze, T-Strike
6811LH3 US10BT Left Handed, Push Down,Pull Up, 3-3/4", Dark Bronze, T-Strike

View All Model Numbers and Options
