Reduced price! Abloy Sentry CI_N512 Ikon eCliq Switch Cylinder View larger

Abloy Sentry

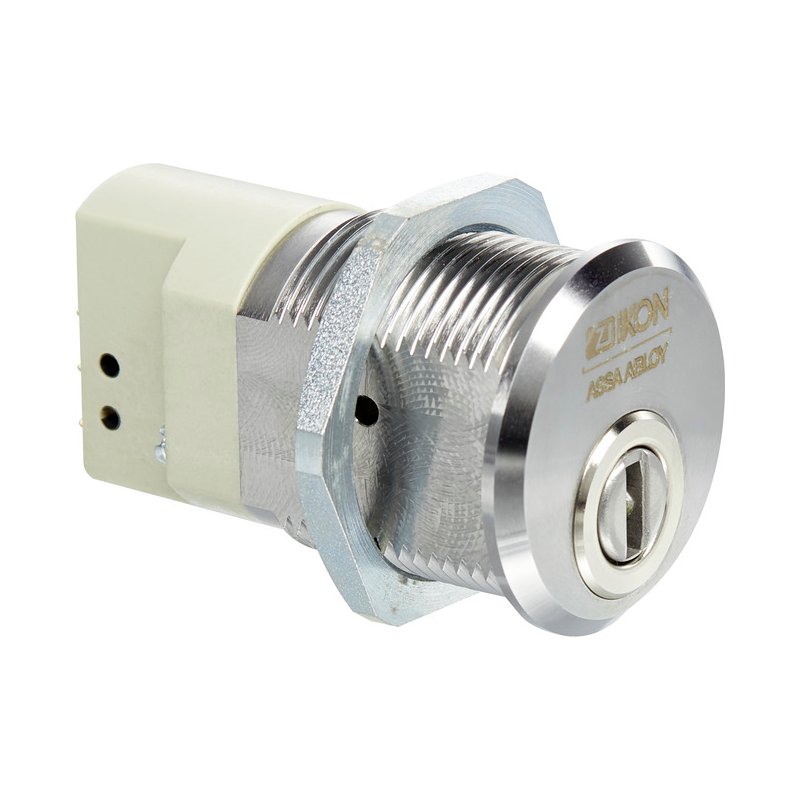

Abloy Sentry CI_N512 Ikon eCliq Switch Cylinder

CI_N512

This product is no longer in stock

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

This item has been discontinued

Details: Abloy Sentry CI_N512 Ikon eCliq Switch Cylinder

30 mm Diameter, laterally flattened to 22 mm without key

Features

  • Power is supplied exclusively via the key (no battery in the cylinder)
  • Available as electronical version (V=)
  • Switch cylinder with one key withdrawal position at 0 degree and one scanning position at 60 degree
  • Brass cylinder housing components
  • Standard finish, satin nickel-plated (OF=MV)
  • Maintenance-free for up to 200,000 cycles
  • Dust and rain cover available (SUR=1) IP55
  • Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G Ex ib IIB T4 Gb)
  • Optionally available for permanent activation of the switch VAR=RASTUNG without key withdrawal on the scanning position
  • Two microswitches F4T 7-GP UL (Burgess) (VAC 48 V/ resistive load 5A, VAC 48 V/ inductive load 0.5 A)
  • Key rotation 60 degree
  • A rotation actuates a switch device (e.g. underground car parks, etc.).
  • Splash-proof IP54
  • Fixing with M30x1.5 housing nut

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
