Reduced price! Abloy Sentry DC330 Door Closer, Size-EN1-4, Backcheck, Finish-Silver View larger

Abloy Sentry

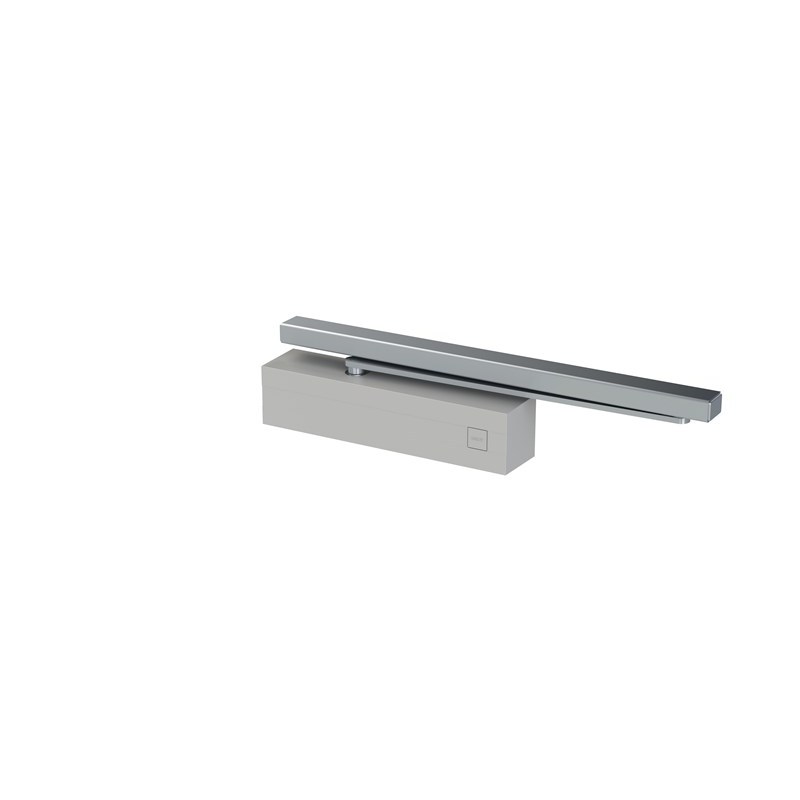

Abloy Sentry DC330 Door Closer, Size-EN1-4, Backcheck, Finish-Silver

DC330_120000

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$519.00

25% Off

$692.00

Details: Abloy Sentry DC330 Door Closer, Size-EN1-4, Backcheck, Finish-Silver

Maximum door weight is 80 kg and door leaf width 1100 mm. Used with DC195 sliding arm. Adjustable closing force size EN 1-4. Suitable for fire and smoke protection doors.

Specifications

Type of product
Door closer
Durability
500000
Mounting position
Non-hinge side, frame mounting, Hinge side, frame mounting, Non-hinge side, door leaf mounting, Hinge side, door leaf mounting
Height adjustable spindle
Yes
Technology
Cam Motion
Min closing force
EN1
Hold open function
No
Force adjustment
Yes
Max opening angle hinge side
170
Installation type
Overhead
Max closing force
EN4
Operating temperature
Minus 15 to Plus 45 degree C
Max opening angle non-hinge side
120
Fire door approval
Yes

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
