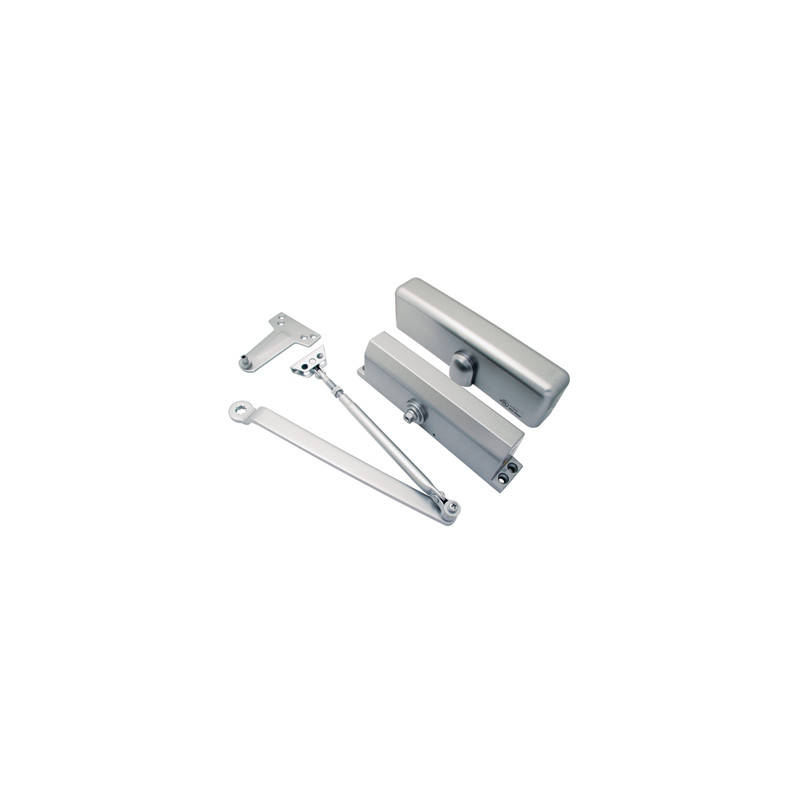

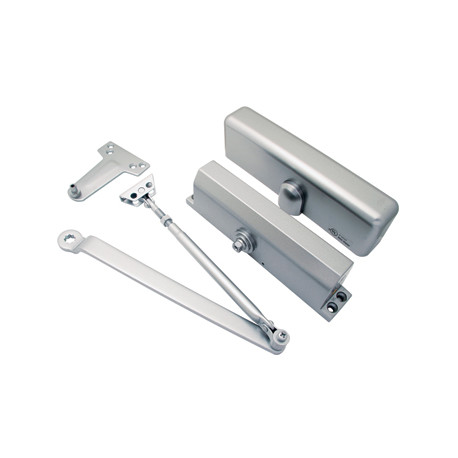

Reduced price! TownSteel TDC90 - Lite Duty Commercial Closer - Standard Arm Tri-Packed View larger

TownSteel

TownSteel TDC 90 Grade 1 Medium-Heavy Duty Door Closer, Standard Tri-Packed Arm

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$88.20

40% Off

$147.00

Details: TownSteel TDC 90 Grade 1 Medium-Heavy Duty Door Closer, Standard Tri-Packed Arm

TownSteel TDC 90 Series closers are designed for standard-duty applications. They are constructed of aluminum alloy and bring ANSI Grade 1 superior performance as all other TownSteel Grade 1 products. The TDC 90 closers offer high durability and flexibility needed to meet both commercial and institutional applications, including the ADA requirements.

Features

  • Fast and easy installation
  • All weather fluid, heavy duty cast aluminum alloy body and forged steel arm
  • Non-handed for left or right swinging doors
  • Adjustable size 2-5 or BF-4
  • 1-13/32 " diameter piston
  • Separate and adjustable latch, sweep, and backcheck valves standard
  • Adjustable backcheck and staked valves standard
  • Tri-Style installation: includes hardware and brackets to allow for regular, top jam, and parallel arm installation
  • Screw pack for metal and wood doors installation, includes sleeve nuts and bolts, self- drilling screws, wood and machine screws
  • Available in Aluminum, Duro, Black or special finish upon request

Specifications

BHMA/ANSI Grade
Grade 1 Certified, ANSI/BHMA A156.4
Handings
Non-handed
Finishes
689- Aluminum, 695- Duro, 622- Flat Black

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Available Model Numbers and Combinations

Model/SKUAttributes
TDC90AL Aluminium
TDC90DU
TDC90-BFAL Aluminium
TDC90-BFDU
